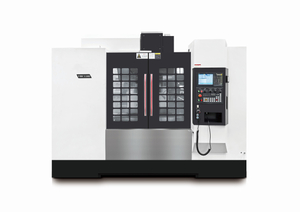

VMC1580
REFINE
FEATURE
The machine tool has a unique stable and durable rigid structure. Through repeated simulation and calculation of engineering mechanics, a stable bed structure is designed to meet the engineering needs of rigidity doubling and quality streamlining.
The machine's unique design of linear rolling guide pair (X, Y axis) plus hardened hard rail bonded plastic guide pair (Z axis) combines satisfactory precision quality. It is not only suitable for plate, plate, shell, precision parts processing, but also suitable for mold processing.
The machine comes with automatic tool exchange system (ATC), fully enclosed shield, automatic lubrication system, cooling system, portable manual operation unit (MPG).
The parts can complete milling, boring, drilling, expanding, reaming, tapping and other multi-process processing after a clamping, with a high degree of automation, strong reliability, simple operation, convenient, pleasant, the overall shape beautiful and generous, high degree of mechanical and electrical integration advantages.
Product Parameters
SPECIFICATION | UNIT | VMC850 | VMC855 | VMC1160 | VMC1370 | VMC1580 |
X/Y/Z axis | mm | 800/500/600 | 800/550/550 | 1100x600x600 | 1300x700x700 | 1500/800/700 |
Distance from spindle nose to workbench | mm | 100-600 | 120-670 | 150-750 | 100-800 | 170-870 |
The distance from the spindle centre to the column railway | mm | 550 | 590 | 660 | 795 | 783 |
Track form | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | |
Workbench size（L*W) | mm | 1000x500 | 1000x550 | 1200x600 | 1400x700 | 1700x800 |
The max.load capacity | kg | 500 | 500 | 800 | 1100 | 1500 |
Slot | No/mm | 5-18×75 | 5-18×90 | 5-18×100 | 5-18×100 | 5-18×125 |
Spindle taper hole | BT40 | BT40 | BT40 | BT40 | BT50 | |
Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 6000 |
Spindle drive mode | Belt | Belt | Belt | Belt | Belt | |
X/Y/Z axis rapid feeds | m/min | 36/36/24 | 36/36/24 | 32/32/24 | 30/30/24 | 20x20x18 |
Max.cutting feed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 |
Tool change method | Arm | Arm | Arm | Arm | Arm | |
Tool Capacity | tools | 16 | 24 | 24 | 24 | 24 |
Maximum tool weight | kg | 8 | 8 | 8 | 8/15 | 8/15 |
Fastest tool change time（T-T) | sec | 2.5 | 2.5 | 2.5 | 2.5 | 4 |
Spindle motor | kw | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18.5 |
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.007 | ±0.007 |
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 |
L*W*H | mm | 2500x2400x2600 | 2600x2400x2550 | 3200x2630x2920 | 3730x2435x3020 | 3924x2660x3020 |
Weight | kg | 5000 | 5000 | 7000 | 9500 | 11000 |
