VMC1160 FANUC CNC Vertical Machining Center

You are here: Home » Products » CNC Vertical Machining Center » VMC1160 FANUC CNC Vertical Machining Center

Share to:

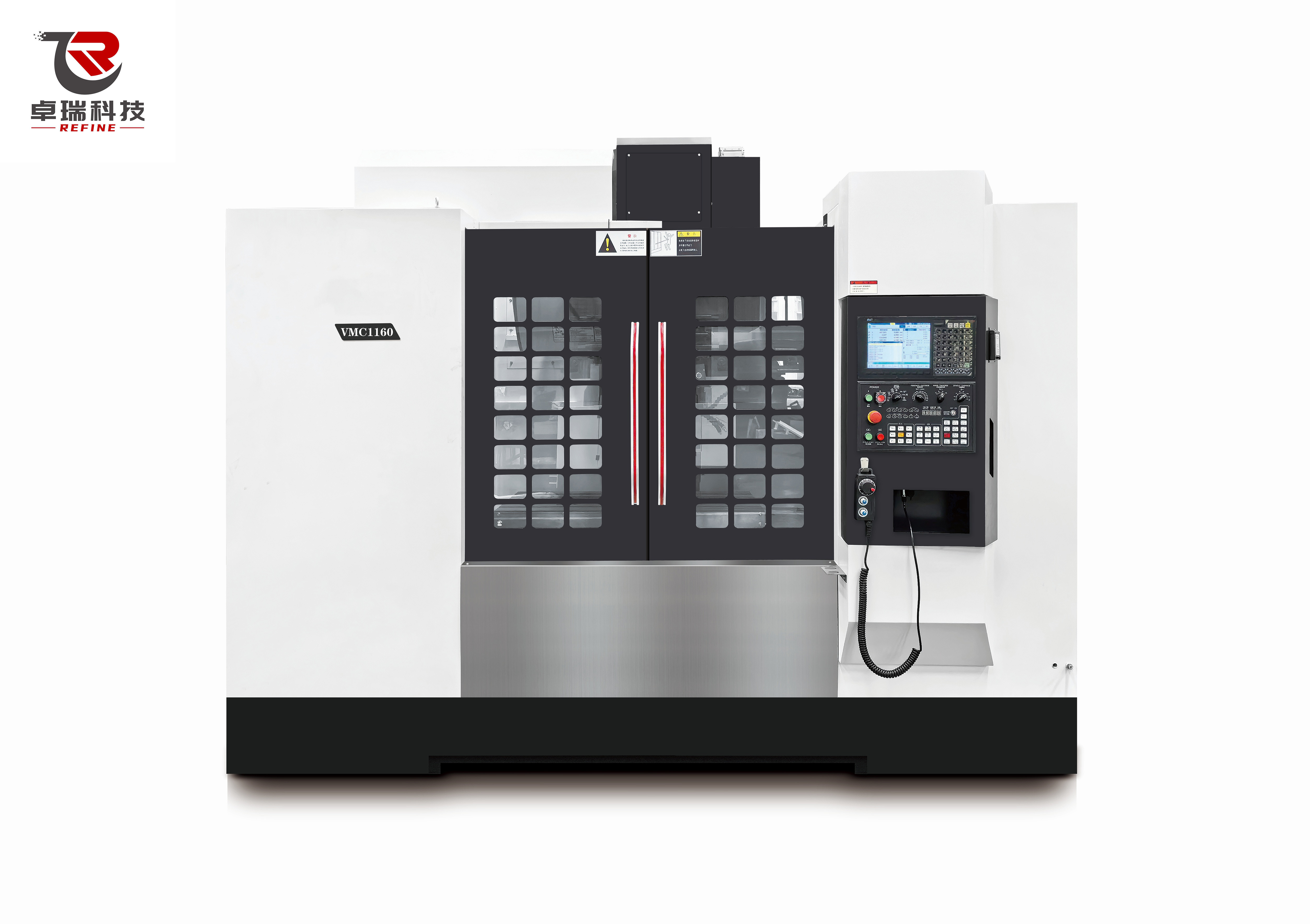

VMC1160 FANUC CNC Vertical Machining Center

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC1160
Brand:
REFNE

Product Description

Product Parameters

Advantage

Pictures

Machine tool features

The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit.

The heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models.

The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

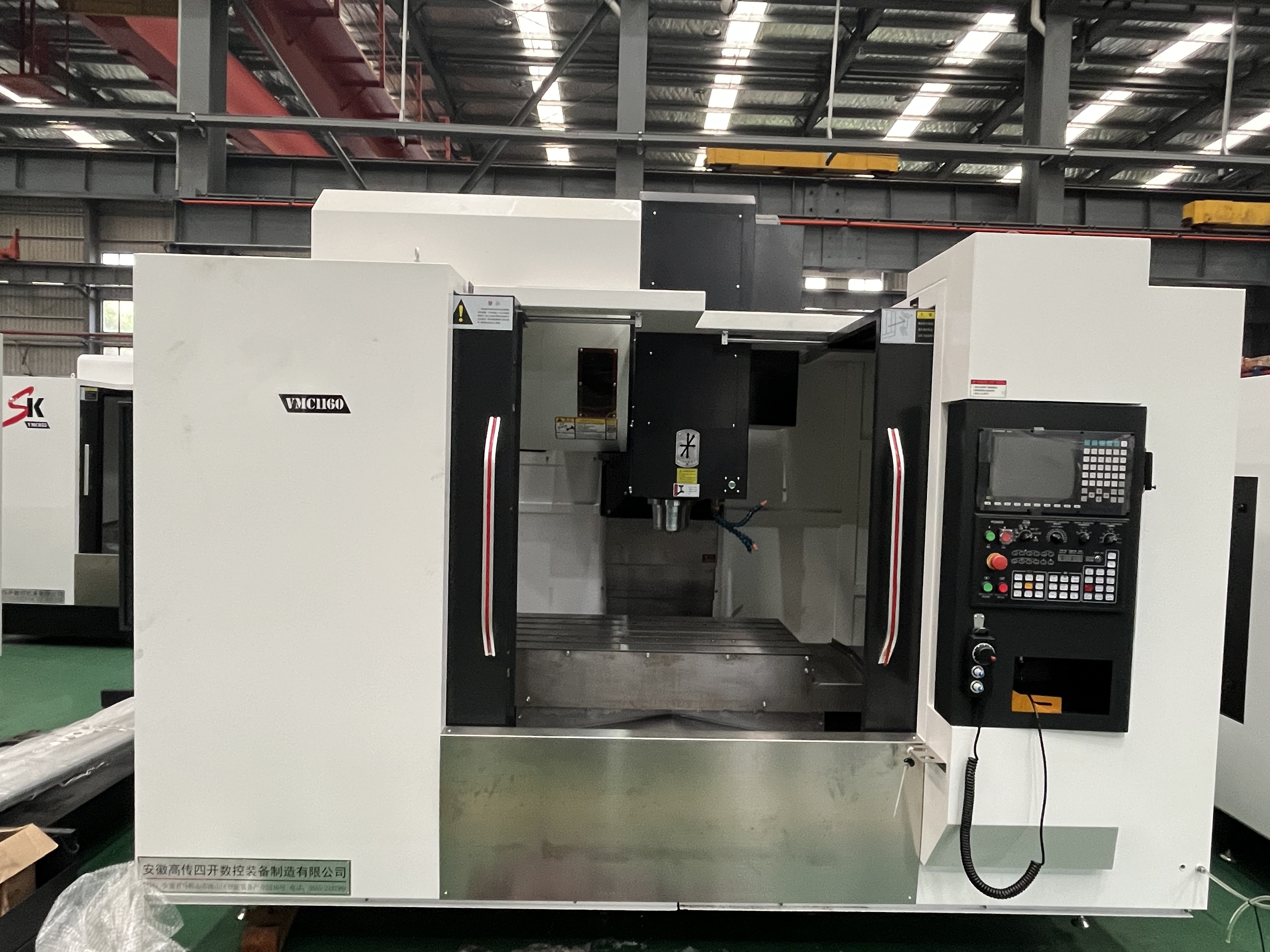

1160-2

Product Parameters

SPECIFICATION	UNIT	VMC850	VMC855	VMC1160	VMC1370	VMC1580
X/Y/Z axis	mm	800/500/600	800/550/550	1100x600x600	1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750	100-800	170-870
The distance from the spindle centre to the column railway	mm	550	590	660	795	783
Track form		XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide
Workbench size（L*W)	mm	1000x500	1000x550	1200x600	1400x700	1700x800
The max.load capacity	kg	500	500	800	1100	1500
Slot	No/mm	5-18×75	5-18×90	5-18×100	5-18×100	5-18×125
Spindle taper hole		BT40	BT40	BT40	BT40	BT50
Spindle speed	rpm	8000	8000	8000	8000	6000
Spindle drive mode		Belt	Belt	Belt	Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24	30/30/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Arm	Arm	Arm	Arm	Arm
Tool Capacity	tools	16	24	24	24	24
Maximum tool weight	kg	8	8	8	8/15	8/15
Fastest tool change time（T-T)	sec	2.5	2.5	2.5	2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15	11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006	±0.007	±0.007
Repositioning accuracy	mm	±0.004	±0.004	±0.004	±0.005	±0.005
LWH	mm	2500x2400x2600	2600x2400x2550	3200x2630x2920	3730x2435x3020	3924x2660x3020
Weight	kg	5000	5000	7000	9500	11000

Lead Screw

The X, Y, Z coordinate screw of the machine tool adopts high-precision ball screw pair.The machine table is made of high strength cast iron.

Worktable

The machine table is made of high strength cast iron, the casting structure is analyzed by machine tool dynamics and finite element analysis, with reasonable reinforcement.

Tool Changer

The tool post is a manipulator tool changing device: the capacity of the tool library is 24 pieces, double arm automatic tool changing arm and CAM tool changing machine, driven by motor, fast and stable.

Spindle

Speed, high precision spindle through the no-backlash elastic coupling drive motor, speed up to 12000r/min, high-performance grease lubrication spindle bearing

CNC Control System

CNC control system with standard configuration FANUC 0I MF(5) CNC system, other systems are optional.

Column

The machine tool column is made of high strength cast iron. The structure of the casting is analyzed by machine tool dynamics and finite element analysis.
