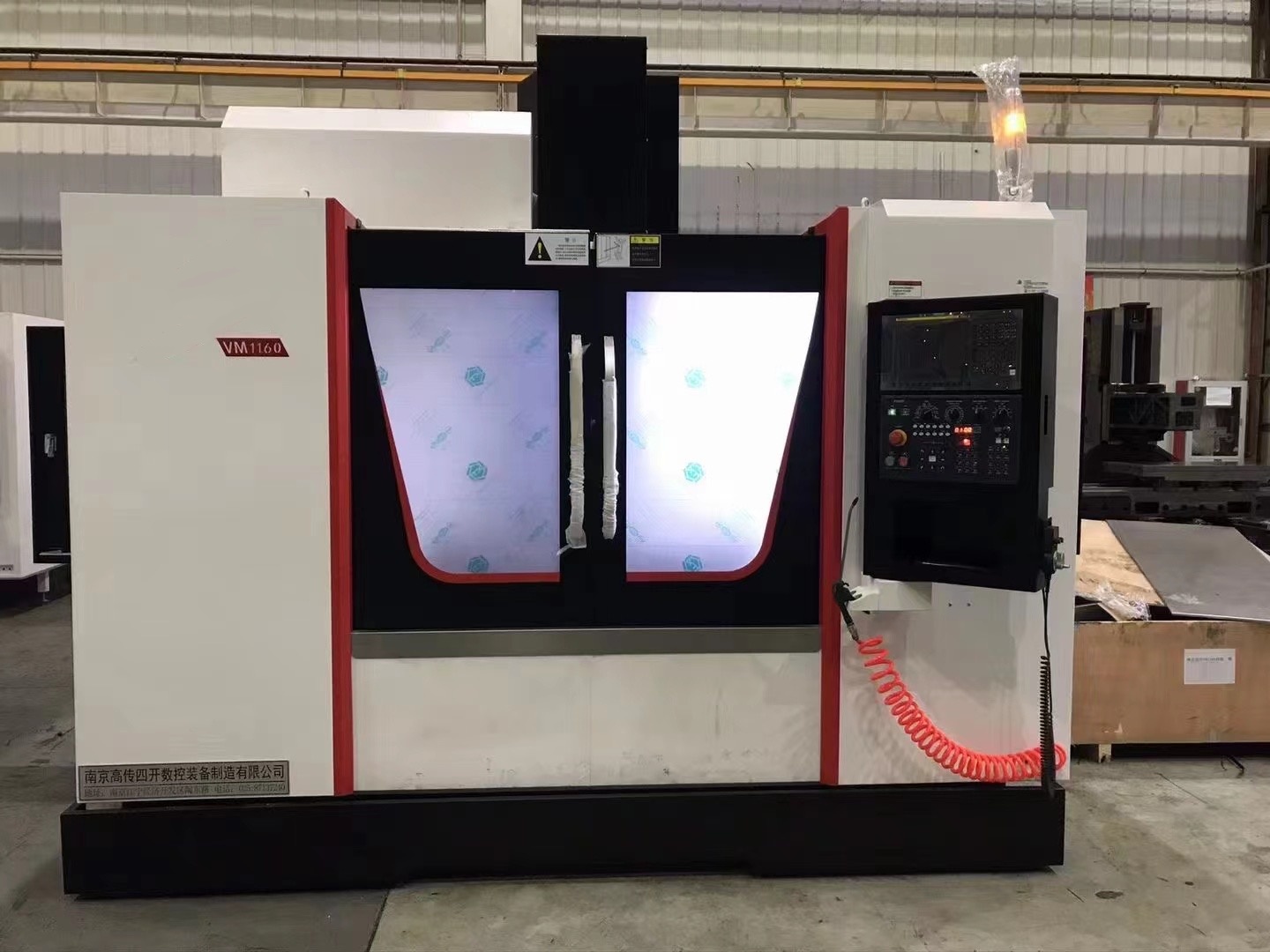

VMC1160
REFINE
FEATURE
1.The XYZ three-axis adopts heavy-duty roller linear guide rail, which has the advantages of good dynamic characteristics, large load-carrying capacity, high running precision, no creeping at low speed, and small frictional resistance.
2.X/Y/Z axis feed mechanism: AC servo motor + coupling + high-precision ball screw (pre-tightening treatment is adopted between the ball screw and the nut, the whole stroke
is inspected, and the clearance is eliminated structure.
3.The Z-axis is driven by a high-power servo motor with brake (without mechanical balance device) to ensure that the machine tool has a high dynamic response speed, and is equipped with a Sudden drop function (that is, Z-direction anti-fall and rapid lifting when power is off, preventing damage to tools or workpieces).
Product Advantages

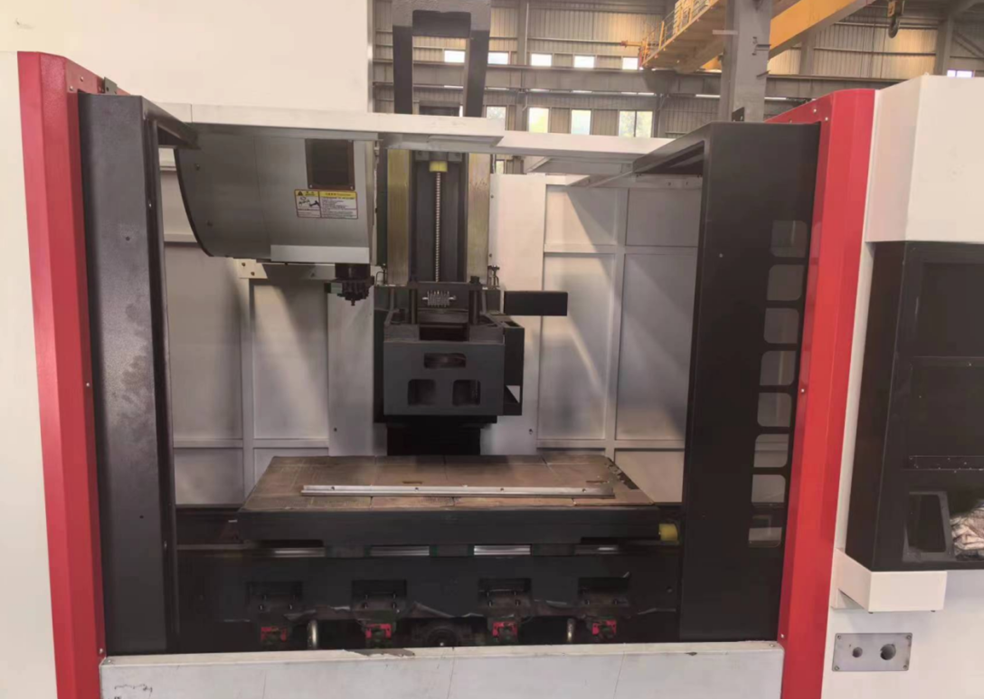

The machine consists of a bed, a column, a cross slide table, a worktable and a spindle box. Seven supporting pads are placed under the bed to fix the machine.
The machine adopts box structure and hard cast iron material. The column is fixed on the bed. Z-axis linear guide rail is installed above the column. The spindle box moves up and down along the Z-axis linear guide rail. Y axis linear guide rail is installed above the bed, and the cross slide table moves forward and backward along the Y axis linear guide rail. The table moves left and right along the X axis linear guide rail mounted on the cross slide table.
Manipulator knife library, lubrication system and pneumatic control system are installed on the left side of the column, and electrical control equipment is installed on the right rear bracket of the bed. The whole machine has compact structure and reasonable arrangement.
Product Parameters
SPECIFICATION | UNIT | VMC850 | VMC855 | VMC1160 | VMC1370 | VMC1580 |
X/Y/Z axis | mm | 800/500/600 | 800/550/550 | 1100x600x600 | 1300x700x700 | 1500/800/700 |
Distance from spindle nose to workbench | mm | 100-600 | 120-670 | 150-750 | 100-800 | 170-870 |
The distance from the spindle centre to the column railway | mm | 550 | 590 | 660 | 795 | 783 |
Track form | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | |
Workbench size（L*W) | mm | 1000x500 | 1000x550 | 1200x600 | 1400x700 | 1700x800 |
The max.load capacity | kg | 500 | 500 | 800 | 1100 | 1500 |
Slot | No/mm | 5-18×75 | 5-18×90 | 5-18×100 | 5-18×100 | 5-18×125 |
Spindle taper hole | BT40 | BT40 | BT40 | BT40 | BT50 | |
Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 6000 |
Spindle drive mode | Belt | Belt | Belt | Belt | Belt | |
X/Y/Z axis rapid feeds | m/min | 36/36/24 | 36/36/24 | 32/32/24 | 30/30/24 | 20x20x18 |
Max.cutting feed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 |
Tool change method | Arm | Arm | Arm | Arm | Arm | |
Tool Capacity | tools | 16 | 24 | 24 | 24 | 24 |
Maximum tool weight | kg | 8 | 8 | 8 | 8/15 | 8/15 |
Fastest tool change time（T-T) | sec | 2.5 | 2.5 | 2.5 | 2.5 | 4 |
Spindle motor | kw | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18.5 |
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.007 | ±0.007 |
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 |
L*W*H | mm | 2500x2400x2600 | 2600x2400x2550 | 3200x2630x2920 | 3730x2435x3020 | 3924x2660x3020 |
Weight | kg | 5000 | 5000 | 7000 | 9500 | 11000 |
