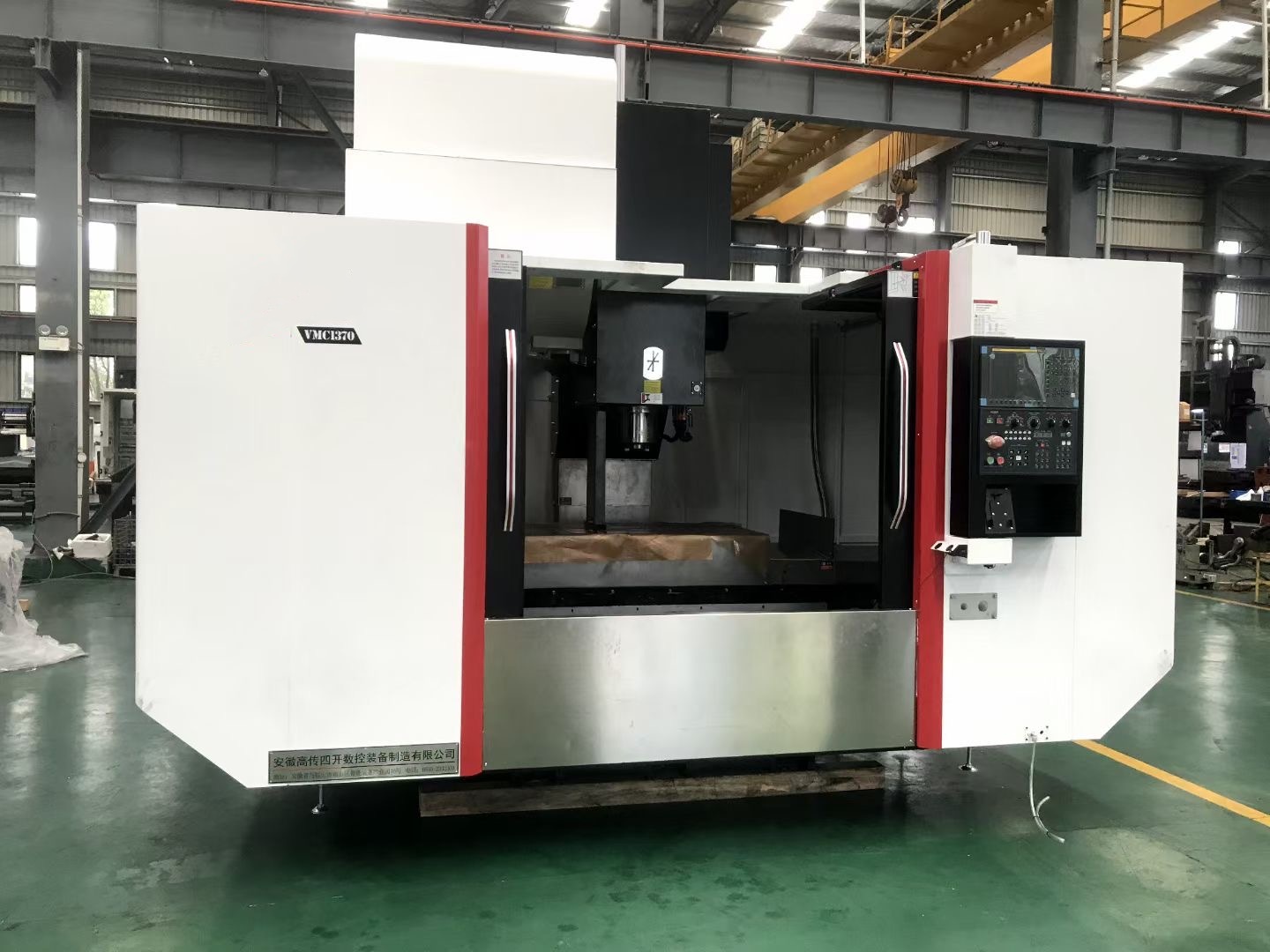

VMC1580 Box Way CNC Vertical Machine Machining Center

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC1580
Brand:
REFINE

Product Description

Machine Photos

Product Parameters

Machine Parts

FEATURE :

The machine bed body is made of high strength cast iron, and the casting structure is analyzed by machine dynamics and finite element analysis. The structure of the casting is reasonably matched with the reinforcement structure, the organization is stable, and the quality is guaranteed forever. Ensure the high rigidity of the base parts. The wide and solid structure of the machine bed and the cross slide with full load support ensure the heavy load capacity during processing.

Machine tool column adopts long span chevron structure to ensure the high rigidity and high stability of the column, and is cast by high strength cast iron, casting structure through machine tool dynamics analysis and finite element analysis, box cavity column with reasonable reinforcement structure, organization stability, to ensure the high rigidity of the base parts, to ensure the heavy load capacity during processing. The fully hardened sliding guide, combined with precision grinding, combines satisfactory precision quality.

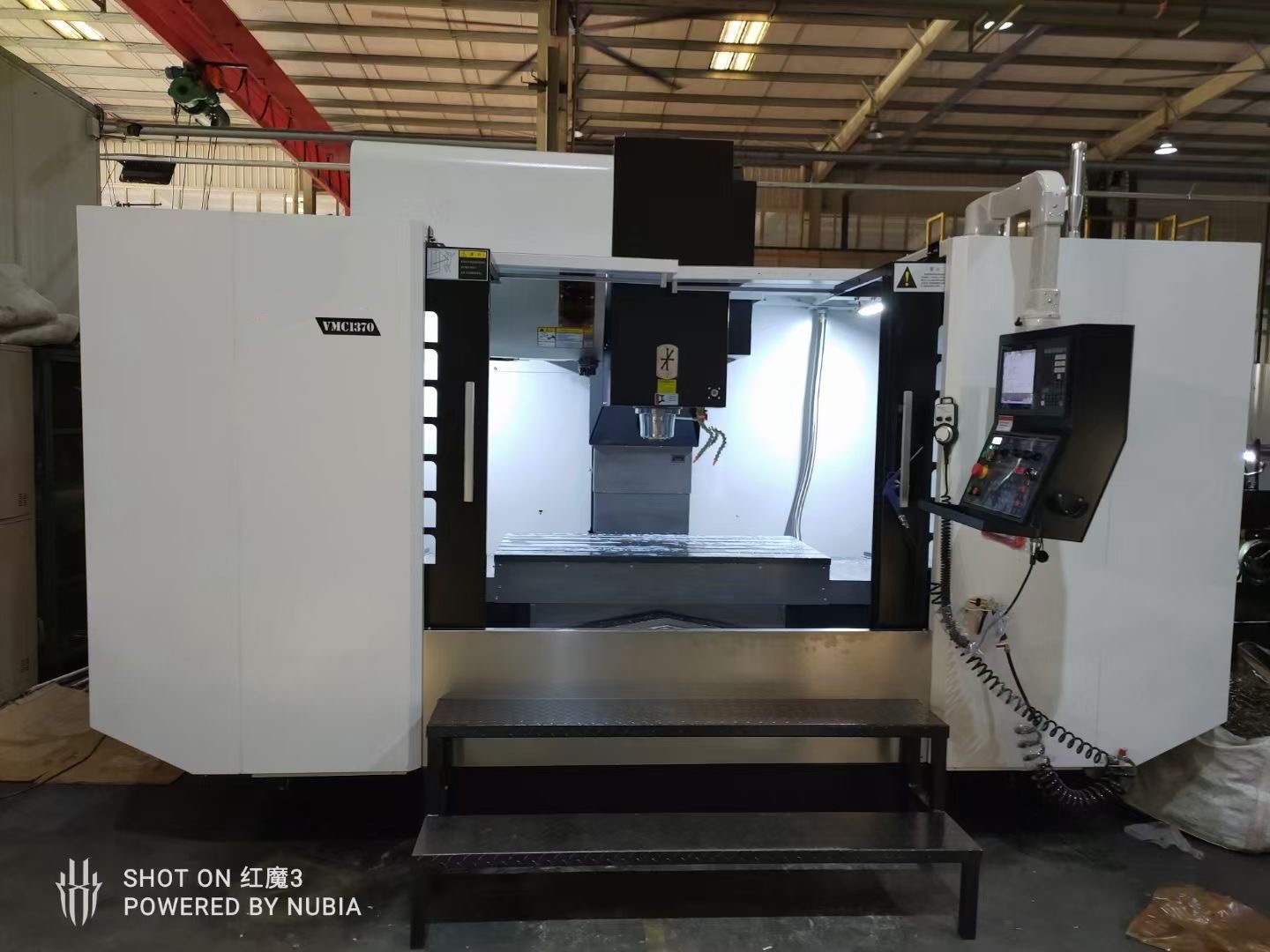

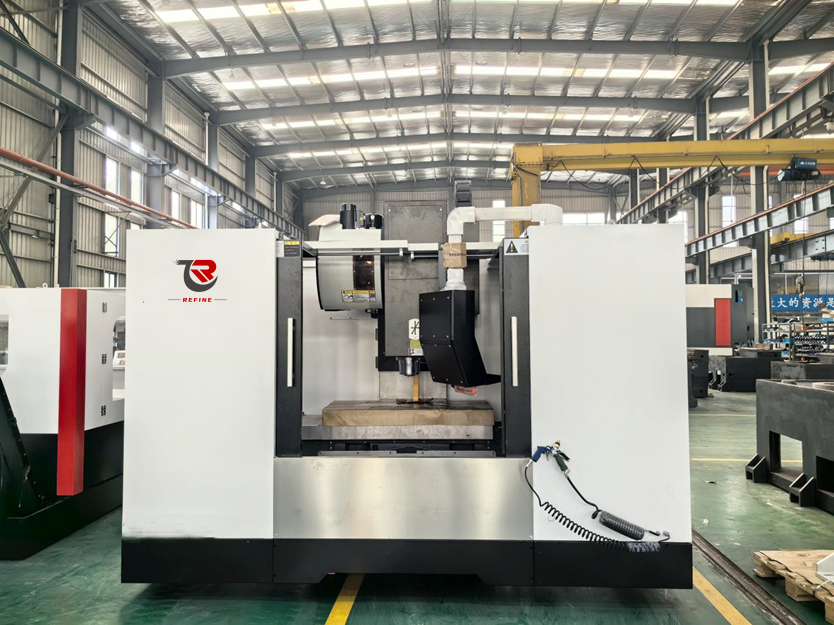

dc743880-9aea-432e-83b8-12ce5711fd1a

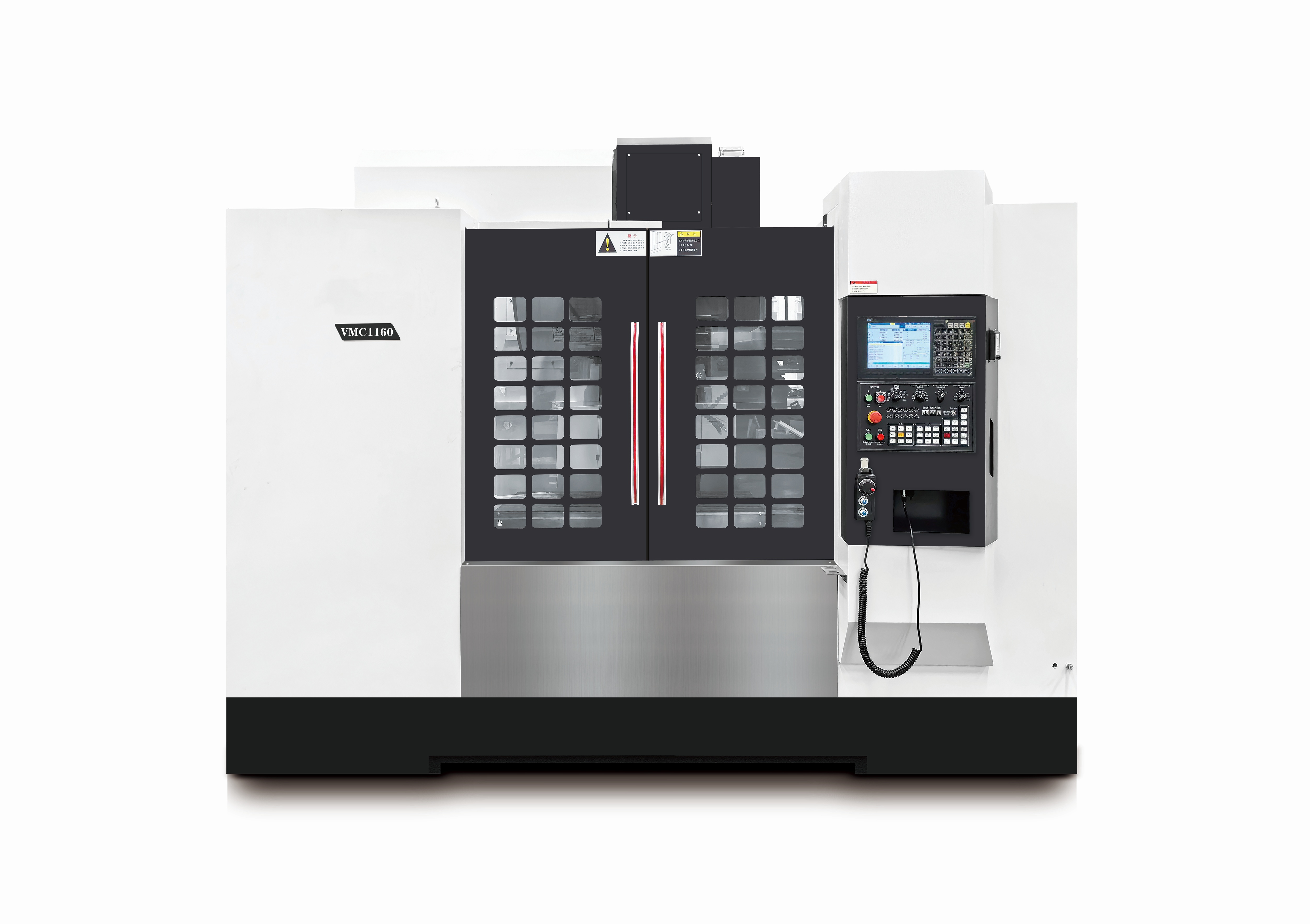

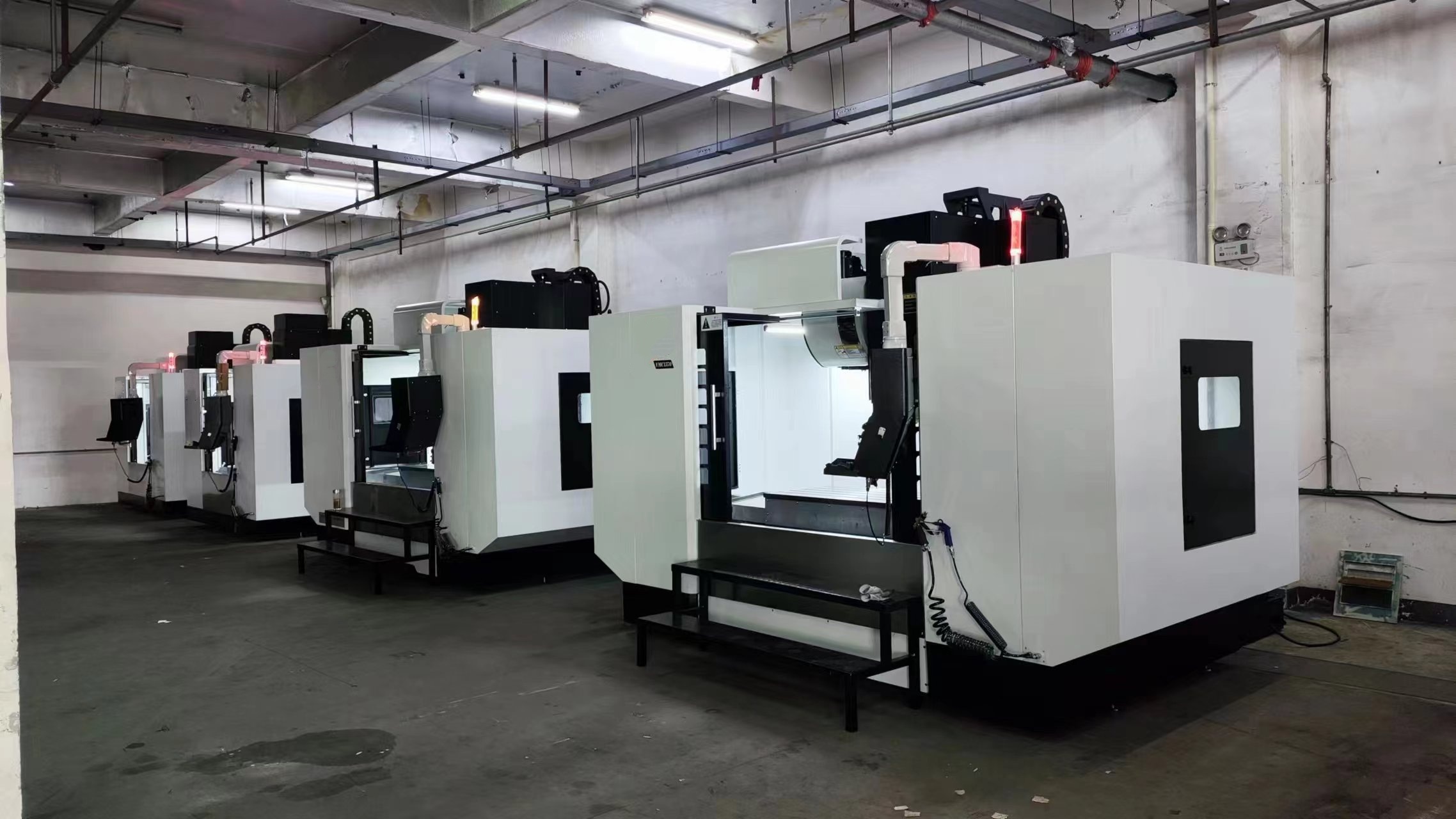

1370-2

Product Parameters

SPECIFICATION	UNIT	VMC850	VMC855	VMC1160	VMC1370	VMC1580
X/Y/Z axis	mm	800/500/600	800/550/550	1100x600x600	1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750	100-800	170-870
The distance from the spindle centre to the column railway	mm	550	590	660	795	783
Track form		XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide
Workbench size（L*W)	mm	1000x500	1000x550	1200x600	1400x700	1700x800
The max.load capacity	kg	500	500	800	1100	1500
Slot	No/mm	5-18×75	5-18×90	5-18×100	5-18×100	5-18×125
Spindle taper hole		BT40	BT40	BT40	BT40	BT50
Spindle speed	rpm	8000	8000	8000	8000	6000
Spindle drive mode		Belt	Belt	Belt	Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24	30/30/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Arm	Arm	Arm	Arm	Arm
Tool Capacity	tools	16	24	24	24	24
Maximum tool weight	kg	8	8	8	8/15	8/15
Fastest tool change time（T-T)	sec	2.5	2.5	2.5	2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15	11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006	±0.007	±0.007
Repositioning accuracy	mm	±0.004	±0.004	±0.004	±0.005	±0.005
LWH	mm	2500x2400x2600	2600x2400x2550	3200x2630x2920	3730x2435x3020	3924x2660x3020
Weight	kg	5000	5000	7000	9500	11000

Economy is more affordable

The spindle adopts precision angular ball bearings, and the standard speed can reach 6000r/min.

Spindle
The X, Y and Z coordinate screw of the machine tool all adopt high-precision ball screw pairs, and adopt special bearings for the screw, fixed in the front 3 and back 2, and pre-tighten for double nuts, so that the rigidity is strengthened and the accuracy is more stable.

Screw
The tool storage capacity is 24 sets, double-arm automatic tool changing arm and CAM tool changing machine, driven by motor, fast and stable.

Tool Magazine
The machine table is made of high strength cast iron, and the casting structure is analyzed by machine tool dynamics and finite element analysis, and is matched with reasonable reinforcing bars to ensure the heavy load capacity during processing under the condition of full load support of the cross slide table.

Worktable
