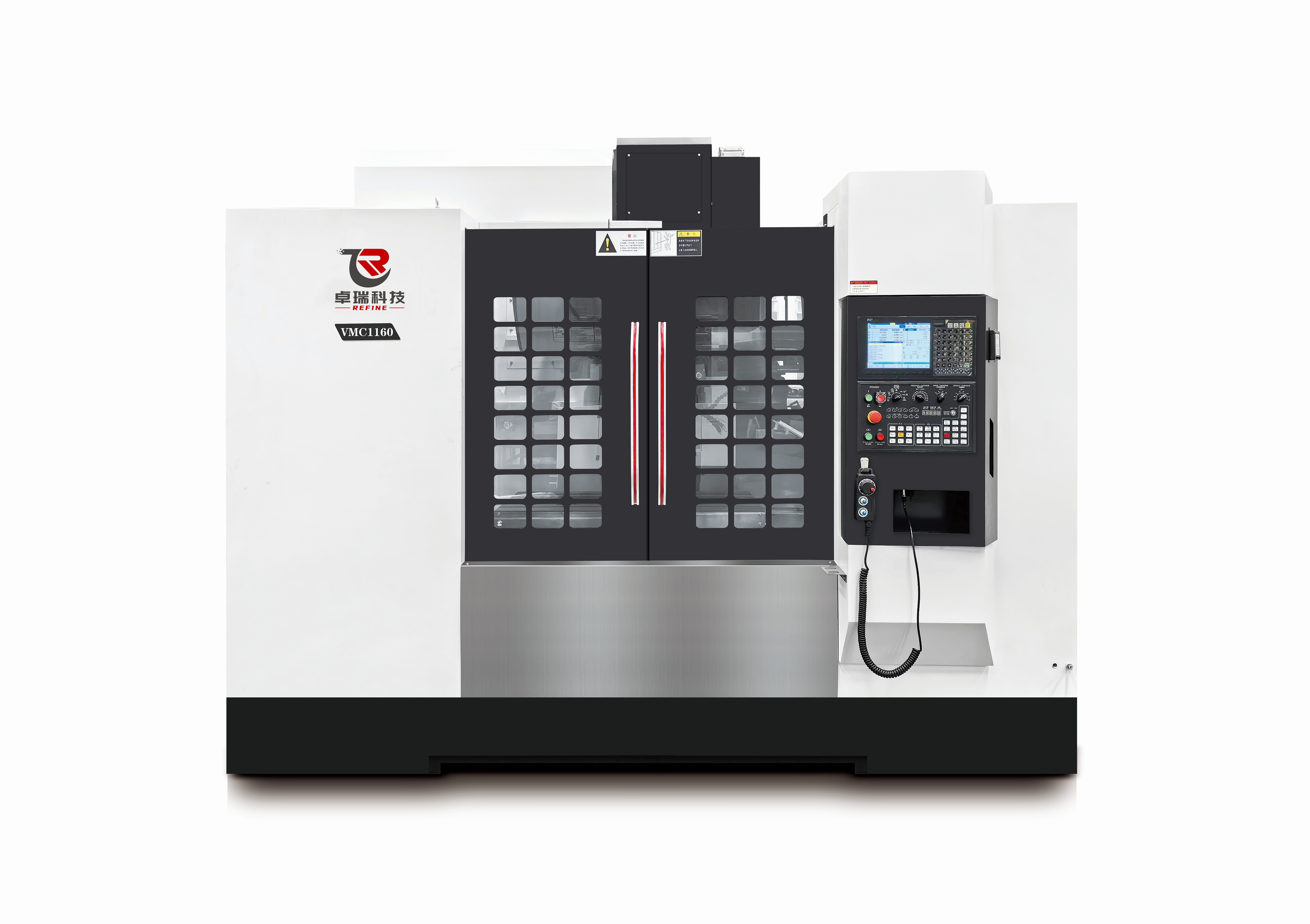

VMC1370 Heavy Duty Vertical Machining Center CNC Fanuc

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC1370
Brand:
REFINE

Product Description

Machine Picture

Product Parameters

Machine Parts

Package

MACHINE INTRODUCTION

The machine tool has a unique stable and durable rigid structure. Through repeated simulation and calculation of engineering mechanics, a stable bed structure is designed to meet the engineering needs of rigidity doubling and quality streamlining. It is not only suitable for plate, plate, shell, precision parts processing, but also suitable for mold processing. The machine comes with automatic tool exchange system (ATC), integral shield, automatic lubrication system, cooling system, portable manual operation unit (MPG). The parts can complete milling, boring, drilling, expanding, reaming, tapping and other multi-process processing after a clamping, with a high degree of automation, strong reliability, simple operation, convenient, pleasant, the overall shape beautiful and generous, high degree of mechanical and electrical integration advantages.

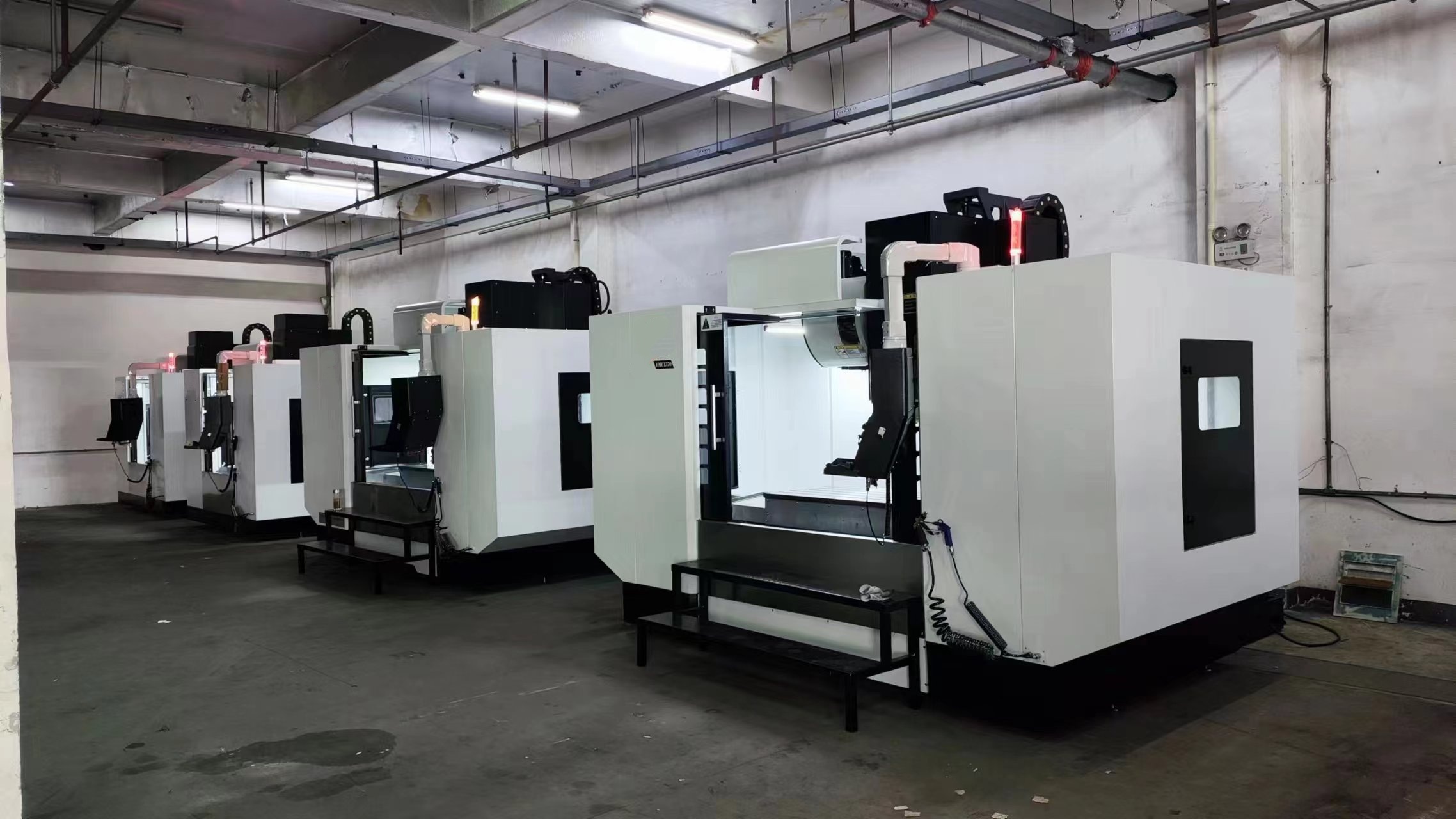

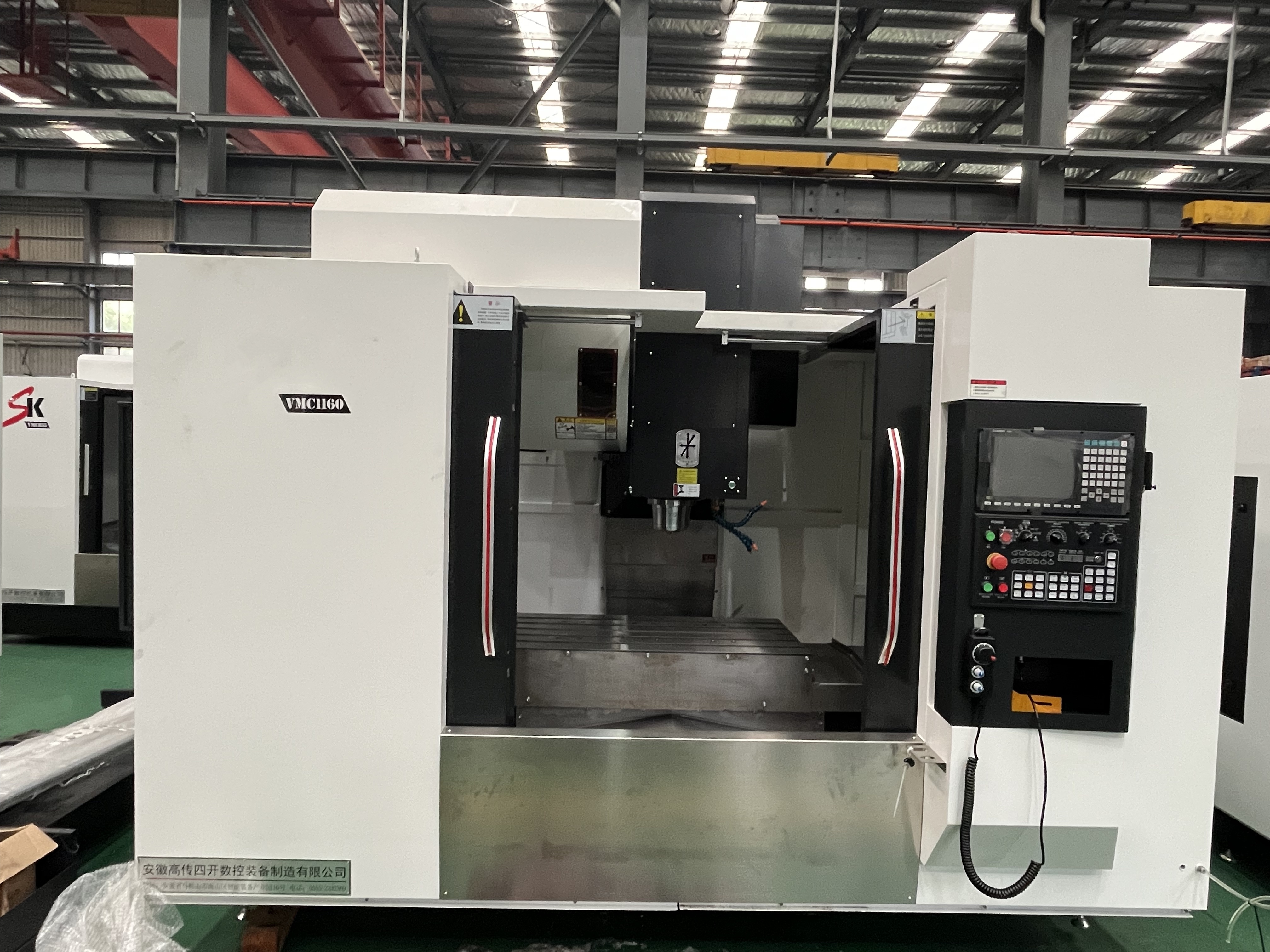

1370-2

MACHINE SPECIFICTION

SPECIFICATION	UNIT	VMC850	VMC855	VMC1160	VMC1370	VMC1580
X/Y/Z axis	mm	800/500/600	800/550/550	1100x600x600	1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750	100-800	170-870
The distance from the spindle centre to the column railway	mm	550	590	660	795	783
Track form		XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide
Workbench size（L*W)	mm	1000x500	1000x550	1200x600	1400x700	1700x800
The max.load capacity	kg	500	500	800	1100	1500
Slot	No/mm	5-18×75	5-18×90	5-18×100	5-18×100	5-18×125
Spindle taper hole		BT40	BT40	BT40	BT40	BT50
Spindle speed	rpm	8000	8000	8000	8000	6000
Spindle drive mode		Belt	Belt	Belt	Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24	30/30/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Arm	Arm	Arm	Arm	Arm
Tool Capacity	tools	16	24	24	24	24
Maximum tool weight	kg	8	8	8	8/15	8/15
Fastest tool change time（T-T)	sec	2.5	2.5	2.5	2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15	11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006	±0.007	±0.007
Repositioning accuracy	mm	±0.004	±0.004	±0.004	±0.005	±0.005
LWH	mm	2500x2400x2600	2600x2400x2550	3200x2630x2920	3730x2435x3020	3924x2660x3020
Weight	kg	5000	5000	7000	9500	11000

Introduction

Machine Bed

The machine bed body is made of high strength cast iron, and the casting structure is analyzed by machine dynamics and finite element analysis. The structure of the casting is reasonably matched with the reinforcement structure, the organization is stable, and the quality is guaranteed forever.
Worktable

The machine table is made of high strength cast iron, and the casting structure is analyzed by machine tool dynamics and finite element analysis, and is matched with reasonable reinforcing bars to ensure the heavy load capacity during processing under the condition of full load support of the cross slide table.
Tool Magazine

The Tool Magazine is a manipulator type tool changing device: the capacity of the tool store is 24, and the double-arm automatic tool changing arm and the CAM tool changing machine are driven by the motor and are fast and stable.
