VMC1370 4 axis Vertical Milling Machine with Tool Changer

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC1370
Brand:
REFNE

Product Description

Product Parameters

Standard Accessories

Pictures

Machine with automatic tool exchange system (ATC), fully enclosed enclosure, automatic lubrication system, cooling system, portable manual operation unit (MPG). Parts after a clamping can be completed milling, boring, drilling, reaming, reaming, tapping and other processes processing, with a high degree of automation, reliability, simple operation, convenient, pleasant, beautiful overall shape generous, mechanical and electrical integration degree of high advantages.

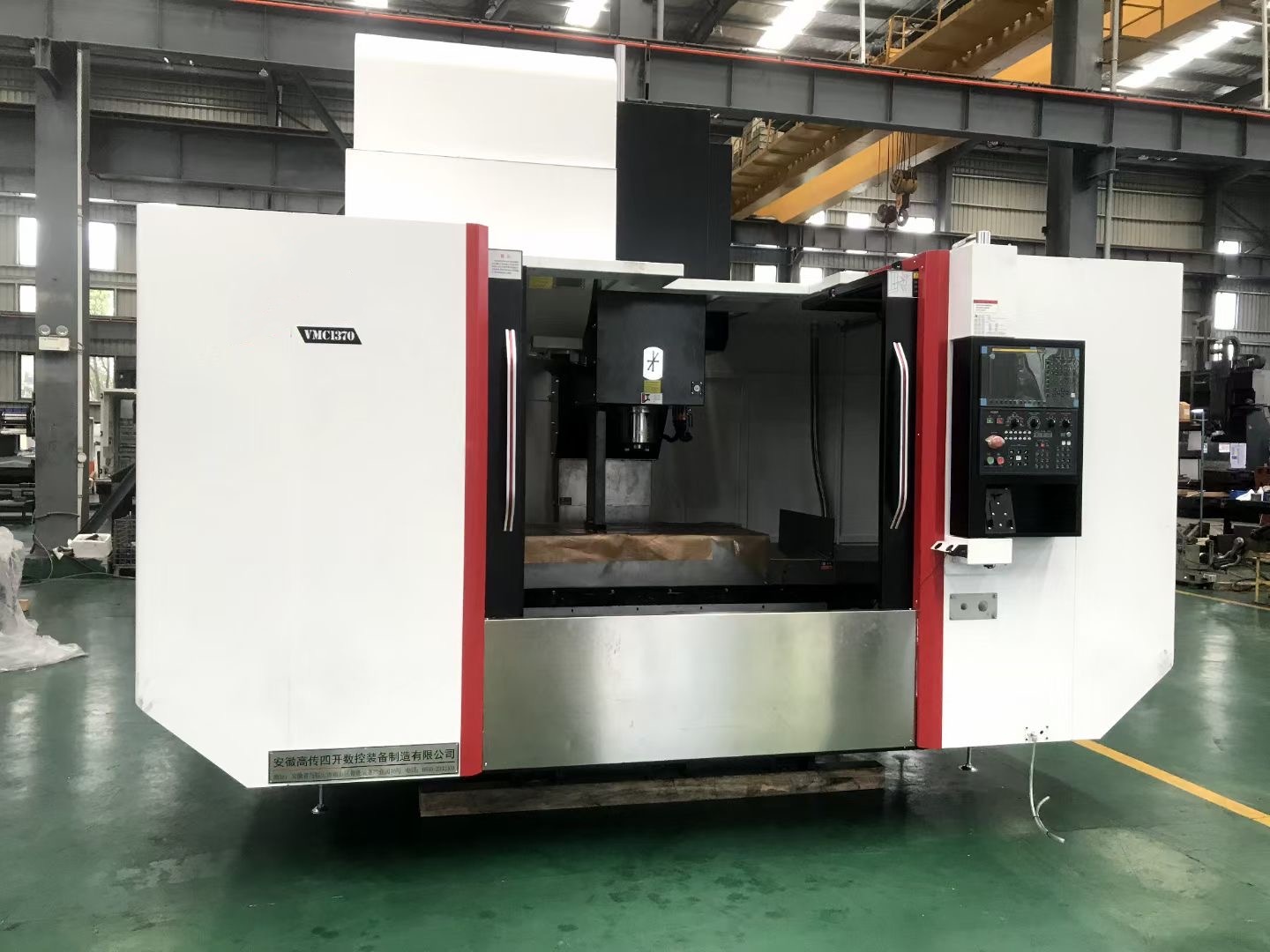

1370

Product Parameters

SPECIFICATION	UNIT	VMC850	VMC855	VMC1160	VMC1370	VMC1580
X/Y/Z axis	mm	800/500/600	800/550/550	1100x600x600	1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750	100-800	170-870
The distance from the spindle centre to the column railway	mm	550	590	660	795	783
Track form		XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide
Workbench size（L*W)	mm	1000x500	1000x550	1200x600	1400x700	1700x800
The max.load capacity	kg	500	500	800	1100	1500
Slot	No/mm	5-18×75	5-18×90	5-18×100	5-18×100	5-18×125
Spindle taper hole		BT40	BT40	BT40	BT40	BT50
Spindle speed	rpm	8000	8000	8000	8000	6000
Spindle drive mode		Belt	Belt	Belt	Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24	30/30/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Arm	Arm	Arm	Arm	Arm
Tool Capacity	tools	16	24	24	24	24
Maximum tool weight	kg	8	8	8	8/15	8/15
Fastest tool change time（T-T)	sec	2.5	2.5	2.5	2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15	11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006	±0.007	±0.007
Repositioning accuracy	mm	±0.004	±0.004	±0.004	±0.005	±0.005
LWH	mm	2500x2400x2600	2600x2400x2550	3200x2630x2920	3730x2435x3020	3924x2660x3020
Weight	kg	5000	5000	7000	9500	11000

Standard Accessories

1	24 disc tool magazines	9	Working light
2	Workpiece Cooling System	10	Tri-color warning light
3	Automatic lubrication system	11	cleaning air gun
4	Spindle blowing device	12	Spindle output water
5	Electric cabinet heat exchanger	13	Foundation screws and pads
6	Network transmission and CF card function	14	Tools and Toolboxes
7	Rigid tapping	15	Iron chipping disc and chip storage box
8	Fully enclosed protective cover	16	Portable chip blowing air gun
