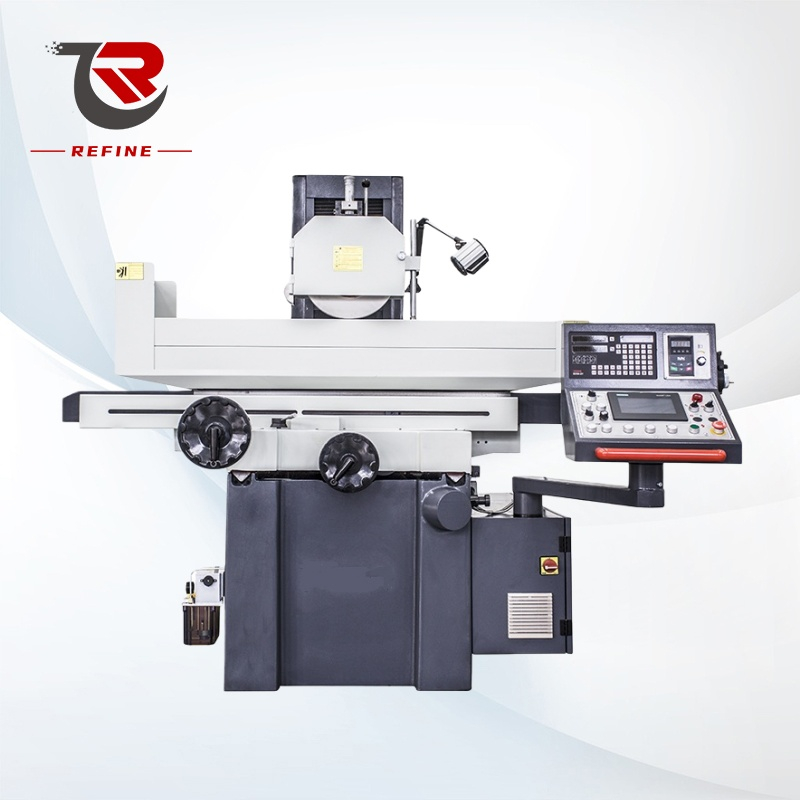

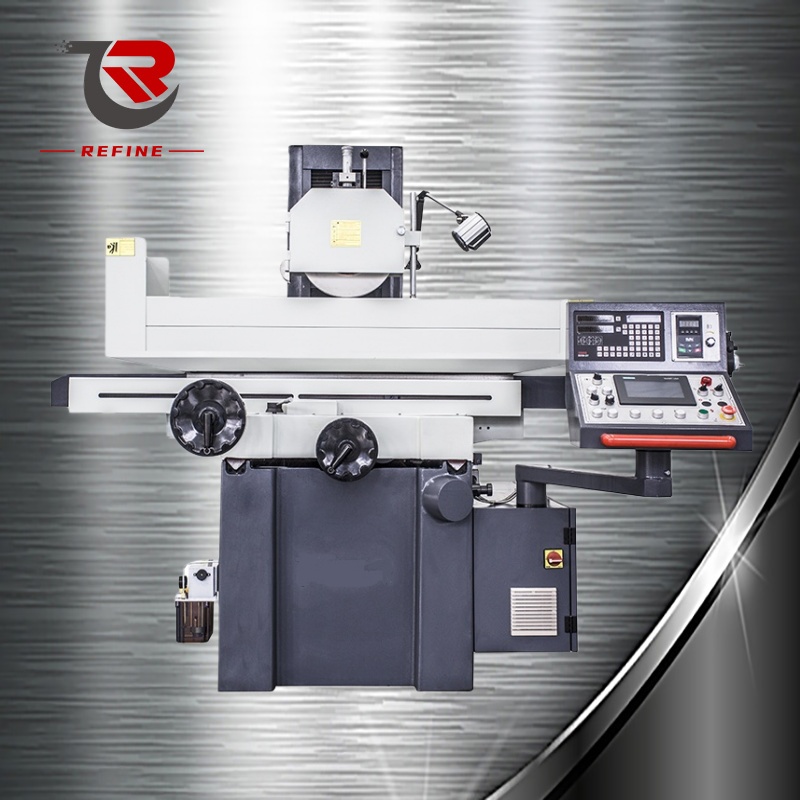

Program-controlled Column Mobile Surface Grinding Machine FSG50100NC

Availability:

Quantity:



Inquire Add to Basket

Model:
FSG501000NC
Brand:
REFNE

Structure and Feature

Parameters

Configuration and Standard Accessories

Packing and Shipment

Customer Visiting

This machine tool is suitable for the grinding of small and medium-sized parts. The grinding machine mainly uses the circumference of the grinding wheel to grind the workpiece plane. Due to the use of the circumference of the grinding wheel to grind, the workpiece surface can achieve higher accuracy and lower roughness value.
The machine can also use the end face of the grinding wheel to grind the vertical plane of the workpiece. According to the shape and size of the workpiece, it can be adsorbed on the electromagnetic chuck or directly fixed on the workbench surface, and other fixtures can also be used to clamp the grinding.
The machine can grind workpieces made of steel, cast iron, non-ferrous metals and other materials.

Strcuture and Feature

Layout

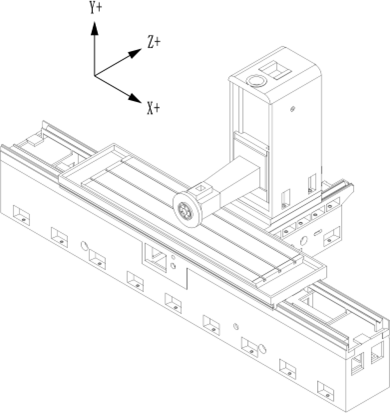

This machine tool adopts a T-shaped layout. The grinding head moves up and down along the guide rail of the column (Y-axis), the column moves forward and backward along the guide rail at the rear of the bed (Z-axis), and the worktable moves left and right along the guide rail of the bed (X-axis). Compared with the traditional M71 series grinding machine with the grinding head moving forward and backward, it avoids the phenomenon of the ground plane being lower at the front and higher at the back, achieving higher precision and more stable operation.
Column Movement mode

The machine tool adopts a column movement mode, featuring high processing efficiency and high precision retention. The X-axis, Y-axis, and Z-axis all adopt a hard rail structure. The X-axis and Z-axis are flat V-type guideways, and the worktable guideway and the transverse slide guideway are coated with polytetrafluoroethylene guide rail belts and have been precisely scraped by hand. The Y-axis is a steel-inlaid rectangular guideway, and the steel guideway undergoes high-frequency quenching treatment, with a high surface hardness and long service life. The three axes have the characteristics of high rigidity and high stability. The lubrication of the three-axis guideways and the linear feed axis transmission mechanism is provided by an independent lubrication pump station for continuous forced oil lubrication.
High-grade gray cast iron materials.

All the main castings of the machine tool are made of high-quality, high-grade gray cast iron materials. The moving parts have been optimized and designed through finite element analysis, ensuring both high strength and high rigidity of the moving parts, while also possessing excellent motion response characteristics. This enables the machine tool to maintain high processing accuracy and stability during operation.

Model Item	Unit	FSG50100NC
Machining Capacity
Worktable size (W×L)	mm	500×1000
Max grinding size(W×L)	mm	500×1000
Worktable T slot（W×L）	mm×n	18×3
Max loading weight（Contains electromagnetic sucker）	kg	700
Maximum distance from spindle center line to table surface	mm	600
Worktable Right and left Move（X axis）
Max travel	mm	1000
Worktable speed	m/min	5~25

Column forward and backward movement（Z axis）
Max travel	mm	550
Rapid movement speed	mm/min	1500
Automatic intermittent feed rate	mm/t	0-30
Min feed per cell of electronic handwheel	mm/gra	0.005
The Grinding head moves up and down（Y axis）
Automatic feed rate	mm/t	0.005~0.05
Rapid movement speed	mm/min	600
Min feed per cell of electronic handwheel	mm/gra	0.005
Grinding Wheel
Size(O.D×Thickness×I.D)	mm	400×50×127
Spindle Speed	rpm	1450 (50HZ)

Configuration

No.	Item	Manufacturer	QTY
1	Z axis ballscrew	Hanjiang or equivalent brand	1 set
2	Y axis precision screw	Taiwan Shimin	1 set
3	Y/Z axis ballscrew bearing	HRB or equivalent brand	Each 1 total 2 set
4	Main hydraulic station system	Fengrun	1 set
5	Static pressure pumping station	Nanjing Mengfu or equivalent brand	1 set
6	X/Y/Z axis lubrication system	Fengrun	1 set
7	Y/Z axis servo motor and drive	Delta	Each 1 total 2 set
8	Main electrical parts	Siemens

Standard Accessories

No.	Item	Specification	QTY	Remark
1	Leveling bolts		1 set
2	Foundation bolt		1 set
3	Working light		1 pc
4	Grinding wheel chuck		1 set
5	Grinding Wheel handling tool		1 set
6	Standard grinding wheel	400×50×127	1 pc
7	Balance shaft		1 set
8	Diamond pen holder（not included diamond pen）		1 pc
9	Water hood		1 set
10	Cooling system		1 set
11	Partial wrench		1 set
12	Operating manual		1 pc	Include in Electric part
13	Built-in charge demagnetization controller		1 set
14	PLC＋HMI Grinding controller		1 set
