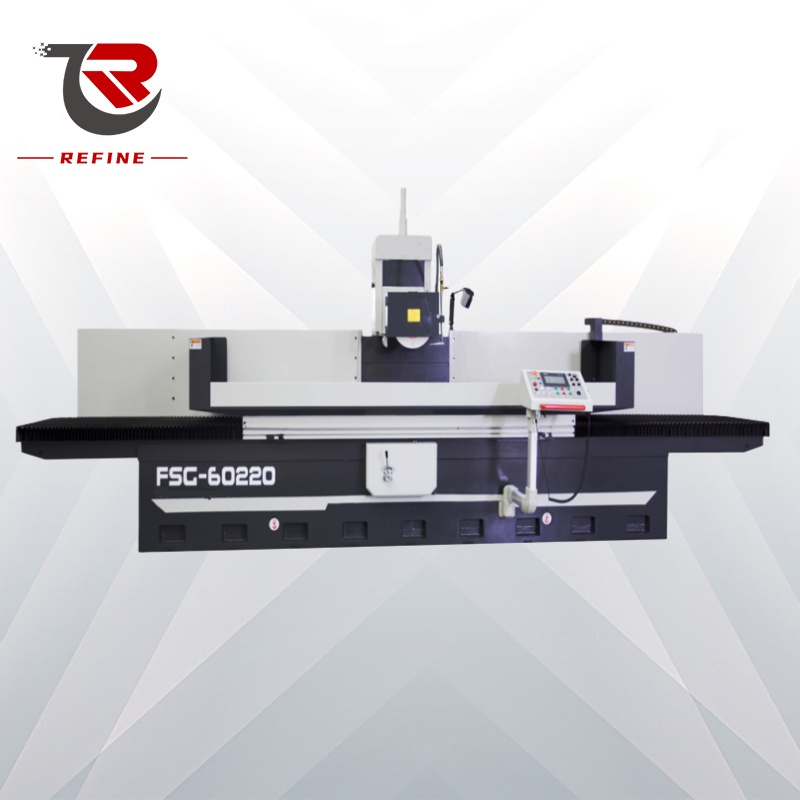

PLC Column-moving Surface Grinder FSG 60220NC

Availability:

Quantity:



Inquire Add to Basket

Model:
FSG60220NC
Brand:
REFNE

Structure and Feature

Parameters

Configuration and Standard Accessories

Packing and Shipment

Customer Visiting

Feature

Layout

This machine tool adopts a T-shaped layout. The grinding head moves up and down along the guide rail of the column (Y-axis), the column moves forward and backward along the guide rail at the rear of the bed (Z-axis), and the worktable moves left and right along the guide rail of the bed (X-axis). Compared with the traditional M71 series grinding machine with the grinding head moving forward and backward, it avoids the phenomenon of the ground plane being lower at the front and higher at the back, achieving higher precision and more stable operation.
Column Movement mode

The machine tool adopts a column movement mode, featuring high processing efficiency and high precision retention. The X-axis, Y-axis, and Z-axis all adopt a hard rail structure. The X-axis and Z-axis are flat V-type guideways, and the worktable guideway and the transverse slide guideway are coated with polytetrafluoroethylene guide rail belts and have been precisely scraped by hand. The Y-axis is a steel-inlaid rectangular guideway, and the steel guideway undergoes high-frequency quenching treatment, with a high surface hardness and long service life. The three axes have the characteristics of high rigidity and high stability. The lubrication of the three-axis guideways and the linear feed axis transmission mechanism is provided by an independent lubrication pump station for continuous forced oil lubrication.
High-grade gray cast iron materials.

All the main castings of the machine tool are made of high-quality, high-grade gray cast iron materials. The moving parts have been optimized and designed through finite element analysis, ensuring both high strength and high rigidity of the moving parts, while also possessing excellent motion response characteristics. This enables the machine tool to maintain high processing accuracy and stability during operation.

Item	Unit	FSG60220NC
Machining Capacity
Worktable Size (W×L)	mm	630×2200
Max grinding size(W×L)	mm	600×2200
T-slot on the workbench（W×N）	mm×n	18×3
Max loading weight	kg	1690
The max distance from the centerline of the spindle to the worktable surface	mm	600
The workbench moves left and right.（X axis）
Max effective travel	mm	2200
Worktable speed	m/min	5~25
The column moves forward and backward（Z axis）
Max travel	mm	650
Rapid Move Speed	mm/min	1500
Automatic intermittent feed rate	mm/t	0-30
Min feed per grid of the electronic handwheel	mm/gra	0.005

Configuration

No	Item	Brand	QTY
1	Dynamic and static pressure grinding head assembly	Fengrun	1 set
2	Z axis ball screw	Hanjiang or an equivalent brand	1 set
3	Y axis precision screw	Taiwan Shimin	1 set
4	Y/Z aixs screw bearing	HRB Or equivalent brand	Each one set
5	Main hydraulic station system	Fengrun	1 set
6	Static pressure pump station	Nanjing Mengfu or equivalent brands	1 set
7	X/Y/Z axis lubrication system	Fengrun	1 set
8	Y/Z axis Servo motors and drivers	Delta or equivalent brands	Each one set
9	Main electrical components	Siemens

Standard Accessories

No.	Item	Spec.	QTY	Remark
1	Leveling bolts		1 set
2	Foundation Bolt		1 set
3	Working light		1 pc
4	Grinding wheel chuck		1 set
5	Grinding wheel loading and unloading tools		1 set
6	Standard grinding wheel	400×50×127	1 pc
7	Balance shaft		1 set
8	Diamond Pen Holder (Excluding Diamond Pen)		1 pc
9	Water shield		1 set
10	Cooling System		1 set
11	Some wrenches		1 set
12	Operating manual		1 pc	Including electrical parts
13	Built-in charge and demagnetization controller		1 set
14	PLC＋HMI Grinding controller		1 set
