Application

Structure and Feature

Parameters

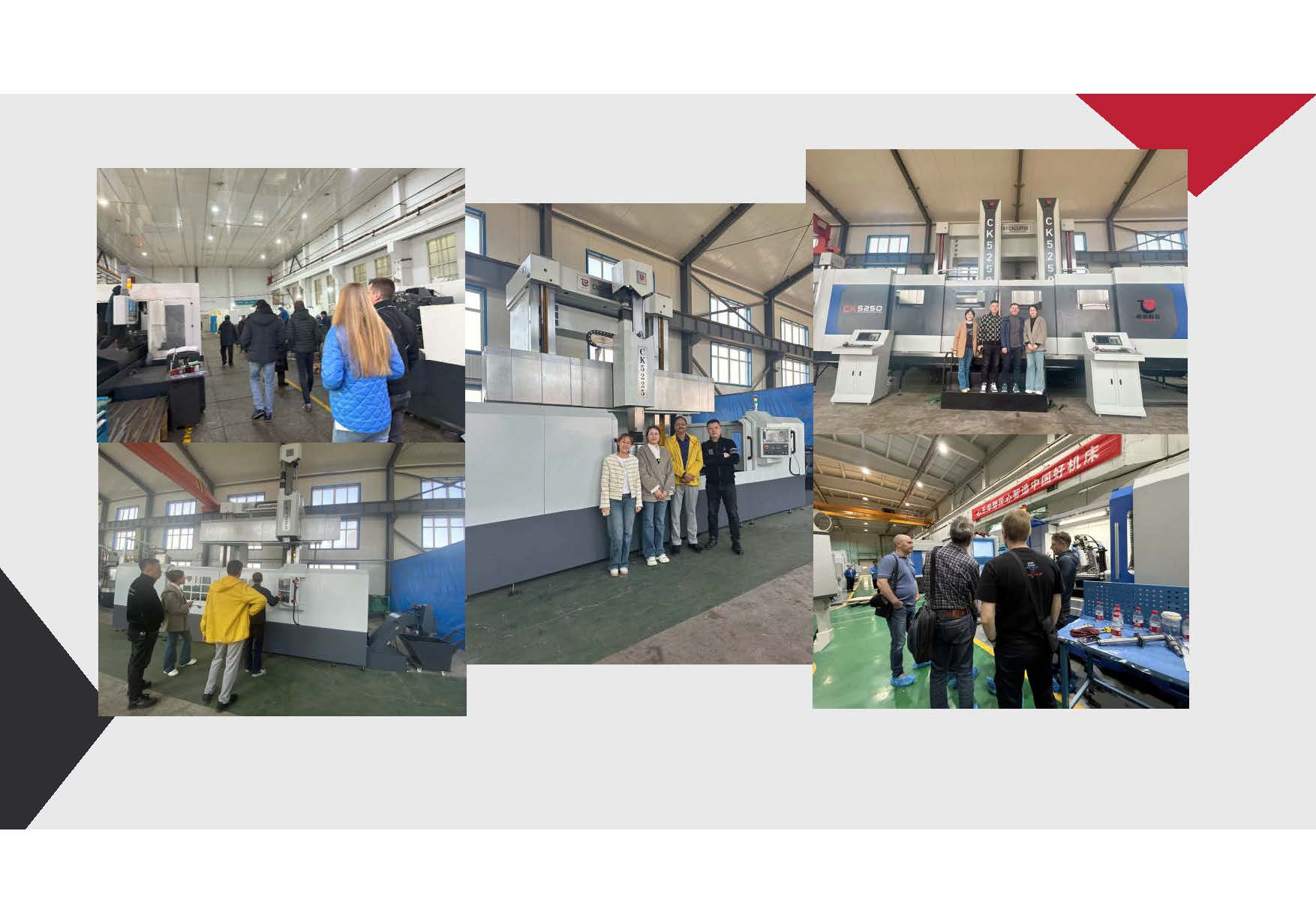

Customer Visiting and Inspection

Package and Shipment

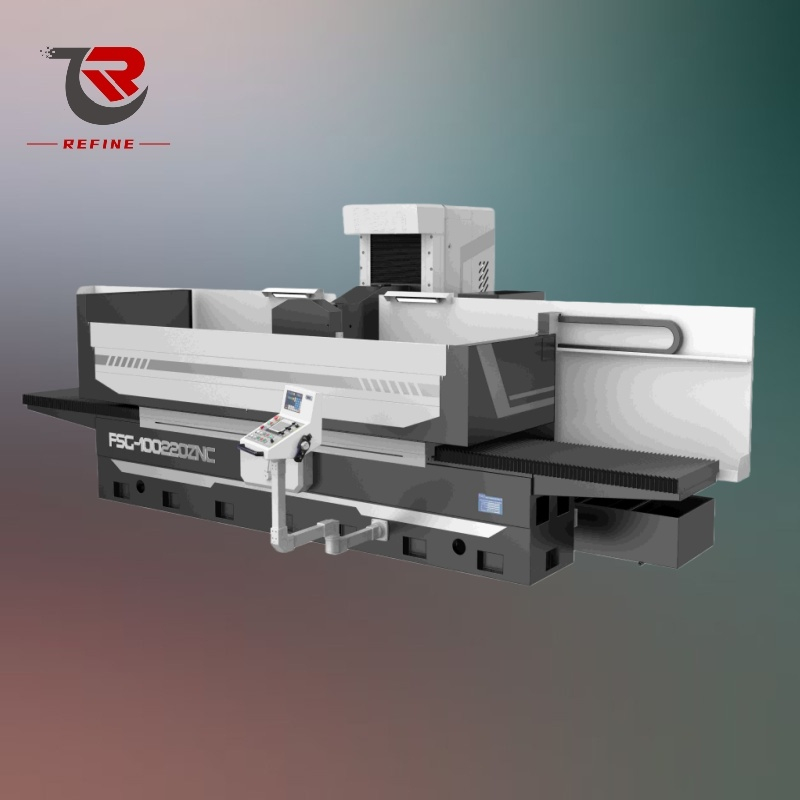

This machine tool is suitable for the grinding of medium and large parts. The grinding machine mainly uses the circumference of the grinding wheel to grind the workpiece plane. Due to the use of the circumference of the grinding wheel to grind, the workpiece surface can achieve higher accuracy and lower roughness value.

The machine can also use the end face of the grinding wheel to grind the vertical plane of the workpiece. According to the shape and size of the workpiece, it can be adsorbed on the electromagnetic chuck or directly fixed on the workbench surface, and other fixtures can also be used to clamp the grinding.

The machine can grind workpieces made of steel, cast iron, non-ferrous metals and other materials.

Machine Advantage

This machine tool is FSG100300ZCⅡ type CNC column mobile heavy surface grinding machine, which is mainly composed of the front bed part, the back bed part, the workbench part, the sliding seat part, the column part, the grinding head part, the cooling part, the lubrication part, the electrical part, and the shaft transmission part.

T Layout

The machine adopts T layout, the grinding head moves up and down along the column guide rail (Y axis), the column moves back and forth along the guide rail at the back of the bed (Z axis), and the table moves left and right along the bed guide rail (X axis). Compared with the traditional M71 series grinding head moving grinding machine, avoiding the phenomenon of low grinding surface and high grinding surface, higher precision and stable work.
Column is a frame-shaped box

The column is a frame-shaped box, with double-wall structure and dense reinforcement inside to make its structural rigidity stronger and ensure the stability of the grinding head when recutting. The bottom is fixed with the movable slide, the movable slide adopts the flat-V guide rail, and the reverse press plate is combined with the front and rear guide rail at the back of the bed to eliminate the influence of the reverse torque during grinding, which is more suitable for the requirements of strong grinding.
Flat-V guide rail

The table adopts flat-V guide rail and moves around along the bed guide rail. The guide rail of the workbench is pasted with PTFE wear belt and scraped by manual precision. The working table is hydraulically driven by double oil cylinder, and the double oil cylinder is fixed on the bed; The left and right direction switch is used for signaling, and the special electro-hydraulic valve is used for reversing, which is stable and reliable.

Model Item	Unit	FSG100300ZCⅡ
Machining Capacity
Table size (W×L)	mm	1000×3000
Max grinding size (W×L)	mm	1000×3000
Worktable T slot（W×Number）	mm×n	22×5
Max Worktable loading weight	kg	5000
Max distance from spindle center line to table surface	mm	920
Worktable left and right movement（X axis）
Max effective travel	mm	3000

Worktable Speed	m/min	5~25
Column forward and backward movement（Z axis）
Max travel	mm	1100
Rapid speed	mm/min	2000
Electrical handwheel feed	mm/gra	0.001
Grinding Head up and down movement（Y axis）
Automatic feed range	mm/t	0.001~0.05
Rapid speed	mm/min	2000
Electrical handwheel feed	mm/gra	0.001
Grinding wheel
Size(O.D×thickness×I.D)	mm	500×100×305
Spindle Speed	rpm	960 (50HZ)
