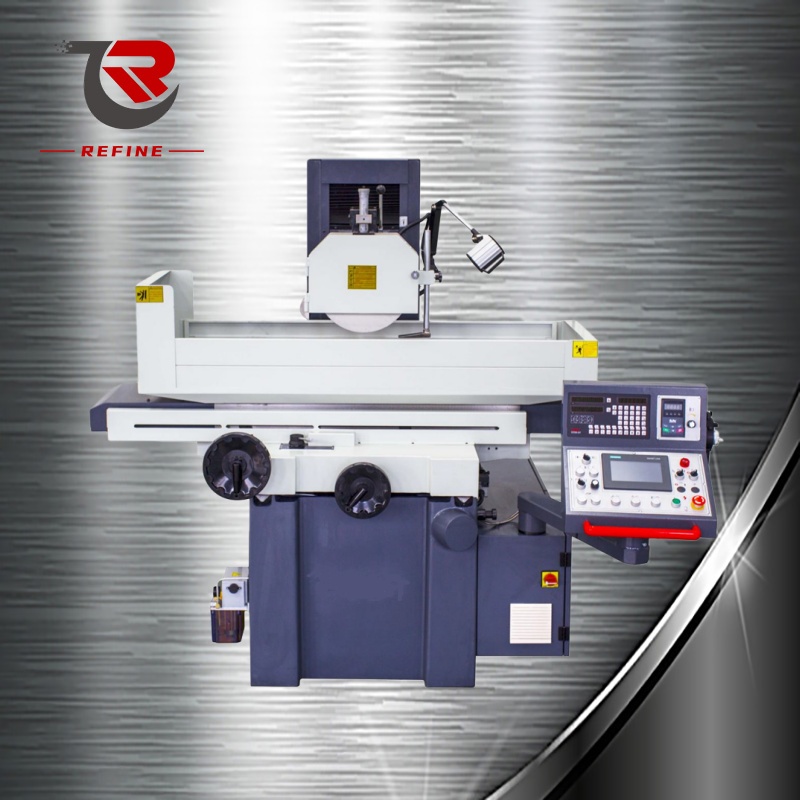

PLC Metal Surface Grinders FSG 3063A

Feature

Parameters

Configuration

Packing and Shipment

Customer Visiting

Feature

Control Box

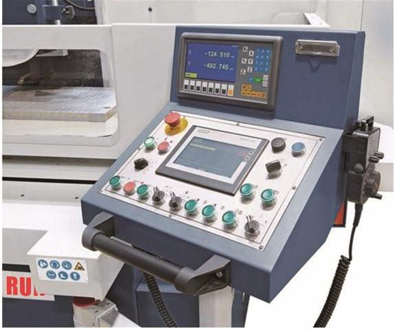

The control box is located at the front of the machine tool and is designed with a bidirectional rotation function, which is convenient for the operator to adjust the optimal working Angle. The control panel is equipped with a touch screen interface and a basic operation panel.
Independent Hydraulic Station

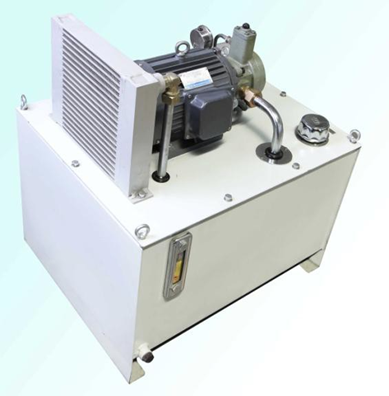

The independent hydraulic station is equipped with an air-cooling device, which operates smoothly with a small temperature rise. In combination with the imported throttling and reversing valve group from Taiwan, it controls the left and right movement of the worktable, thereby providing power guarantee for the precision grinding of the machine tool.
Column

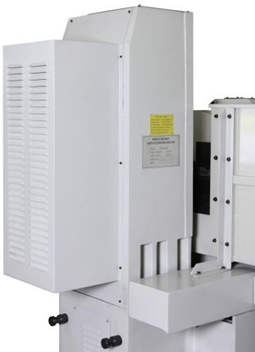

The column adopts a double-wall structure, providing high-rigidity support for the grinding head. The closed steel plate protective cover effectively protects the motor and guide rail, ensuring safety and aesthetics
Guide way

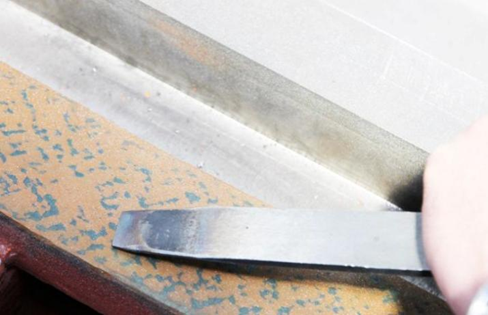

The guide rails are attached with TF wear-resistant belts and precisely scraped by hand, ensuring smooth movement and a long service life with high precision.

Item		Unit	FSG3063A
Worktable Size (W×L)		mm	305×635
Worktable T slot（W×N）		mm	14×3
Worktable right and left move speed		m/min	5~25
The maxdistance from the centerline of the main shaft to the worktable surface		mm	580
Max loading（including sucker）		kg	270
The workbench moves forward and backward.	Intermittent automatic feed rate	mm	0.1~8
	Rapid speed	mm/min	990
	Hand wheel feed range	mm/grid	0.02
	Hand wheel feed range	mm/circle	5
The grinding head moves up and down	Automatic feed	mm	0.005~0.05
	Rapid speed	mm/min	480
	Electronic handwheel feed rate	mm/grid	0.005
Grinding wheel	Size (OD×Thinkness×ID)		350×40×127
Grinding wheel	Spindle speed	rotary/min	1450 (50HZ) 1750 (60HZ)
Motor	Spindle motor	kw	5.5
	Oil pump motor	kw	2.2
	Cooling pump motor	kw	0.125
	Grinding head lifting motor	kw	0.5
	Front and rear drive motors	kw	0.04
Machine weight		kg	About 2800
Floor space (L×W×H)		mm	about 2350× 2220× 2210

No.	Item	Manufacturer or supplier	QTY
1	Grinding head spindle assembly	Fengrun	1 set
2	Y axis precision screw	Taiwan Shimin	1 set
3	Z axis Ball screw	Hanjiang or equal brand	1 set
4	Main hydraulic station system	Fengrun	1 set
5	X/Y/Z axis lubrication system	Taiwan Yuxiang or equivalent brands	1 set
6	Y axis servo motor and drive	Delta	1 set
7	Electrical Parts	Siemens
