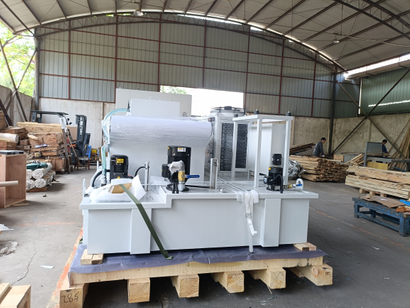

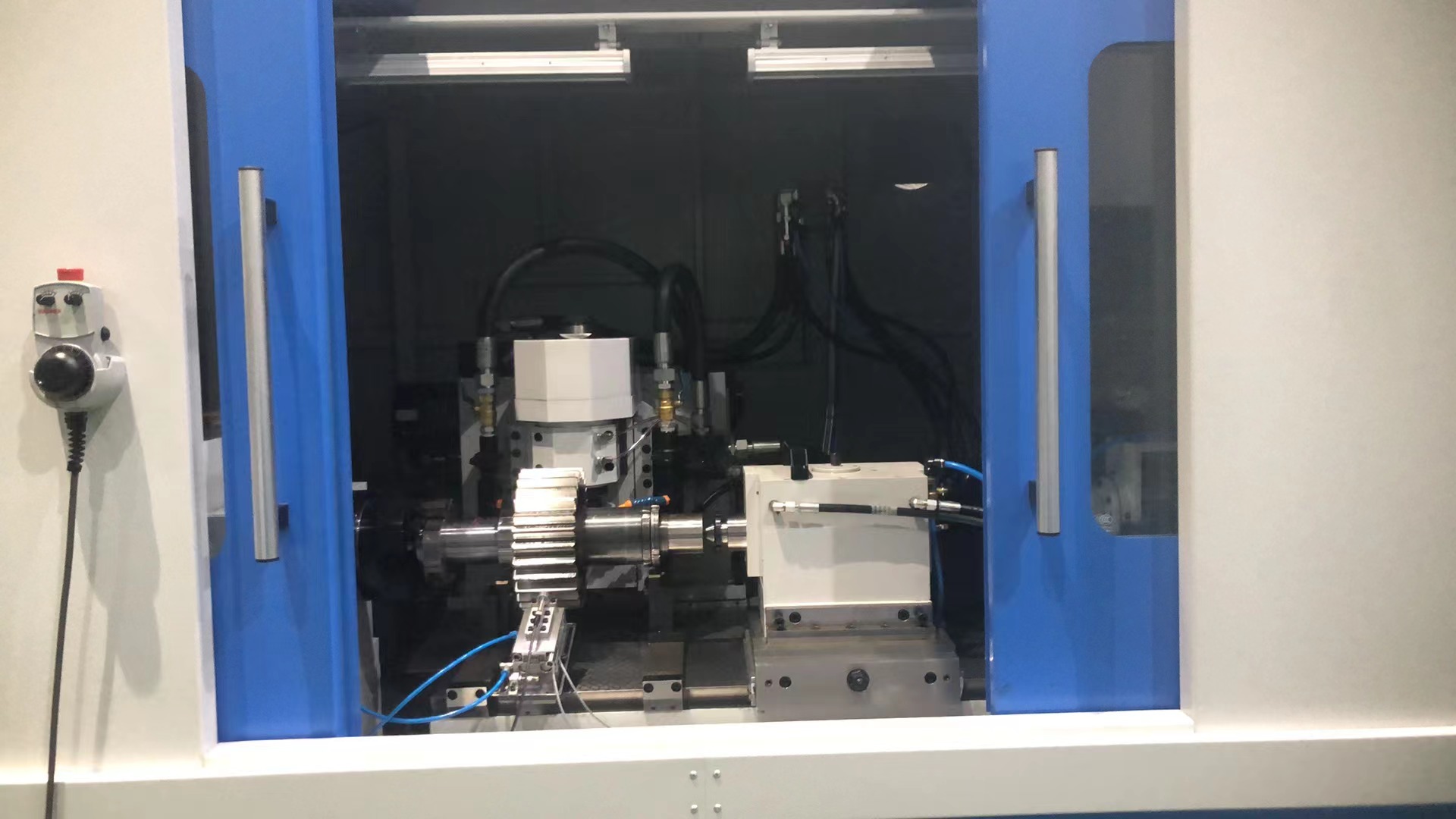

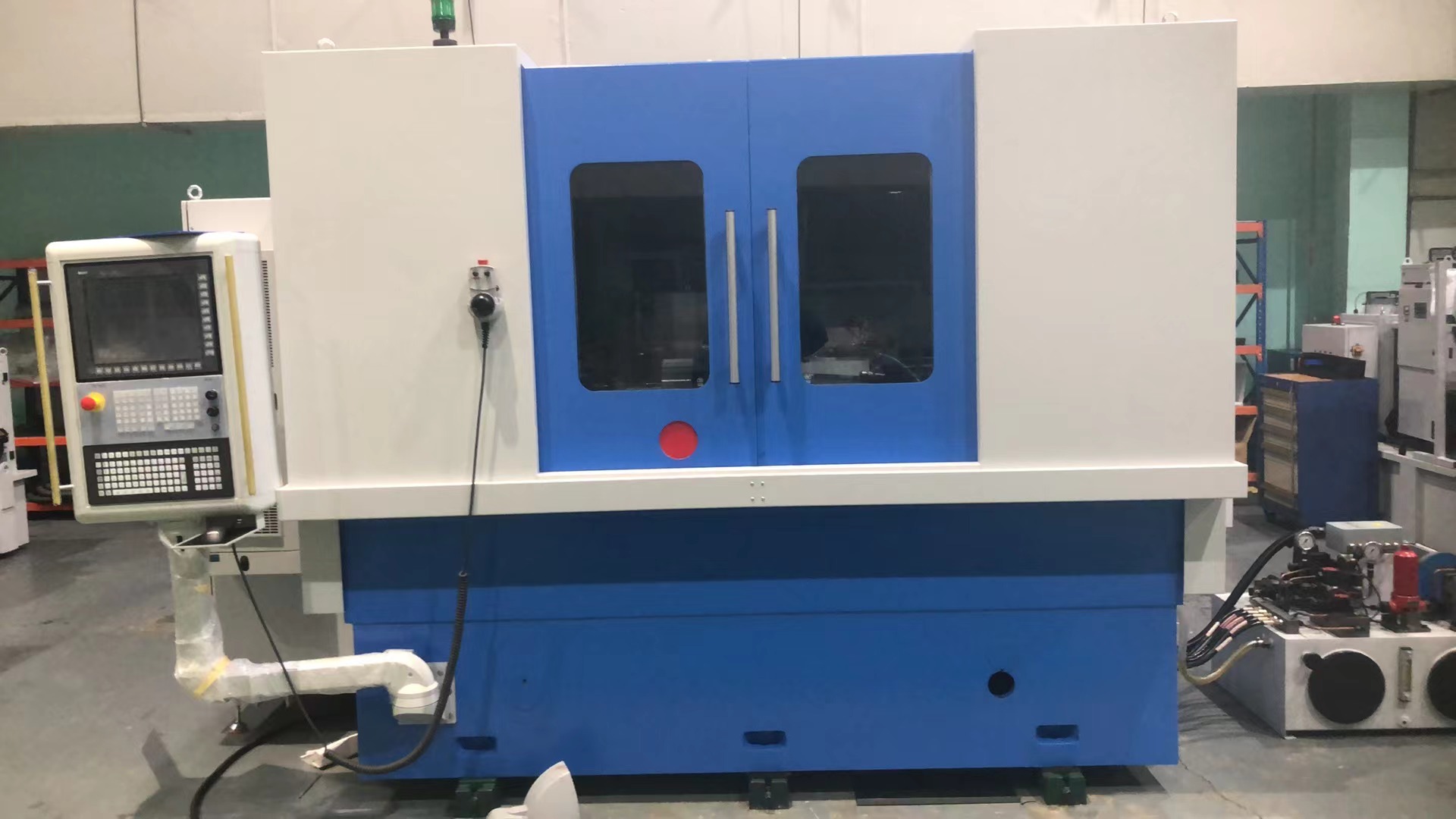

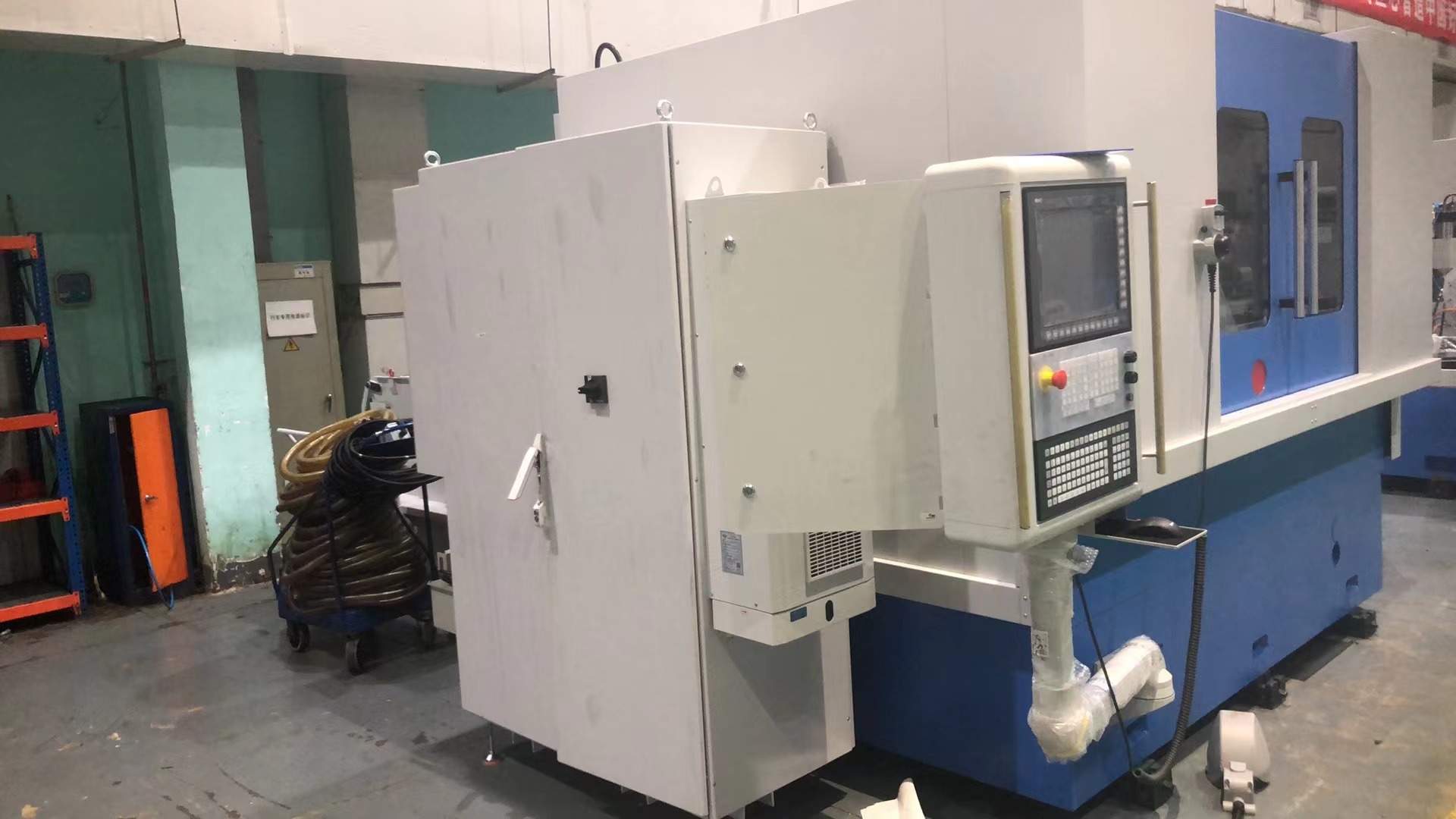

YK7380A
REFNE
Max.machining outisde diameter
Φ800mm
Minimum root diameter
Φ100mm
Number of workpiece teeth
No limit
Workpiece modulus
2～25mm
Max teeth width（spur gear ）
500mm
Spiral Angle range
±45°
Grinding toll power
35KW(max)
Grinding wheel diameter
Φ400-300mm
Grinding wheel thickness
80mm(max)
Grinding wheel linear speed
50m/s(max)
Table loading
2000kg(max)
Maximum (minimum) center distance
200～680mm
Maximum axial travel of skateboard
150mm
Maximum travel of drag plate
550mm
Minimum distance between grinding wheel center and table
350mm
Worktable diameter
Φ650mm
Height between tail frame and table
700-1200mm

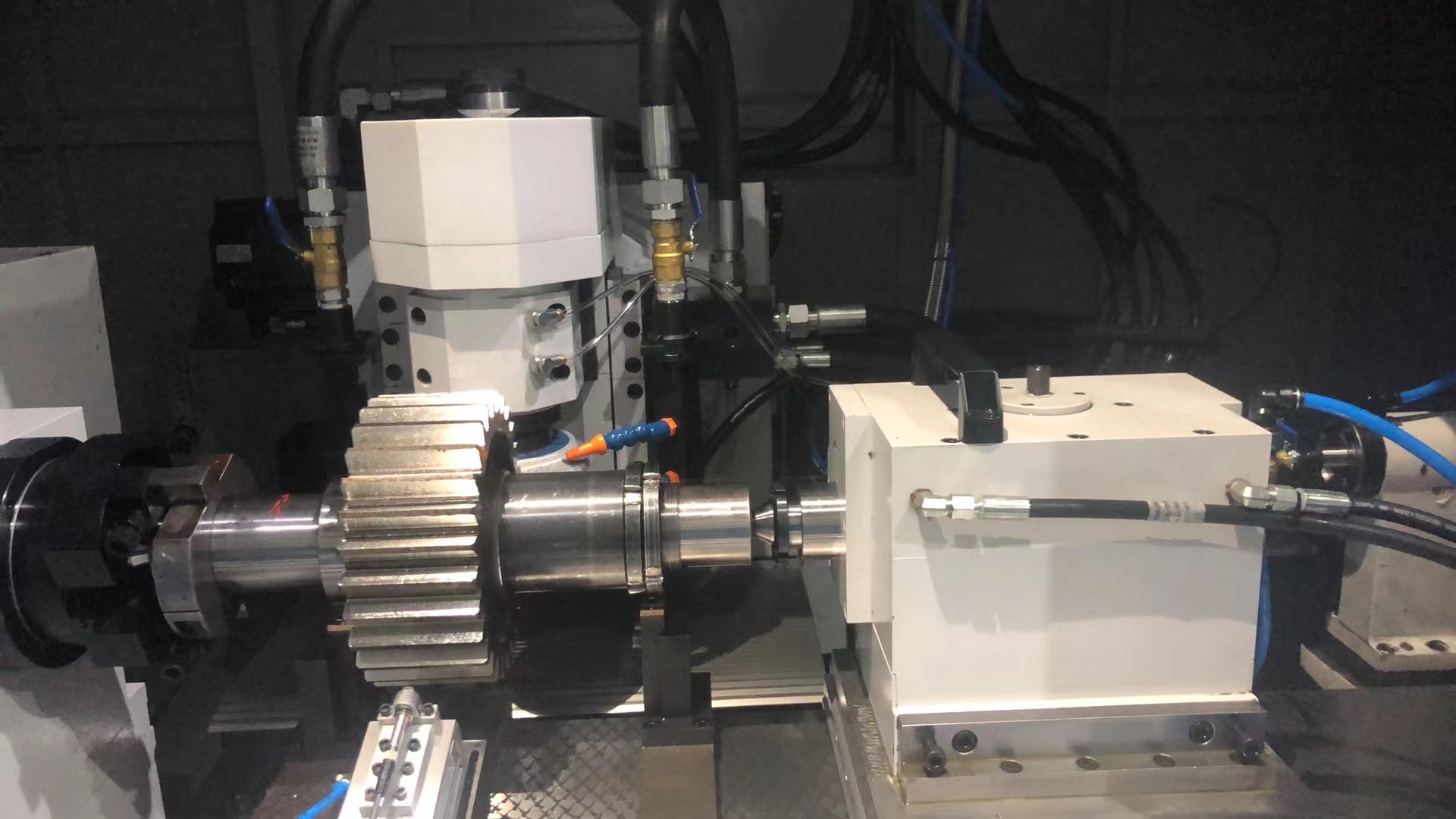

CNC axes of the machine
Axial moving axis of front worktable along workpiece-Z axis
Radial feeding axis of column along workpiece-X axis
Axial moving axis of grinding wheel-Y axis
Rotary axis of headstock-C axis
Rotary axis of grinding wheel pallet-A axis
Rotary axis of grinding wheel-S axis
Rotary axis of diamond roller-S1 axis
Axes in simultaneous motion X axis, Z axis, C axis.
