What are the types of gears? Did you know that gears are the backbone of countless machines? From vehicles to manufacturing systems, they play a crucial role in transmitting motion and torque.
In this article, we’ll dive into the different types of gears, their unique features, and where they’re used across various industries. Whether you're designing machinery or simply curious, this guide will help you understand the importance of gears in mechanical systems.
What is a gear? A gear is a mechanical component made of cylindrical or conical surfaces with teeth that mesh with the teeth of other gears. These teeth help transmit rotational motion and force efficiently from one gear to another.
Gears are essential for converting rotary motion into different forms of mechanical power. By adjusting the speed and transmitting torque across shafts, they ensure smooth and effective power transfer. This is why they are crucial in so many machines.
From vehicles and industrial equipment to mining machinery and energy systems, gears are everywhere. In automotive systems, for example, gears help control vehicle speed and torque. In manufacturing, they allow for precise machinery operation, while in mining, they’re part of heavy-duty machines handling high loads.
They’re found in a variety of industries because of their efficiency in transferring motion. Gears help machines run smoothly, providing the right amount of force and speed for specific tasks. Without gears, many of the machines we rely on would not function properly.
The design and configuration of gears are crucial for their performance. Factors such as tooth profile, number of teeth, and the angle of tooth contact directly influence the gear’s efficiency, torque transmission capabilities, and suitability for various applications. Different gear types are designed to meet specific needs, from high-speed operations to heavy-duty machinery.
What are spur gears?Spur gears are cylindrical gears with straight teeth that are parallel to the shaft axis. They are the most common type of gear used in various machines. These gears are easy to manufacture and offer high efficiency in transmitting power between parallel shafts.
Applications: Spur gears are used in a wide range of applications such as clocks, washing machines, and conveyors. However, they tend to produce more noise at high speeds because of the sudden engagement of the teeth.
Limitations: Spur gears cannot handle axial loads. In addition, they are noisier than other gear types like helical gears.
What makes helical gears different from spur gears?Helical gears have teeth that are cut at an angle, allowing for multiple tooth engagements at once. This feature results in smoother, quieter operation and better torque handling. They are ideal for high-speed, high-torque applications.
Applications: Helical gears are commonly used in automotive transmissions, heavy machinery, and enclosed gear drives due to their quiet and efficient operation.
Thrust Load Consideration: Unlike spur gears, helical gears generate an axial thrust, which requires the use of thrust bearings for stability.
What are bevel gears and when are they used?Bevel gears are conical in shape, used to transmit power between shafts that intersect at an angle, usually 90°. They are available in straight, spiral, and hypoid variations. Spiral bevel gears, in particular, provide smoother operation and higher efficiency.
Types: Bevel gears include straight bevel, spiral bevel, and hypoid gears. Spiral bevel gears are often used in high-performance applications where reduced vibration and noise are important.
Applications: Bevel gears are commonly found in automotive differential systems, industrial gearboxes, and various heavy-duty equipment.
Thrust Forces: Spiral bevel gears and hypoid gears generate thrust forces in the axial direction, which needs to be managed through proper bearing support.
What are worm gears and how do they work?A worm gear system consists of a worm (a screw-shaped gear) and a worm wheel. Worm gears are designed to transmit power at right angles, providing a high reduction ratio in a compact form. The worm’s unique design allows for self-locking capabilities, making them ideal for applications where back-driving is not desired.
Applications: Worm gears are often used in applications where space is constrained, such as in elevators, conveyor systems, and automotive steering mechanisms.
Limitations: Worm gears tend to have lower efficiency because of the sliding friction between the worm and the worm wheel. Proper lubrication is essential to reduce friction and ensure smooth operation.
What are planetary gears and how do they distribute torque?Planetary gears consist of a central sun gear, planetary gears, and an internal gear. This arrangement allows for multiple gear ratios in a compact system, distributing the load evenly across the gears. This design ensures high efficiency, increased torque output, and low noise levels.
Applications: Planetary gears are widely used in automatic transmissions, robotics, and electric motors. Their compact size and high torque capacity make them suitable for precision machinery.
Advantages: Planetary gears offer exceptional torque capacity, minimal noise, and better load distribution, making them ideal for high-performance and space-constrained systems.
How do rack and pinion gears work?Rack and pinion systems use a flat gear (the rack) and a cylindrical gear (the pinion) to convert rotational motion into linear motion. This mechanism is commonly used to provide motion in straight lines, unlike other gears that transmit power in rotational motion.
Applications: Rack and pinion gears are used in automotive steering systems, as well as in robotics, CNC machines, and trains. They are a common choice for applications requiring precise linear motion.
What are internal gears and how do they differ from external gears?Internal gears are gears that have teeth on the inside of a cylindrical surface. These gears mesh with external gears, which allows for more compact designs and reduced space requirements in gear systems.
Applications: Internal gears are commonly used in planetary gear systems, offering a more compact solution for machinery that operates in tight spaces. They are also used in systems where the rotational direction of the internal and external gears must be the same.
Advantages: Internal gears provide higher torque transmission due to the larger contact area between meshing gears. They are more efficient in confined spaces and ideal for systems requiring compact designs.
What are double helical and herringbone gears?Double helical gears consist of two helical faces with a gap separating them, while herringbone gears feature adjacent teeth without a gap. Both designs help eliminate axial thrust, offering smoother and quieter operation than single helical gears.
Applications: These gears are ideal for heavy-duty applications in industries like mining, automotive, and manufacturing, where high torque and smooth operation are essential.
Advantages: Double helical and herringbone gears reduce axial thrust, lower noise levels, and improve efficiency in high-load applications.
Why use plastic gears?Plastic gears are lightweight, cost-effective, and provide excellent noise-damping properties. They are ideal for applications with low to medium torque, offering a more affordable and quieter alternative to metal gears.
Applications: Plastic gears are commonly used in toys, small appliances, cameras, and electronic equipment where weight and cost are important considerations.
Limitations: While plastic gears offer many benefits, they are not as durable as metal gears and are not suitable for high-torque applications.
When selecting the right gear for your machinery, several important factors come into play. The key is understanding your system's specific requirements to ensure the gear operates efficiently and reliably. Here are some of the most crucial considerations:
The material of the gear significantly impacts its performance. For heavy-duty applications, metal gears are typically preferred due to their durability and ability to handle high torque loads. Steel, cast iron, and stainless steel are common choices for such applications.
For lighter applications, plastic gears can be an excellent option. They offer cost savings, reduced weight, and noise-damping qualities. However, they are not suitable for heavy torque applications due to their lower load-bearing capacity.
Determining the right gear ratio is critical for matching the speed and torque requirements of your machinery. A gear ratio tells you how many times the driving gear needs to turn to rotate the driven gear by one full revolution.
High Gear Ratio: Useful for increasing torque while reducing speed. Ideal for applications like lifting or moving heavy loads.
Low Gear Ratio: Used for applications that require high speed but lower torque, such as in fans or pumps.
Choosing the correct gear ratio ensures your system functions at optimal efficiency, balancing power output and speed.
The shaft configuration refers to the positioning of the gears' shafts relative to one another. Depending on the alignment, you may choose from three main configurations:
Parallel Shafts: Gears are aligned so that their shafts run parallel. Spur and helical gears typically fall under this category.
Intersecting Shafts: The shafts meet at an angle. Bevel gears are often used in these situations.
Non-Parallel and Non-Intersecting Shafts: For shafts that neither run parallel nor intersect, gears like worm gears are used.
Each configuration affects how power is transmitted through the system, so it's essential to select the configuration that best suits your application’s geometry and space constraints.
Choosing the right gear for your machinery requires a balance between these factors. Understanding your application’s requirements and considering the material, gear ratio, and shaft configuration will guide you to the most efficient and reliable gear solution.
Gears are manufactured using various processes, depending on their material, size, and required precision. The key manufacturing methods include casting, hobbing, grinding, and heat treatment. Let’s take a closer look at each one:
Casting: In casting, gears are formed by pouring molten metal into a mold. This process is typically used for larger gears or those with complex shapes. Casting allows for the production of gears with good strength but often requires additional machining for fine details.

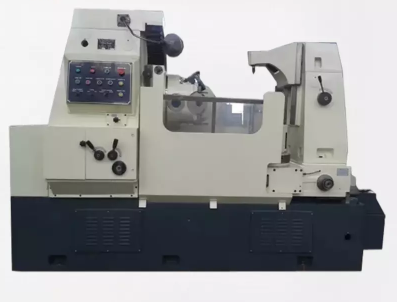

Hobbing: Hobbing is a widely used method for making gears. It involves a rotating cutting tool (the hob) that progressively cuts the teeth into the gear blank. This process is precise and efficient, making it ideal for producing large batches of gears, especially spur gears and helical gears.

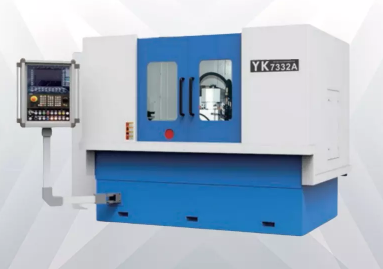

Grinding: For gears that require high precision, grinding is used. This process involves a rotating wheel that removes material from the gear blank to create very fine teeth. It’s often used for gears that need to meet strict tolerance requirements, such as those used in high-performance machinery.
Heat Treatment: Heat treatment processes like hardening and tempering are crucial for improving the strength and durability of gears. By heating and cooling the gear to specific temperatures, the material properties are enhanced, increasing wear resistance and toughness.
Precision is a critical factor in gear manufacturing. Small errors in the gear’s shape or teeth can lead to poor performance, excessive wear, and even failure of the gear machine. Gears must be produced to tight tolerances to ensure smooth meshing between gear teeth, proper load distribution, and minimal friction.
Even slight inaccuracies in the gear teeth profile, pitch, or alignment can cause inefficiency, increased noise, and vibrations during operation. Therefore, the gear manufacturing process must carefully control factors like tooth spacing, surface finish, and alignment to achieve optimal performance.
In high-precision applications such as aerospace, automotive transmissions, and robotics, the manufacturing process must meet stringent standards to ensure that gears perform reliably over time. Quality control and measurement tools are often used throughout the production process to maintain these high precision levels.
The combination of these manufacturing methods and the focus on precision ensures that gears can meet the demands of various industrial applications, from simple machines to complex gear systems.
Gears are vital in modern technology, forming the backbone of many mechanical systems. They ensure efficient motion, torque, and power transmission.
Advancements in gear design and materials have allowed gears to meet the demands of various industries, making them essential for machines, vehicles, and equipment across the globe.
A: Gears come in various types, including spur gears, helical gears, bevel gears, worm gears, and planetary gears, each designed for specific applications.
A: Precision ensures smooth gear operation and proper load distribution. Material choice, such as metal for heavy-duty use and plastic for lighter applications, impacts durability and performance.
A: Bevel gears transmit power between intersecting shafts, usually at 90°, and are available in straight, spiral, and hypoid types.
A: Gears convert rotary motion and transmit torque, allowing efficient power transfer between shafts and enabling precise machine operation.
A: Gears are made using casting, hobbing, grinding, and heat treatment processes, each chosen based on the gear’s size, material, and required precision.
