Are you unsure whether to choose a 3-axis or a 4-axis VMC for your next project? Understanding the key differences between these two machining technologies can significantly impact your production efficiency. In this post, we’ll discuss the capabilities of both 3-axis and 4-axis VMCs, and help you determine which is best suited for your needs.

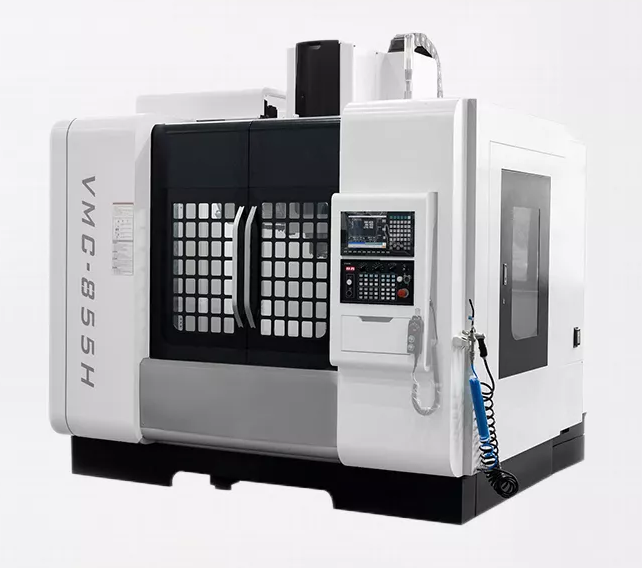

A3-axis VMC (Vertical Machining Center) is a type of CNC machine that moves the cutting tool along three different axes: X, Y, and Z. These machines are designed to perform precision cutting, drilling, and milling on a workpiece. The movement along these axes allows for the production of parts with varying depths and shapes.
X-axis: Moves the tool left and right across the horizontal plane.
Y-axis: Moves the tool forward and backward, also horizontally.
Z-axis: Moves the tool vertically, up and down.
These three movements allow the tool to reach different parts of the workpiece, shaping it with great accuracy.
A 3-axis VMC operates by moving the cutting tool in three directions: along the X, Y, and Z axes. The workpiece is usually fixed, and the cutting tool moves to create the desired shapes. The cutting tool can move across flat surfaces or in deep, narrow cavities, making it suitable for machining a variety of basic parts.
Movement of the Cutting Tool: The cutting tool moves along the X, Y, and Z axes to cut material precisely.
Movement of the Workpiece: The workpiece is typically held stationary, and the tool does the work.
Simplicity of Programming: Programming a 3-axis VMC is straightforward, especially for basic operations like drilling and milling.
3-axis VMC machines are ideal for simpler machining tasks, such as:
Cutting flat surfaces.
Drilling holes.
Creating basic 2D and 2.5D shapes.
Milling planar profiles.
These tasks are commonly found in industries such as automotive, aerospace, and prototyping.
Cost-Effective: 3-axis machines are cheaper to purchase and operate than their multi-axis counterparts.
Simple Setup: These machines are easy to program and operate, especially for beginners.
Quick Turnaround: Fast setup and less complexity make them ideal for low-volume production runs.
Ideal for Basic Parts: Perfect for creating parts with simple shapes or shallow cuts.
3-axis VMCs are best suited for scenarios where:
Low-Volume Production: When you’re working on small batches, 3-axis machines are ideal due to quick setup times and lower costs.
Simple Geometries: Parts with basic 2D or 2.5D designs are perfect for 3-axis VMCs.
Prototyping: Great for creating prototypes, where parts need to be made quickly and at a low cost.
Small Businesses: If you’re just starting or running a small operation, 3-axis VMCs provide a budget-friendly option to produce straightforward parts.
These machines allow for fast production and minimal setup, making them a go-to choice for simple machining tasks.

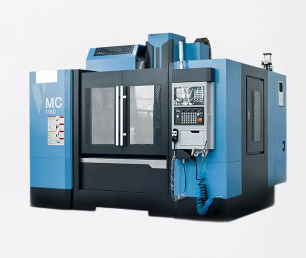

A 4-axis VMC (Vertical Machining Center) is a CNC machine that adds a rotational axis to the standard 3-axis setup. Along with the X, Y, and Z axes, it includes the A-axis, which allows the workpiece to rotate around the X-axis. This added motion enables more complex machining processes that would be difficult or impossible with a standard 3-axis machine.
The A-axis provides rotation for the workpiece, typically by 360 degrees around the X-axis. This extra movement lets the machine access areas on the workpiece that would require multiple setups on a 3-axis VMC. The A-axis opens up new possibilities, such as milling angled features without needing to reposition the part.
The addition of the A-axis transforms the machining process, allowing the workpiece to rotate while the cutting tool follows linear paths along the X, Y, and Z axes. This movement enables the tool to cut from multiple angles without needing to reposition the part. The result is a smoother, more efficient process for creating parts with complex geometries.
Movement of the Cutting Tool and Workpiece: The workpiece rotates around the A-axis, while the cutting tool moves along X, Y, and Z, cutting different angles of the part.
Types of Fixtures: Fixtures used for 4-axis VMCs must hold the workpiece securely while allowing it to rotate. Common types include rotary tables and indexing fixtures.
Improved Efficiency: Fewer setups are required, which saves time and increases productivity.
Greater Flexibility: Can machine complex shapes and angled features that 3-axis machines cannot.
Enhanced Precision: Reduces the chance for errors when repositioning the workpiece between setups.
Cost-Effective for Complex Parts: Although more expensive than 3-axis machines, they save on fixture costs and setup time for multi-sided machining.
4-axis VMCs are ideal for projects that require:
Complex Geometries: Parts with angles or features that need to be machined on multiple sides.
Cam Lobes and Helical Milling: Tasks where continuous rotation and tool movement are necessary for smooth, curved surfaces.
Multi-Side Machining: Reduces the need to stop and reposition parts, saving significant time and improving accuracy.
Medium to Large-Scale Production: Ideal for mass production of complex parts that require precise, consistent results.
4-axis VMCs excel in situations where speed, accuracy, and the ability to work on complex parts are important. They provide the versatility needed to tackle a wide variety of machining tasks.
| Feature | 3-Axis VMC | 4-Axis VMC |
| Movement | Moves along X, Y, and Z axes in linear fashion. Workpiece stays stationary. | Adds A-axis (rotation around X-axis) for additional flexibility. Workpiece rotates. |
| Types of Machining | Ideal for basic 2D and 2.5D tasks like drilling, milling flat surfaces. | Can handle complex geometries, such as angled surfaces, cam lobes, and helical milling. |
| Programming Complexity | Simple programming, straightforward tasks. | More complex programming due to the addition of the A-axis rotation. |
| Part Positioning | Requires repositioning of the workpiece to access different faces. | Workpiece rotates, allowing access to multiple faces in one setup. |
| Machining Efficiency | Requires multiple setups and fixture changes. | Fewer setups needed, machining multiple sides in one setup, more efficient. |
| Precision and Tolerances | Multiple fixture changes can introduce errors in tolerance. | Reduced fixture changes improve precision and maintain tighter tolerances. |
| Cost Efficiency | More affordable upfront but may incur higher fixture and setup costs. | Higher initial cost but can save on fixtures and setup time for complex parts. |
| Applications | Suitable for simple parts with flat surfaces, low-volume production, and prototypes. | Ideal for complex parts with multiple sides, medium to large production runs. |
Choosing between a 3-axis and 4-axis VMC depends on several factors. Here’s what you need to consider before making a decision:
3-Axis VMC: Best for simple parts with flat surfaces, holes, or basic profiles. Ideal for low-volume production and prototypes.
4-Axis VMC: More suitable for parts requiring multiple angled features, such as cam lobes, helical milling, or multi-side machining. It’s perfect for more complex parts.
3-Axis VMC: Great for small production runs or when working on prototypes. Lower setup times make it efficient for low-volume tasks.
4-Axis VMC: Ideal for medium to large production volumes. Its ability to machine multiple sides of a part in one setup reduces overall production time.
Simple Parts: A bracket or plate that only requires drilling and milling on one face is best suited for a 3-axis VMC. The machine’s simplicity and lower cost make it ideal for straightforward tasks.
Complex Parts: A part with a helical surface or a cam lobe that requires access to multiple sides would benefit from a 4-axis VMC. This machine can complete the job in fewer setups, improving both efficiency and accuracy.
When deciding between the two, assess the parts you’ll be making, the complexity of the tasks, and how much production volume you expect to handle.
A: By rotating the workpiece during machining, the 4-axis VMC reduces the need for repositioning. This minimizes errors from fixture changes, ensuring higher precision and more accurate parts.
A: 3-axis VMCs are limited in handling complex geometries like compound angles or deep cavities. These features are better suited for 4-axis VMCs, which allow multi-side machining in one setup.
A: Upgrading to a 4-axis VMC offers better machining efficiency, reduces fixture costs, and handles complex parts. Consider the complexity of your parts and budget when deciding.
A: Industries such as aerospace, automotive, and medical manufacturing commonly use both 3-axis and 4-axis VMCs. 3-axis is ideal for simple parts, while 4-axis excels in more complex and multi-sided components.
3-axis VMCs are ideal for simple parts and low-volume production, while 4-axis VMCs excel in handling complex geometries and multi-sided machining. Choosing the right VMC depends on the type of parts, production volume, and budget. For more intricate tasks, a 4-axis machine offers greater efficiency, while a 3-axis machine is cost-effective for straightforward projects. Select the VMC that best suits your business needs and part complexity.
