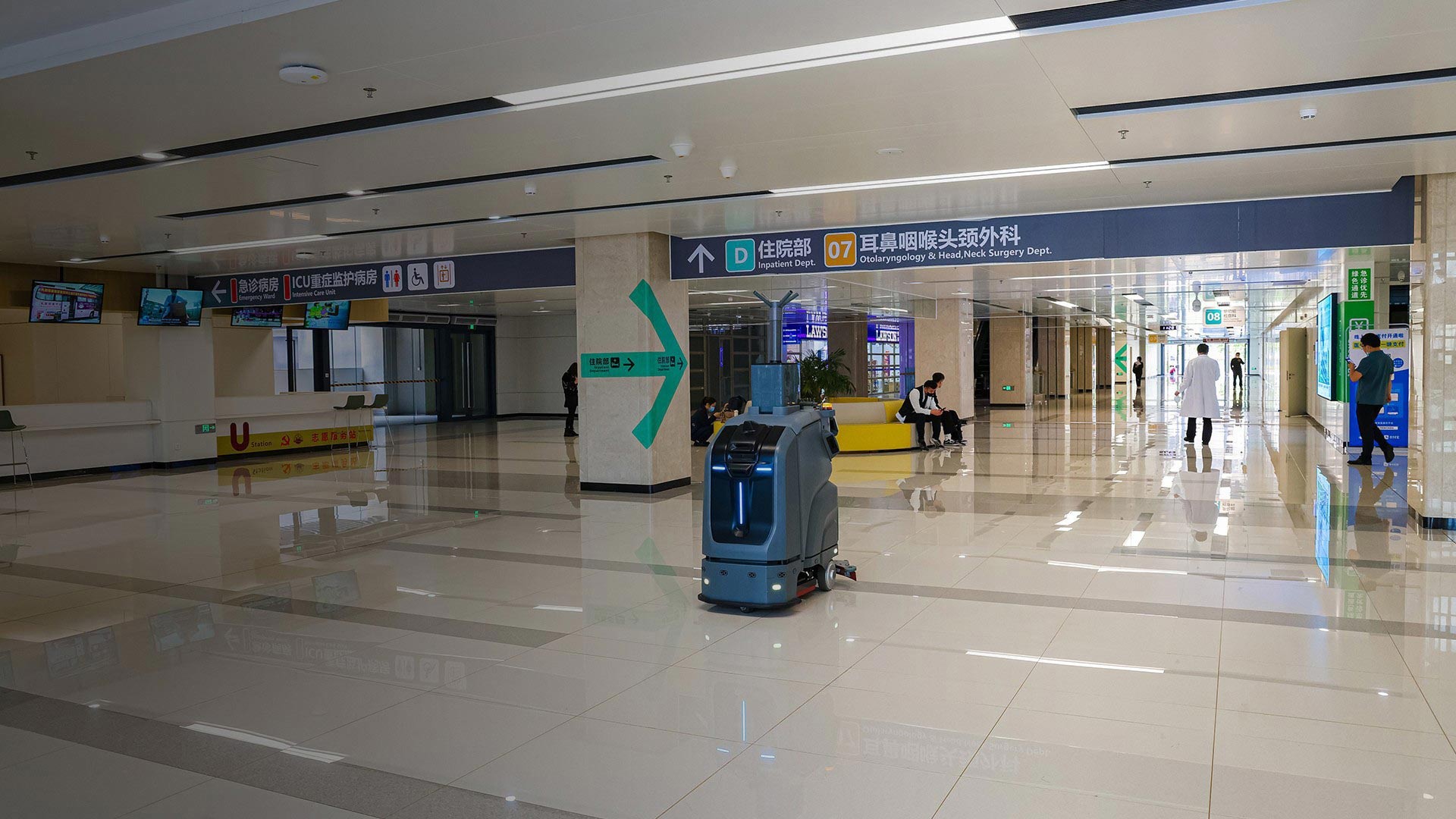

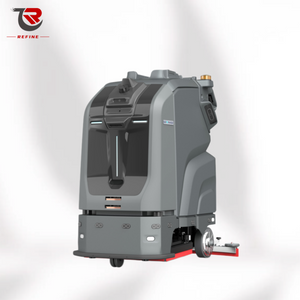

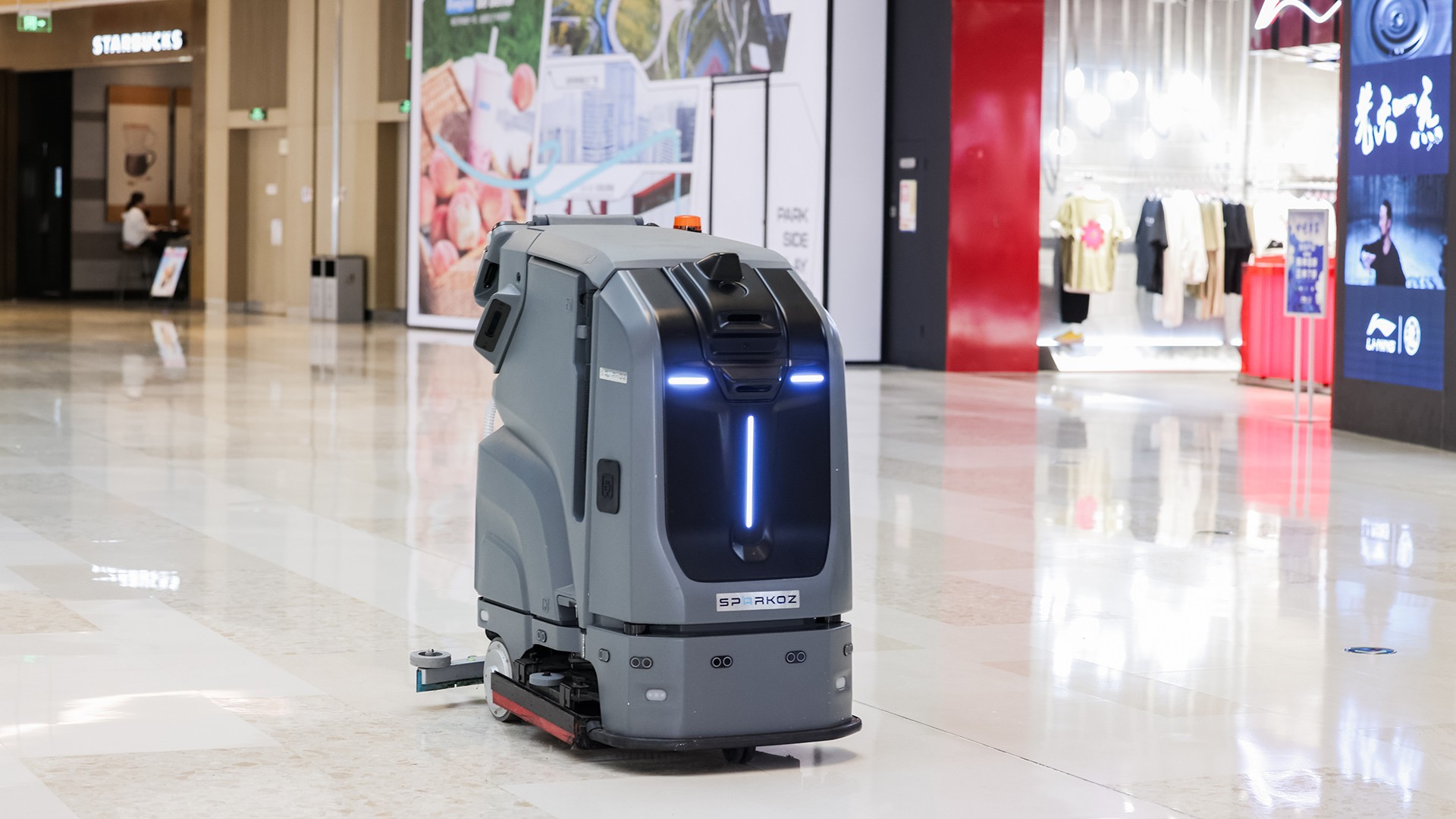

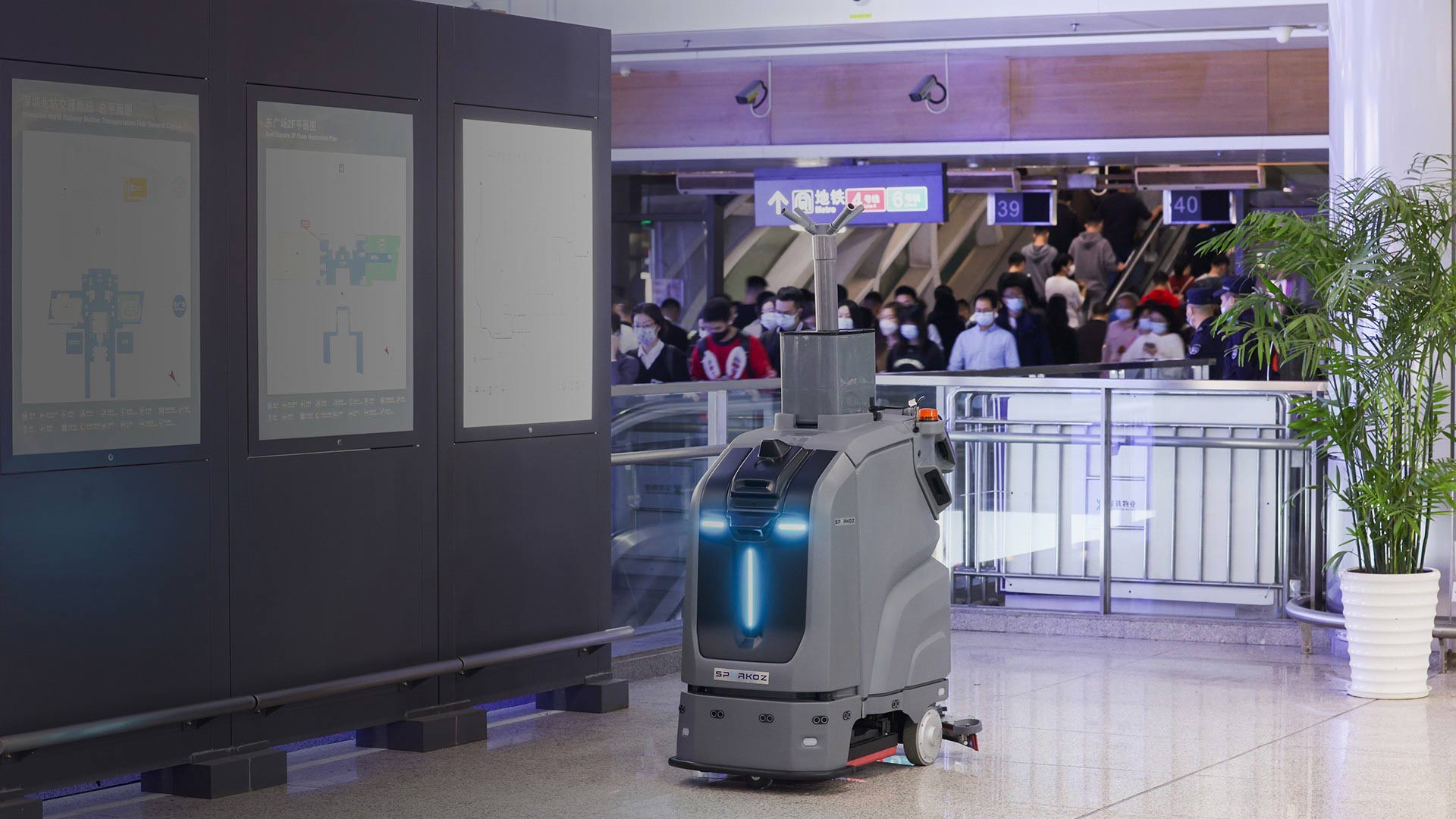

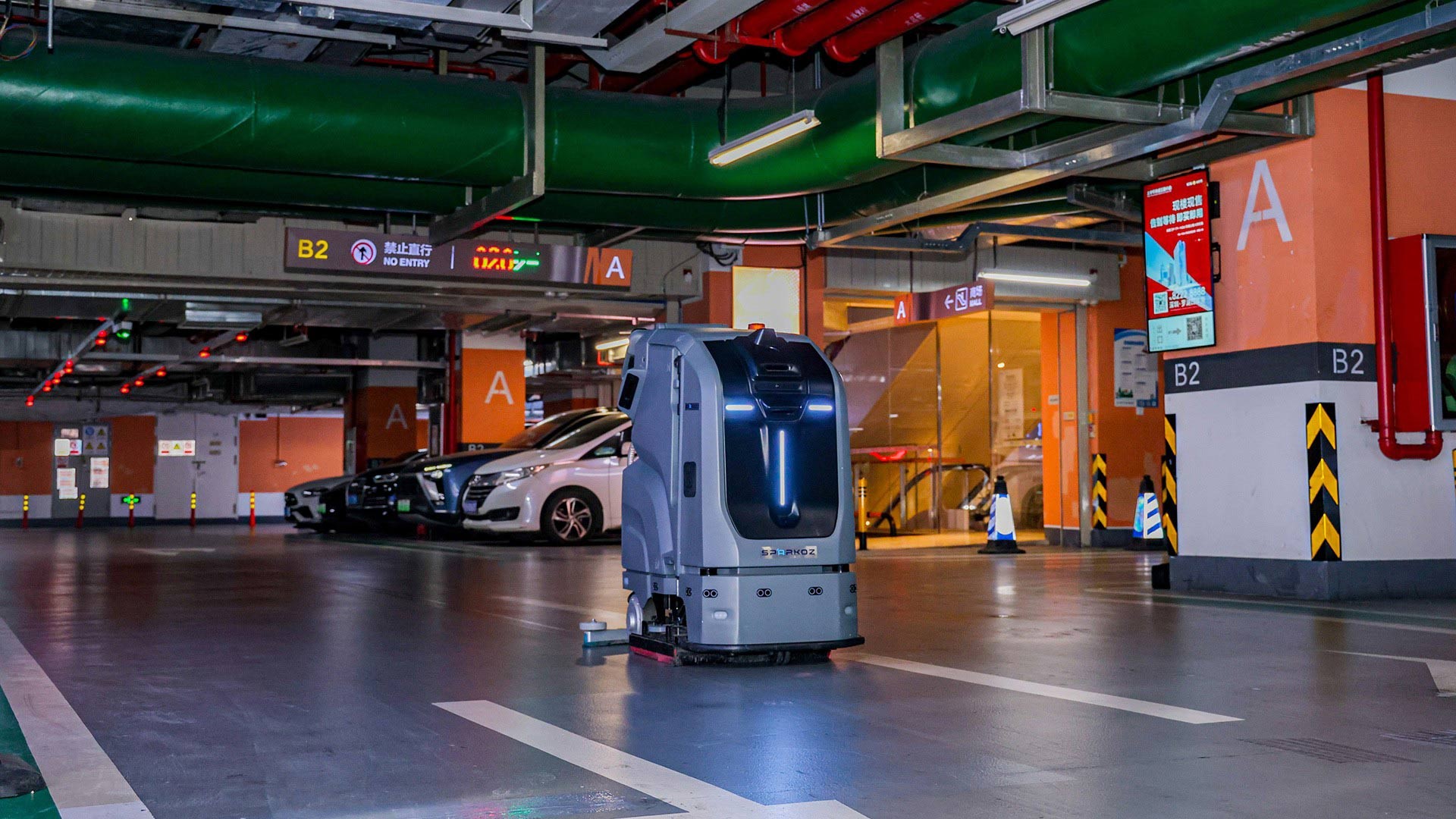

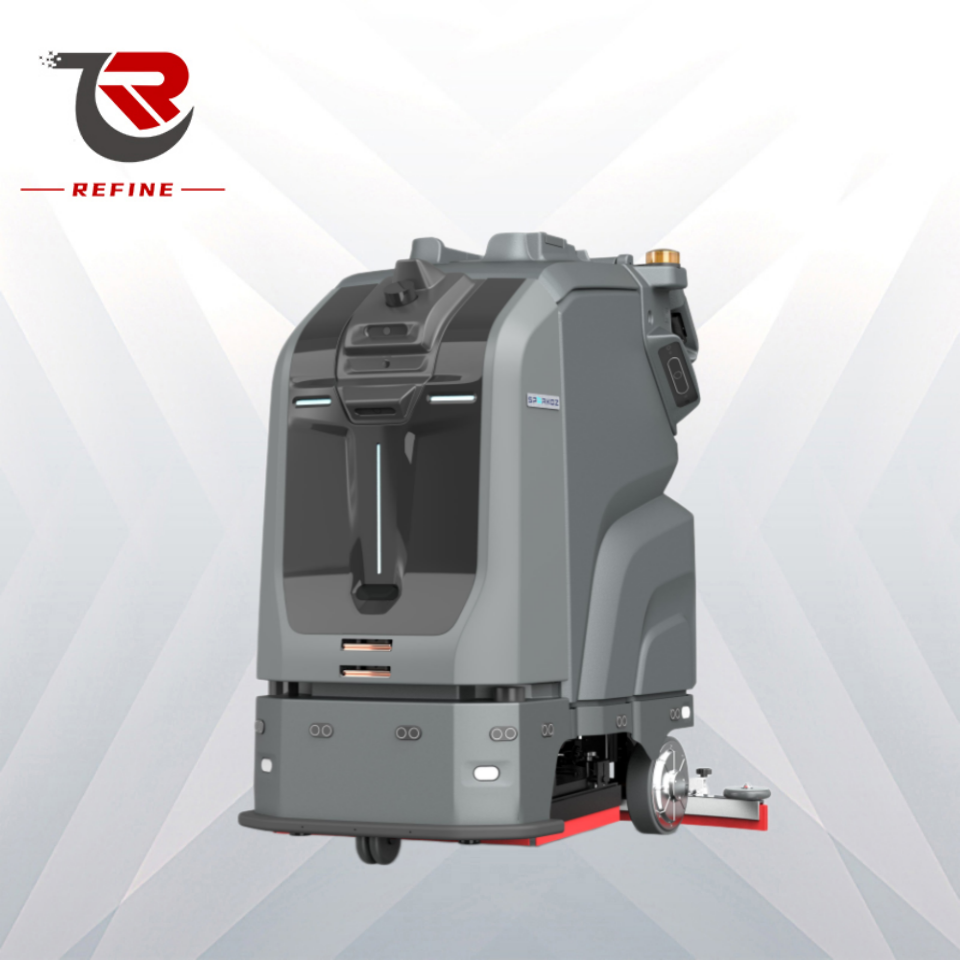

TN70-PRO
SPARKOZ
Disinfection & Purification with Versatile Functions
It boasts a high degree of independent R&D, with all core components self-developed, including navigation algorithms, robot control platform, 3D-ToF depth camera, high-speed single-line LiDAR and single-point laser.
Cost Reduction & Efficiency Improvement for Enterprises
By optimizing solution design and replacing imported foreign parts with self-developed components, we significantly cut down the robot’s manufacturing and maintenance costs, delivering tangible cost savings and productivity gains for customers.
Intelligent Management, Simple Interaction
Automatically generate visual cleaning reports and support multi-dimensional data analysis.
Realize full transparency of robot information to simplify supervision, operation and maintenance.
Consumable management function provides regular maintenance references to help customers boost operational efficiency.
SMS alerts will be sent upon faults or task completion without interrupting users’ other work.
One-click online OTA software upgrade to continuously improve working efficiency.
Clean and intuitive human-machine interface, easy for anyone to operate at a glance
Specifications Item | Details |
Dimension(L*W*H) | 45.7" 22.8" 47.6" / 116 cm 58 cm 121 cm |
Gross Weight | 439 lbs (199 kg) |
Battery | DC 25.6 V / 120 Ah / 100 Ah |
Charging Options | Charging Dock / Workstation / Manual Charger |
Max Cleaning Efficiency | 21,960 ft²/h (2040 m²/h) |
Max Operation Hour | 3.6 h Scrub /12 h DustMop |
Ground Pressure | 60 lbs (27 kg) / 0.19 psi (13.2 g/cm²) |
Solution Tank Volume | 18.5 gal (70 L) |
Recovery Tank Volume | 13.2 gal (50 L) |

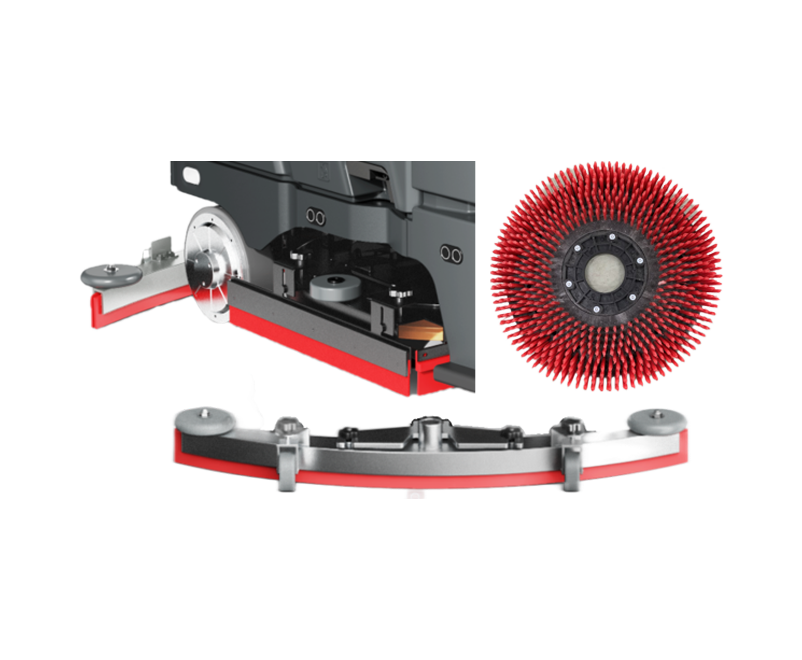

Brush Cleaning Width | 20" (51 cm) |
Squeegee Assembly Width | 32" (81 cm) |
Climbing Ability | 6 % |
Noise | 75 – 80 dB (A) |
Maximum Velocity | 2.68 mph (1.2 m/s) |
Cleaning Part Distance To Side | <9.8" (25 cm) |
Operating Temperature | 0℃ – 40℃ (32℉ – 104℉) |
Disinfect Fogger | Optional, 6.5 liter, 1.2 L/h |
Manual Drive | Standard |
Cloud Platform | Standard |
Sensors | IMU / Electronic Bumper Strip / Ultrasonic Sensors / |
