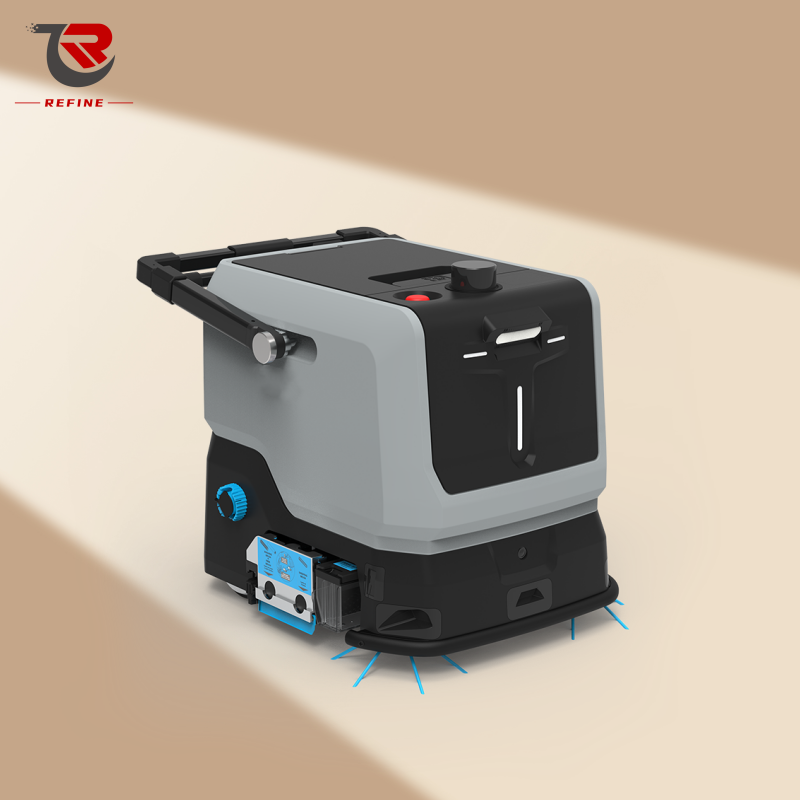

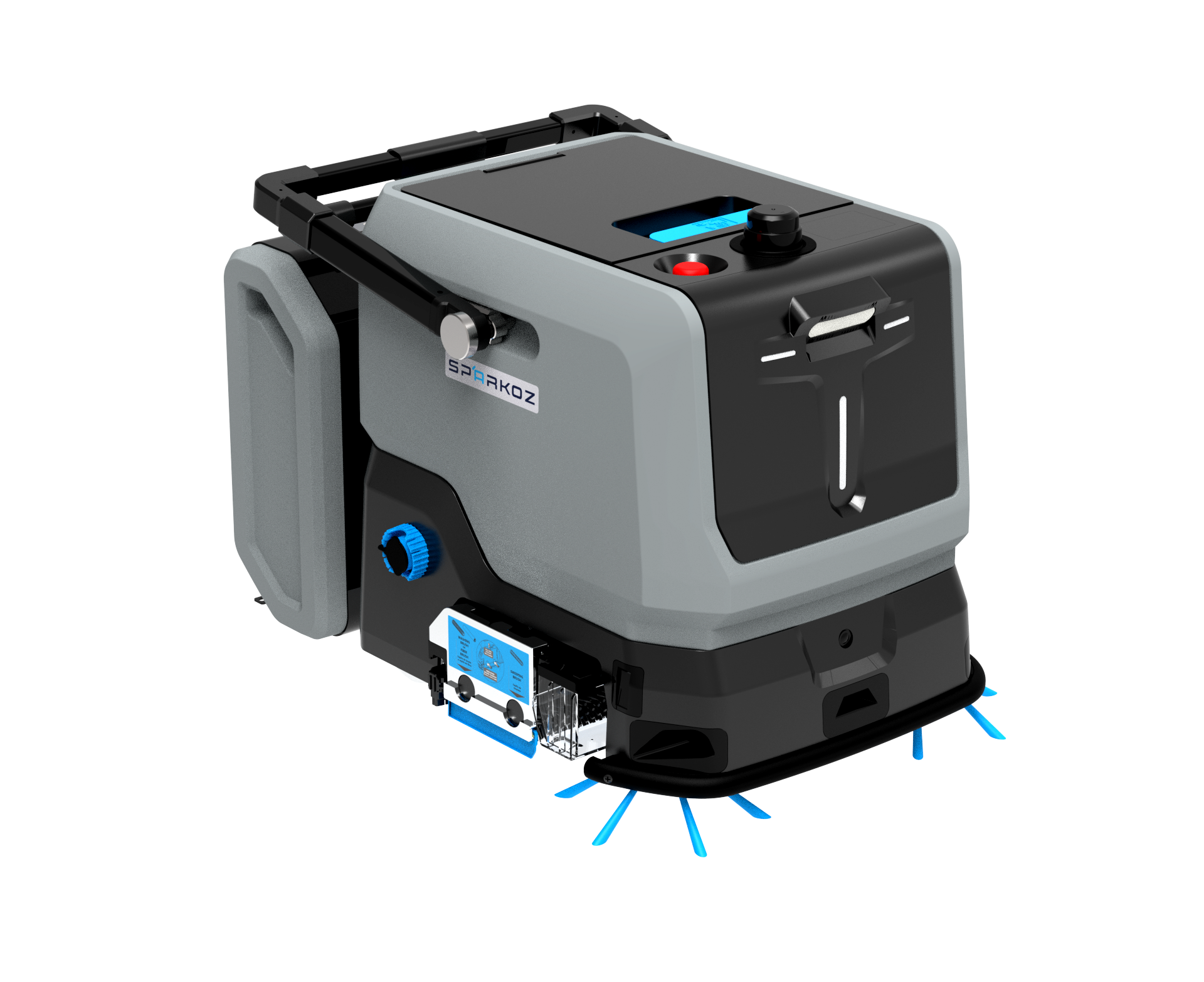

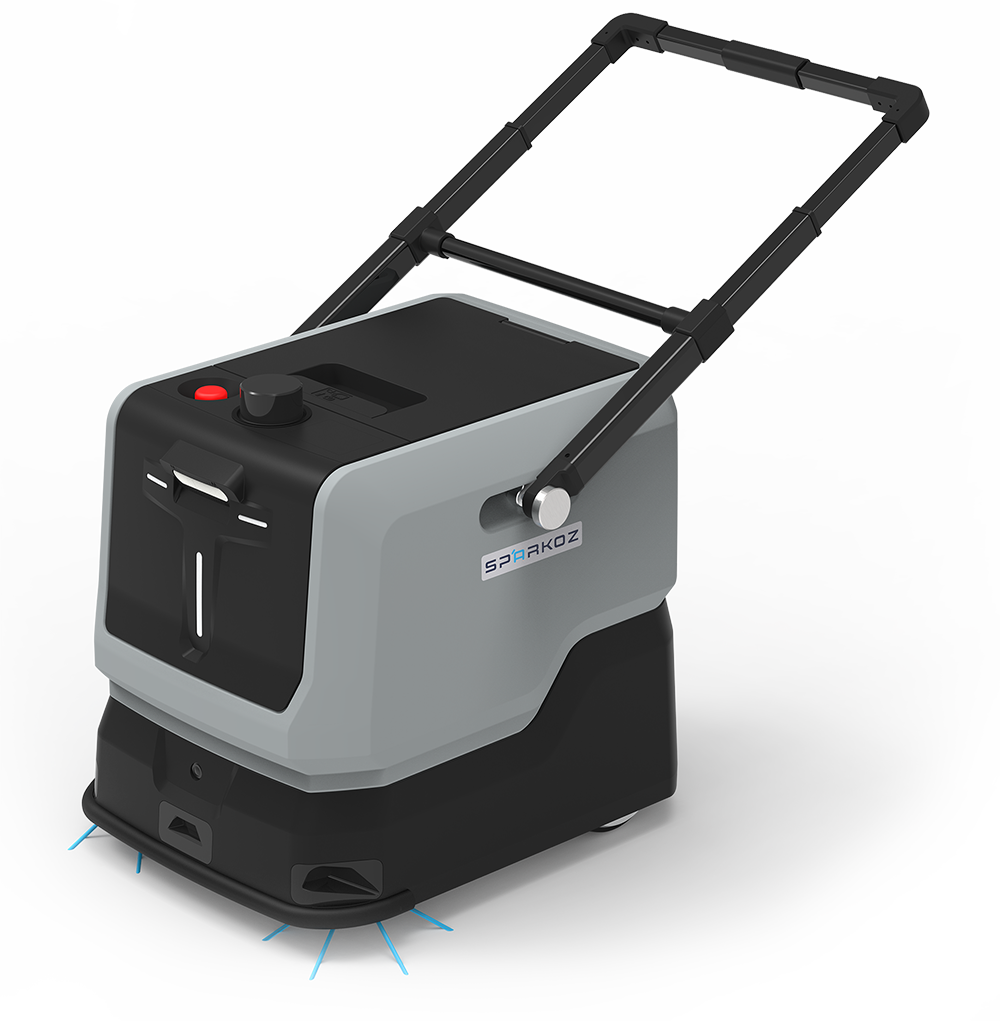

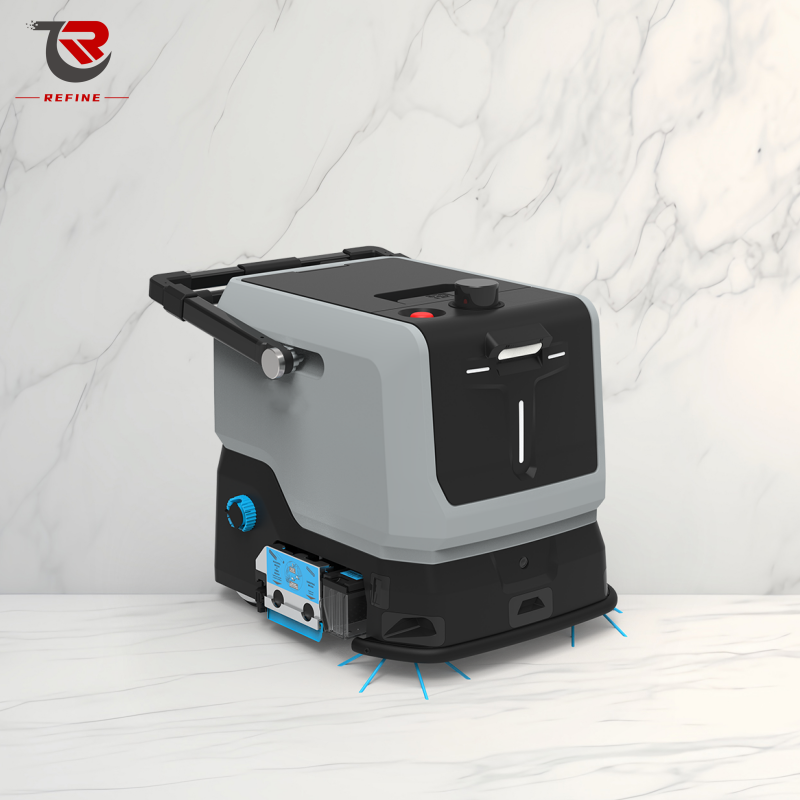

TN10-PRO
SPARKOZ

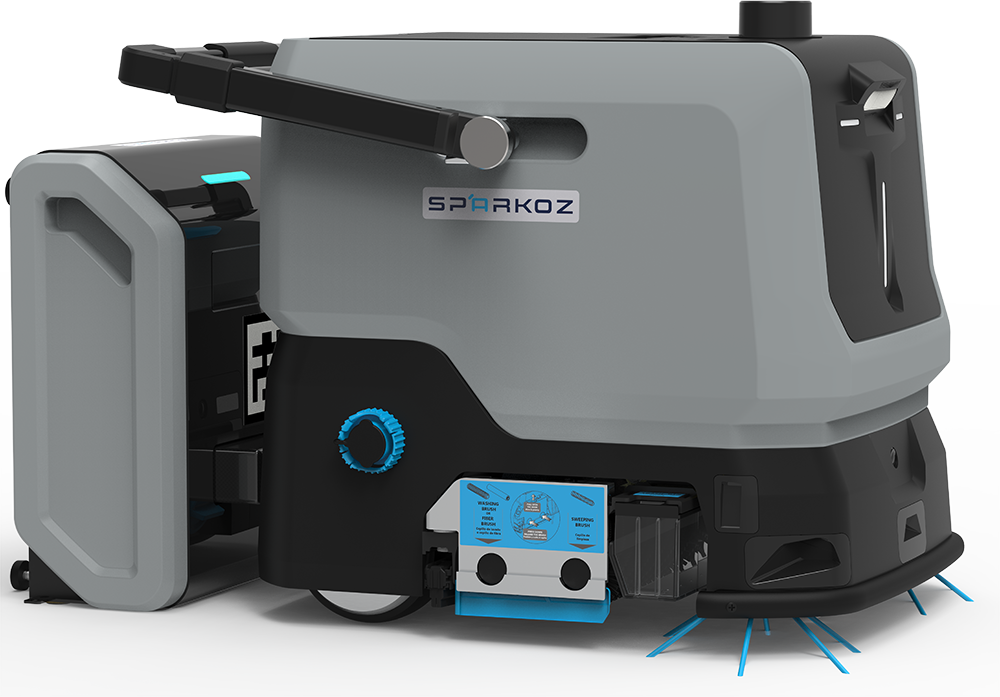

Ø The automatic workstation ensures multiple 100% autonomous cleaning missions per day.
Ø Optional Manual Mode, with convenient telescoping handle.
Ø Detailed mapping technology enables systematic coverage and customized cleaning schedules.

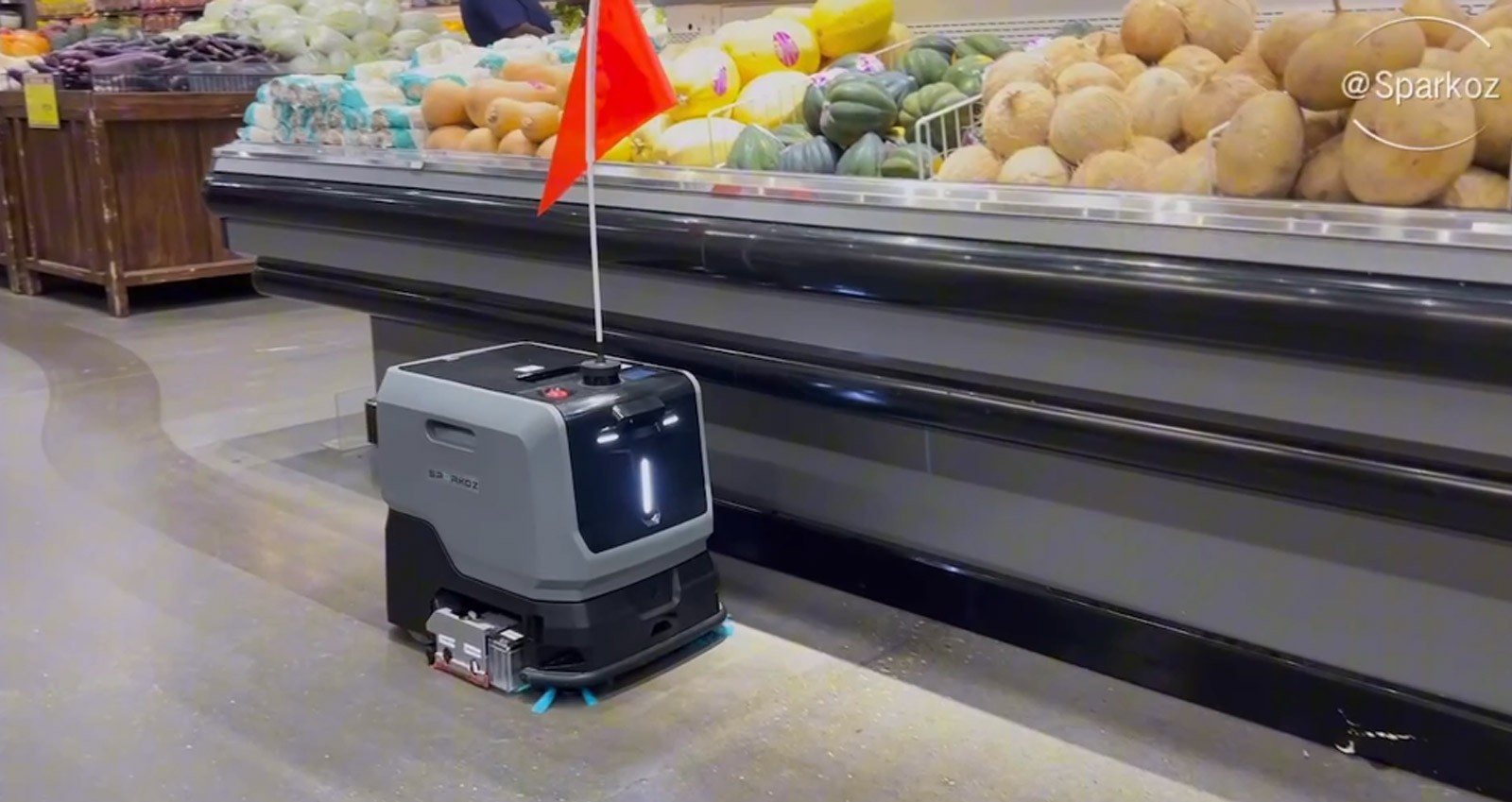

Ø Quiet operation and compact design suitable for offices, retail, and commercial spaces.
ITEM | SPECIFICATION |
Dimension(L/W/H)（外形尺寸 长 × 宽 × 高） | 20.5" 16.5" 19.3" / 52 cm 42 cm 49 cm |
Battery（电池） | DC 25.6 V / 20 Ah |
Charging Time（充电时长） | <2 hours（小于 2 小时） |
Battery Run-Time（续航时间） | 3 – 8 hours（3 至 8 小时） |

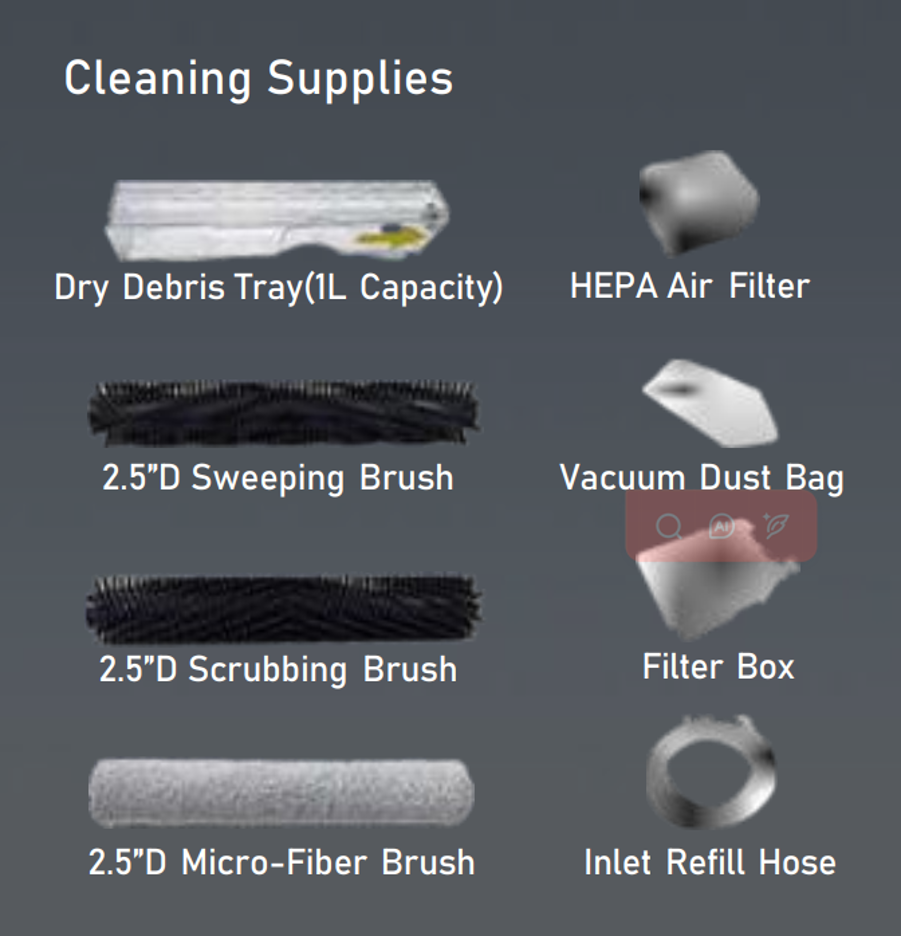

Brush Head Type（刷盘类型） | Double roller brush（双滚刷） |
Brush Cleaning Width（刷盘清洁宽度） | 13.7" (35 cm) |
Rotating Speed of Brush（滚刷转速） | 0–700 RPM |
Gross Weight（整机自重，无水） | 57 lbs (26 kg)（without water） |
Climbing Ability（爬坡能力） | 10 % (Transport 转运模式) / 6 % (Cleaning 清洁模式) |
Max Cleaning Efficiency（最大清洁效率） | 8,138 ft²/h (756 m²/h) |
Edge Distance（贴边距离） | 0 cm |
Quiet Operation（工作噪音） | <65 dB (A) |
Solution Tank Volume（清水箱容积） | 2.6 gal (10 L) |
Recovery Tank Volume（污水箱容积） | 2.6 gal (10 L) |
Trash Bin Capacity（垃圾收纳盒容量） | 0.26 gal (1 L) |
Ground Pressure（对地压力） | 0.56 psi (39.6 g/cm²) |
Maximum Velocity（最大行走速度） | 1.34 mph (0.6 m/s) |
Operating Temperature（工作环境温度） | 0℃ – 40℃ (32℉ – 104℉) |
Manual Drive（手动推行） | Standard（标准配置） |
Cloud Platform（云端管理平台） | Standard（标准配置） |
Sensors（搭载传感器） | Solid State Line Lidar / IMU / Electronic Bumper Strip / 2D-Lidar / Liquid Level Sensor / Speaker / Odometer / 3D TOF / Monocular Camera 固态线激光雷达、惯性测量单元、电子防撞条、二维激光雷达、液位传感器、扬声器、里程计、3D 飞行时间传感器、单目摄像头 |

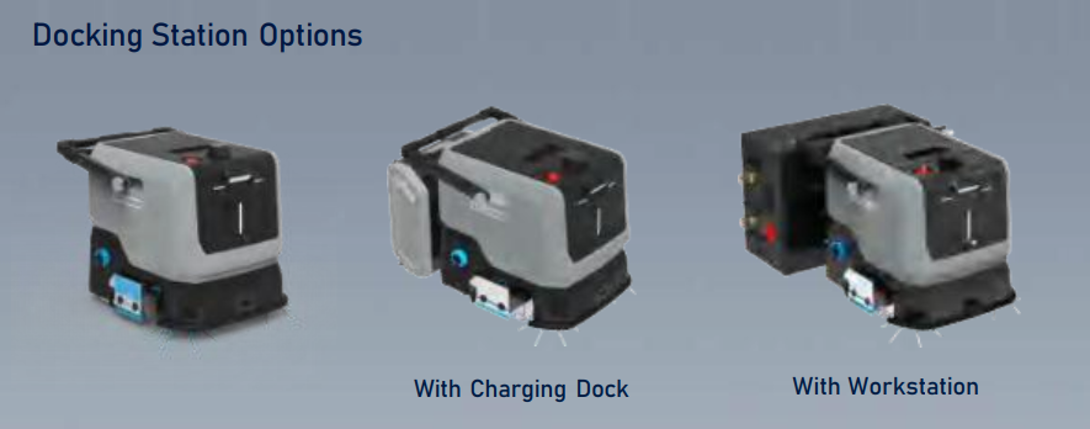

ITEM | CHARGING DOCK | WORKSTATION |
Dimension (LWH) | 14" 7.5" 14" 35.7cm 19cm 37.5cm | 22" 10" 17" 55cm 25cm 44cm |
Clean Water Tank Capacity | — | — |
Recovery Tank Capacity | — | — |
Wastewater Tank Capacity | — | 1.06 gal / 4 L |
Maximum Drainage Rate | — | 1.06 gal/min or 4 L/min |
Input Voltage | AC 85~264V | AC 85~264V |
Output Voltage | DC 29.2V | DC 29.2V |
Operating Temperature | 0 – 40°C / 32-104°F | 0 – 40°C / 32-104°F |
Operating Humidity | ≤90% RH (40°C) | ≤90% RH (40°C) |
Storage Temperature | — | — |
Communication Method | — | Bluetooth |
Protection Level | — | IPX4 |
