TK6513 CNC Boring and Milling Machine for Sale

MAIN INTRODUCTION

According to the requirements of users, with different systems, different precision, different turntable size, can form different grades of different specifications of machine tools. It is a universal machine tool with the most widely used, belonging to one of the large and wide machine tools, its working performance is mainly boring and milling, but also can be drilled, reaming, milling and other processes of processing, especially suitable for processing porous system, hole spacing requirements more accurate box parts, frame class, mold class parts processing, the workpiece after a clamping, Automatically complete milling, boring, drilling, reaming, milling, tapping and other processes. It can realize five-axis control, four-axis linkage, arc interpolation and 3D surface machining.

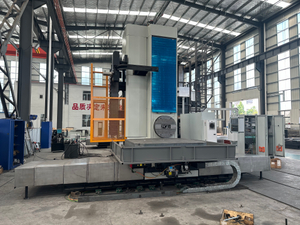

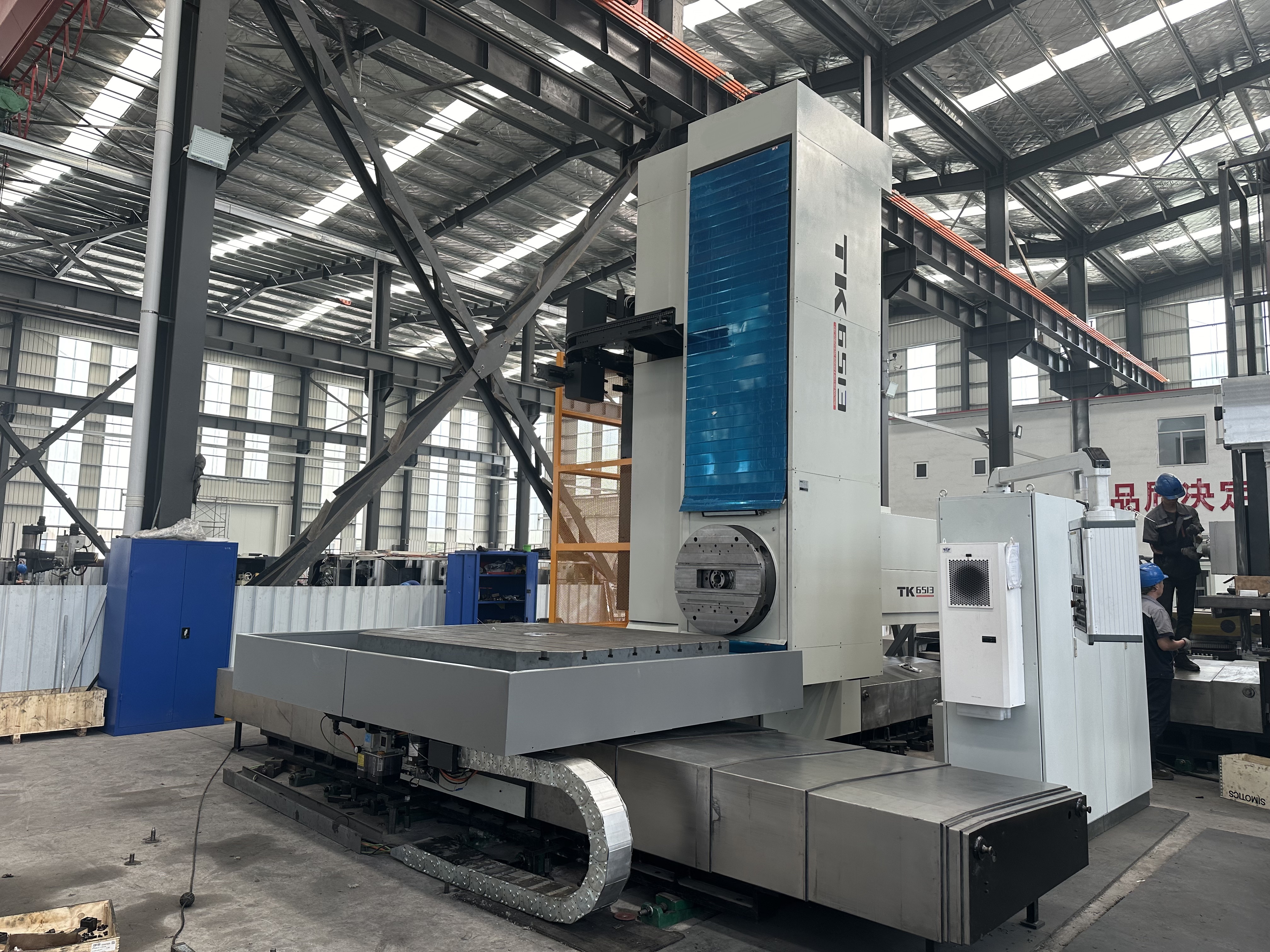

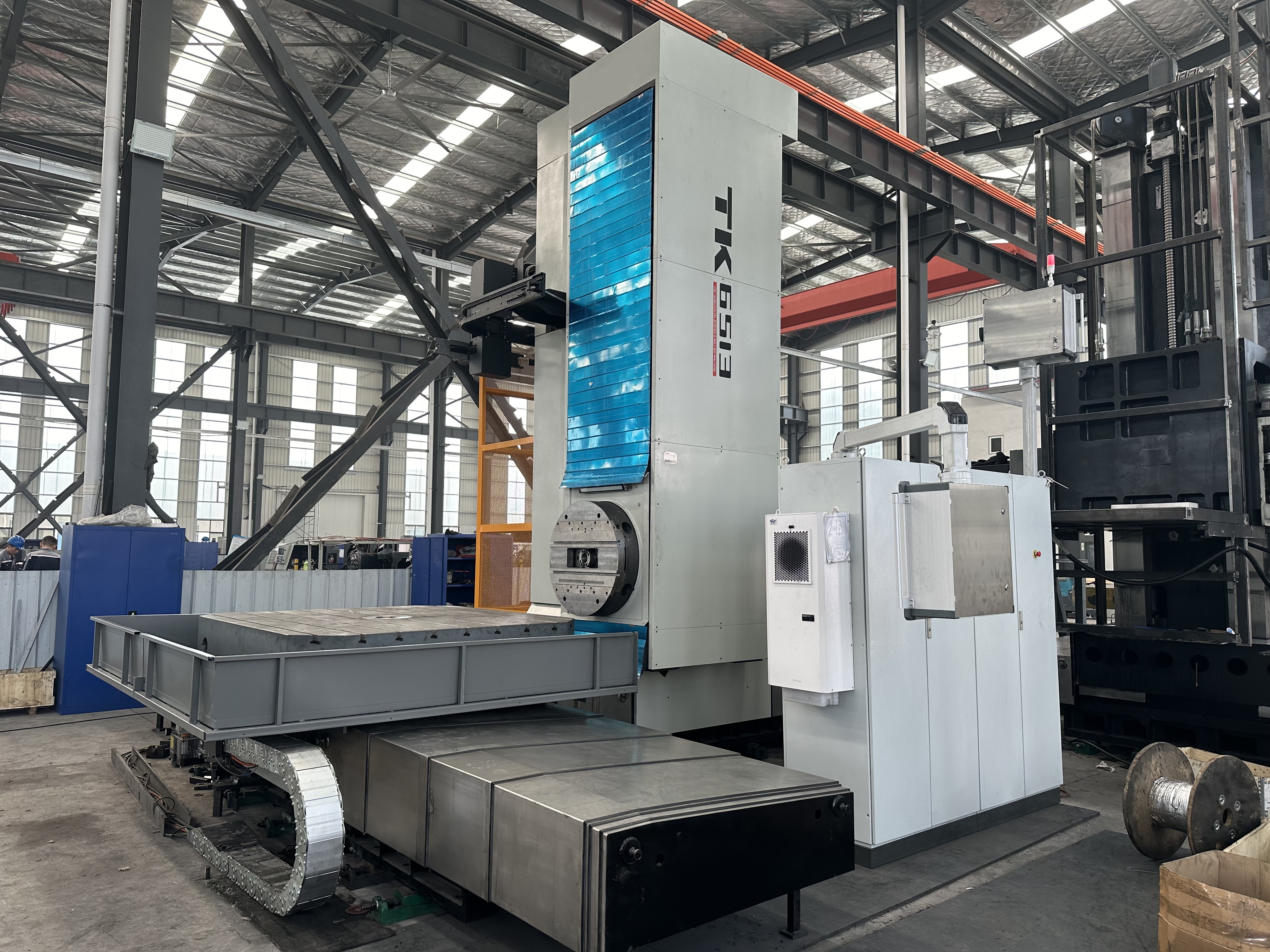

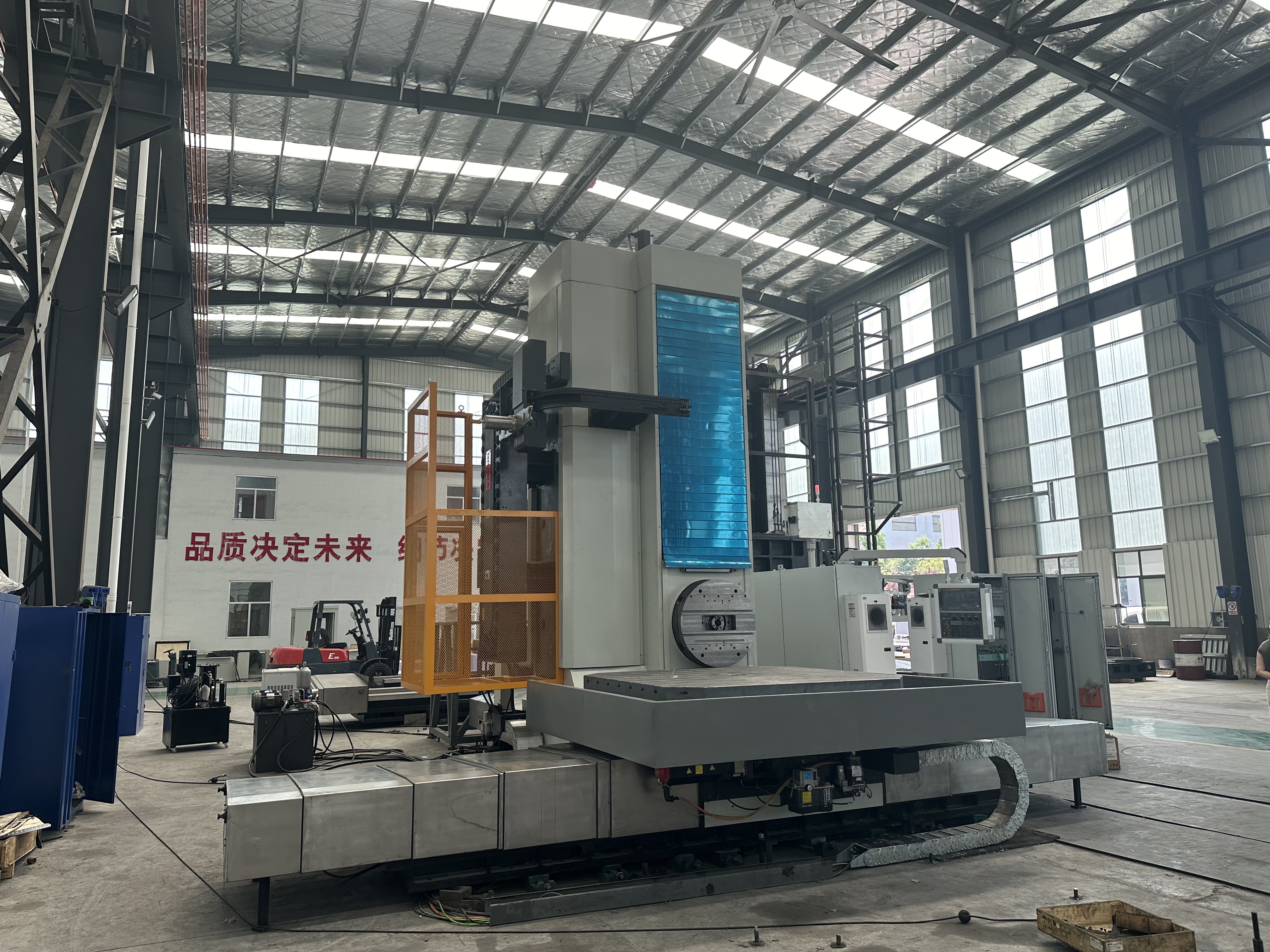

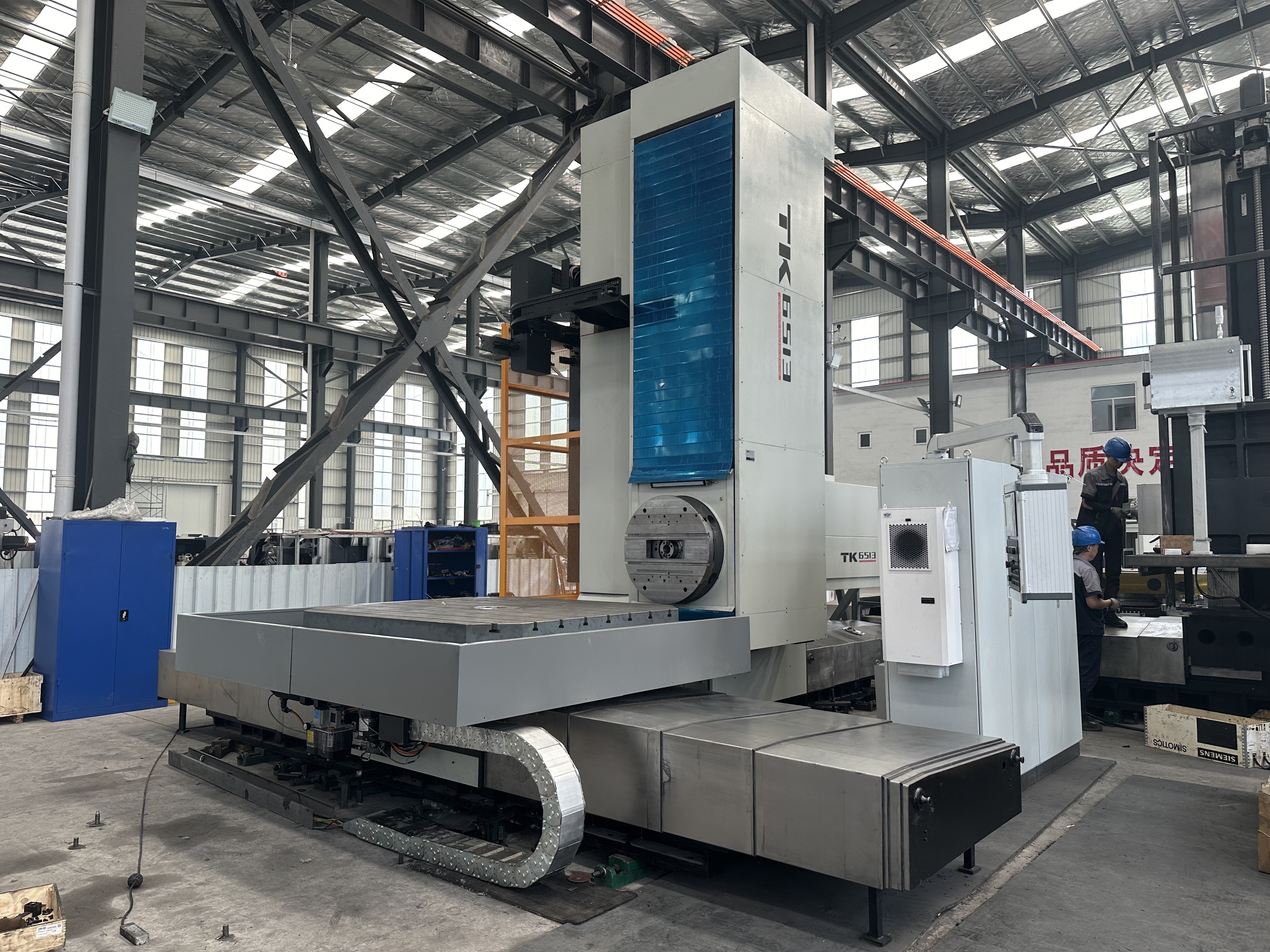

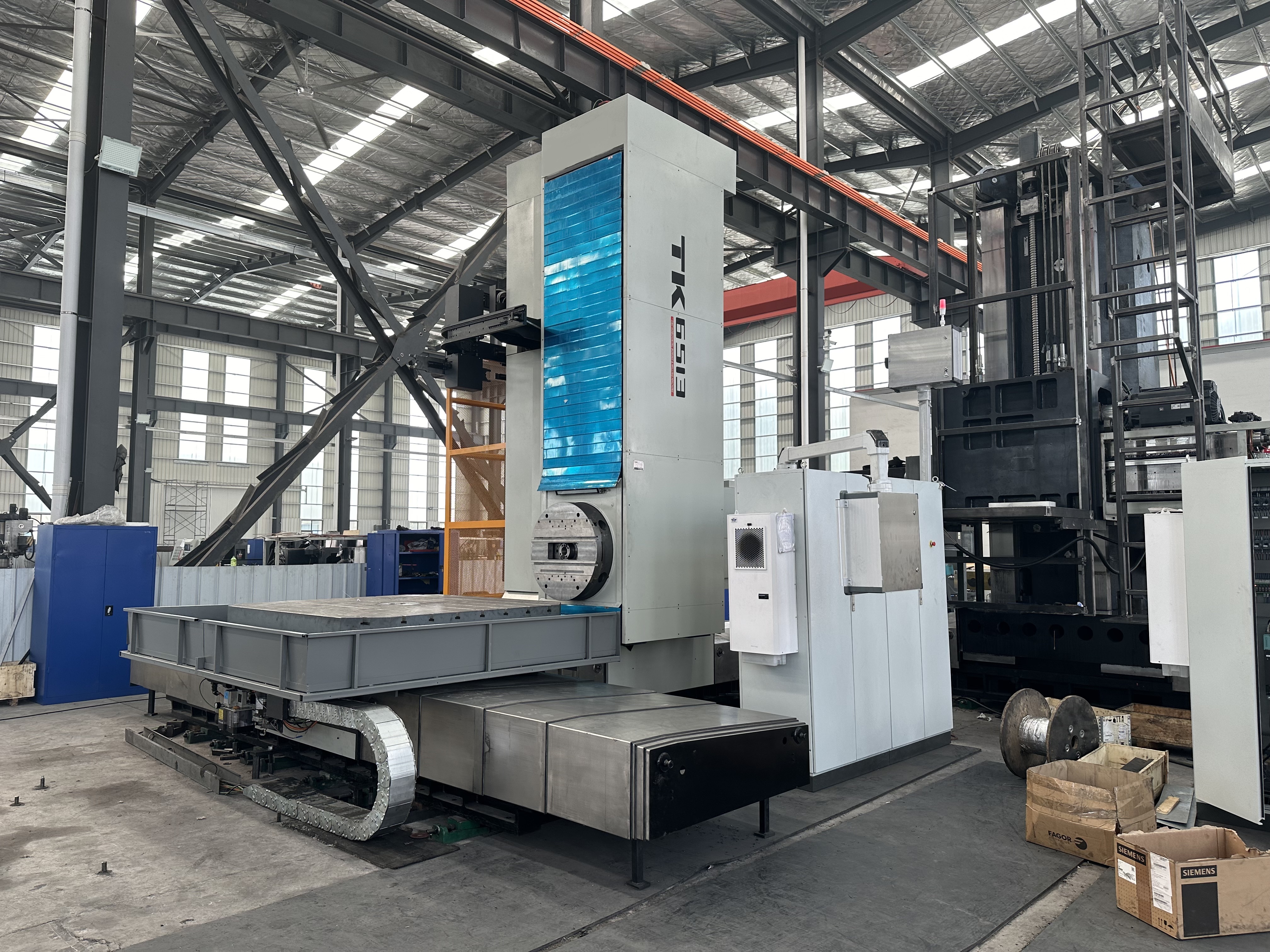

The overall design layout of the machine tool is vertical and horizontal bed is T-shaped structure, the column moves vertically, the table moves horizontally, the spindle box moves up and down, the table does rotary movement, there is no square ram, only the spindle moves before and after.

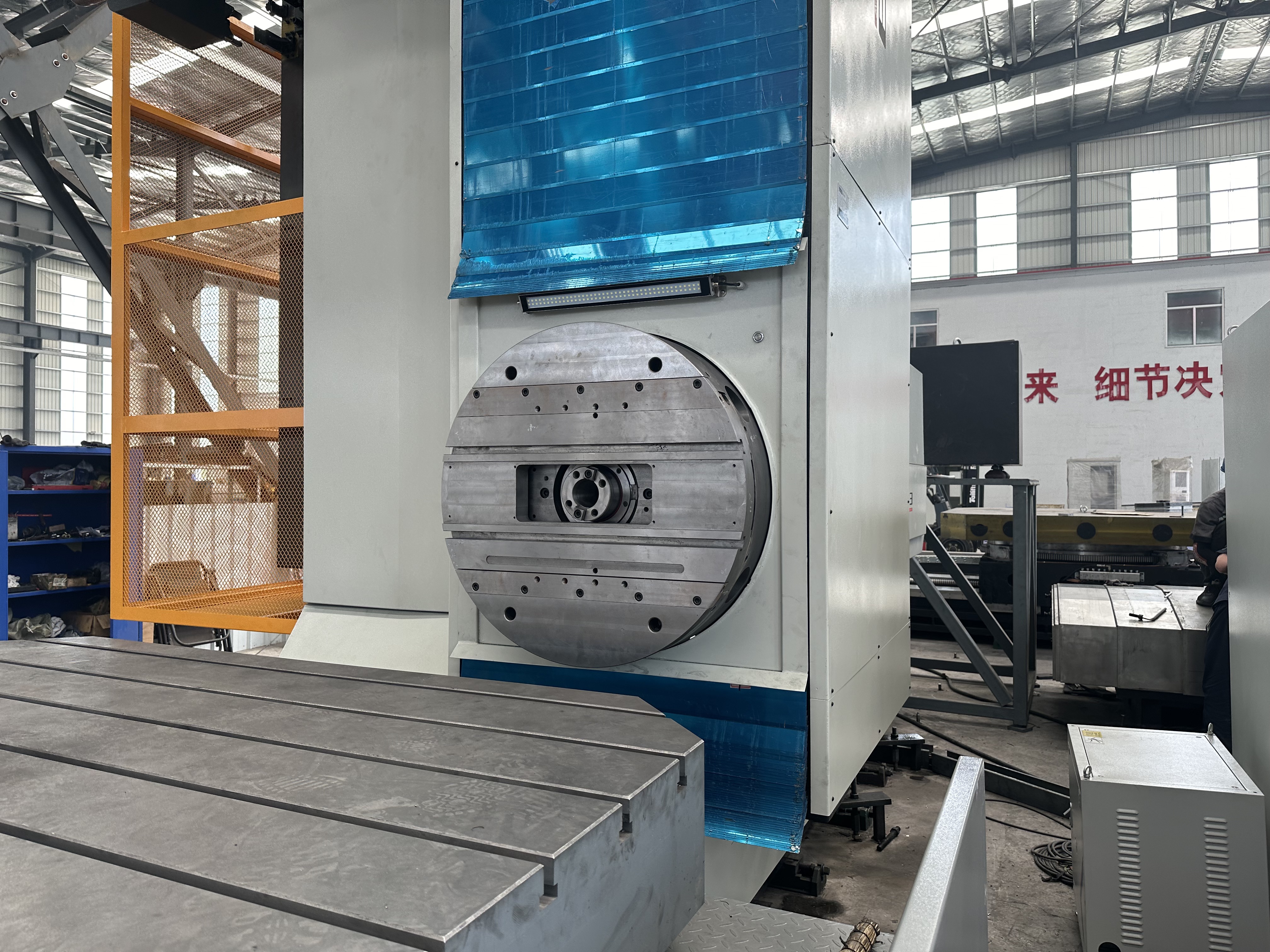

5-axis CNC machine tool, any 4-axis linkage. The X axis is the movement of the workbench, the Y axis is the movement of the main axle box, the Z axis is the longitudinal movement of the column, the W axis is the movement of the spindle, and the B axis is the rotation movement of the rotary table.
