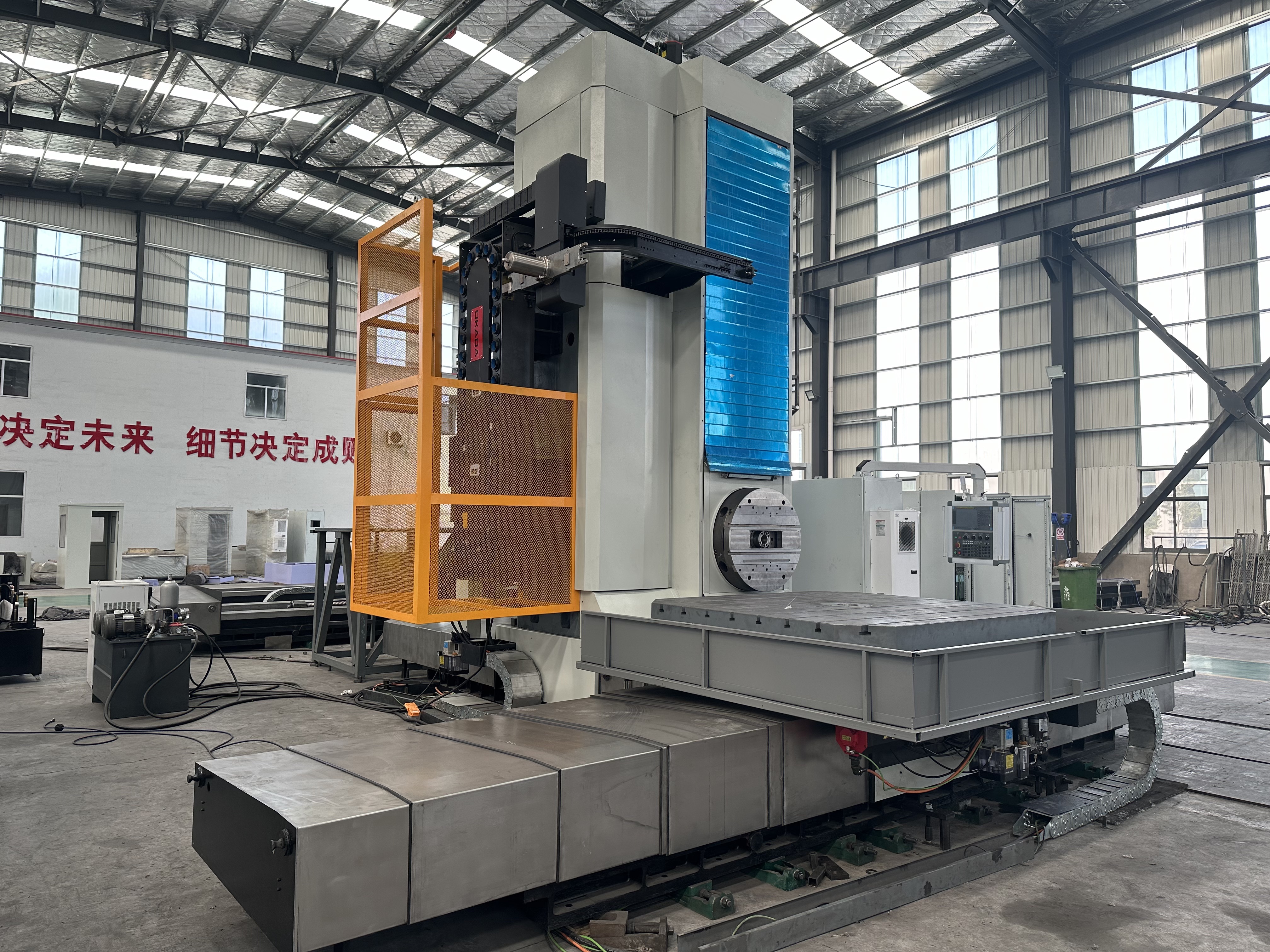

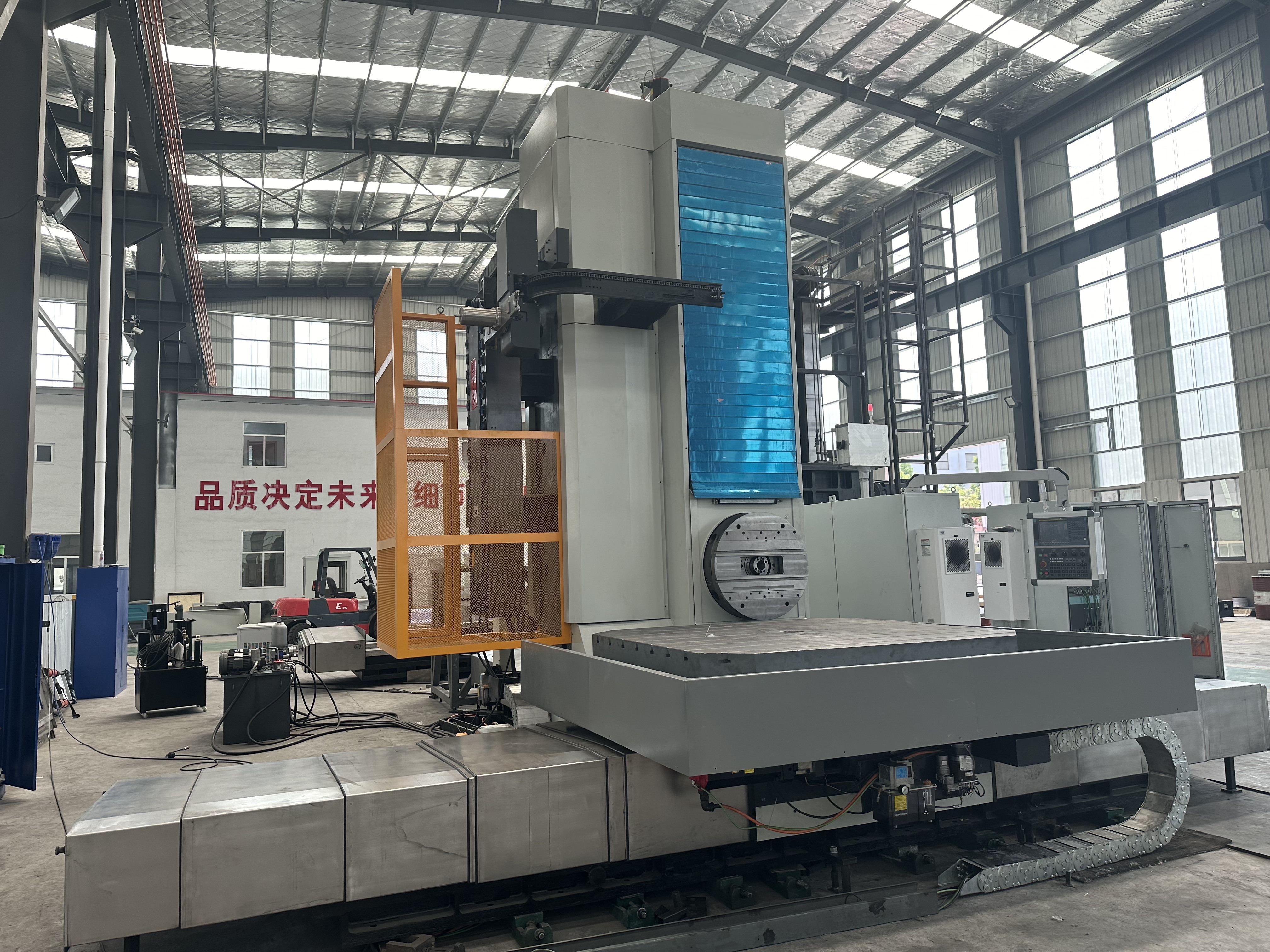

TK6511 Cnc Horizontal Boring Machine with Fanuc or Siemens

Availability:

Quantity:



Inquire Add to Basket

Model:
TK6511
Brand:
REFINE
Code:
8459310000

Product Description

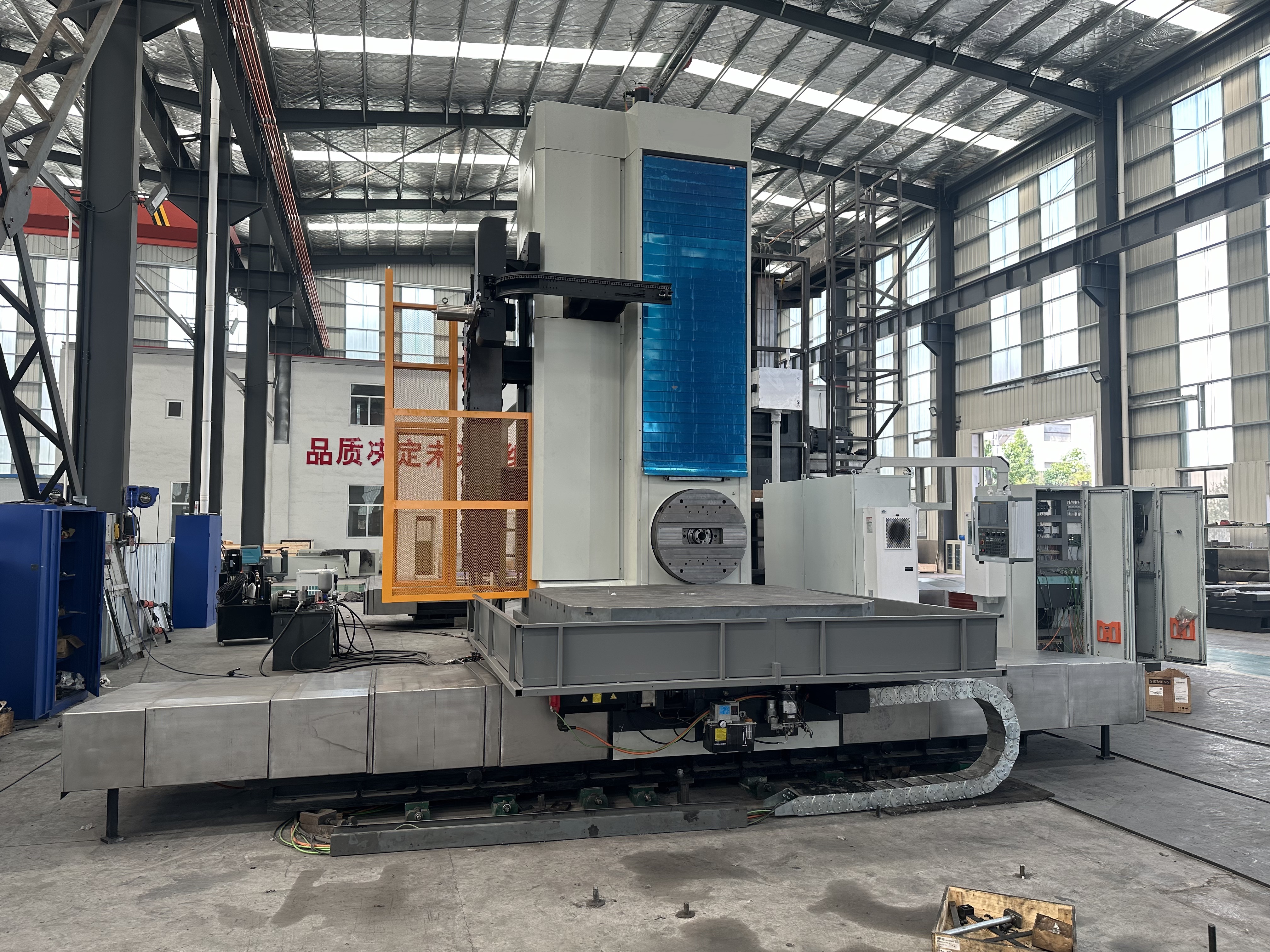

Machine Pictures

Specification

Machine Detailed Pictures

Machine Packages

MAIN INTRODUCTION

TK6511B CNC planer horizontal boring and milling machining center is a machine tool designed with advanced technology of machinery, electrical and hydraulic at home and abroad. This kind of machine tool is a medium-sized general metal cutting machine tool with wide application range and wide function. The machine equipped with a flat rotating disc can not only realize the cutting of large diameter and large plane, but also can process the inner cavity, inner cavity side, inner cavity hole and large end face of many workpieces. Rotary table can be straight feed, can also be rotary feed, used with the main machine, can be once clamping to complete multi-sided processing.

Worktable horizontal movement: X -Axis
Vertical column movement: Z -Axis
Spindle box vertical movement: Y-Axis
Boring axis for axial movement: W-Axis

Planner table horizontal side-hanging headstock structure, front and back bed separate, T-shaped layout, sliding seat drive column along the back bed longitudinal movement; The table moves horizontally along the front bed; The headstock moves vertically along the column; The main movement of the machine tool is the rotating movement of the main shaft.

SPECIFICATION OF TK6511

NO.	ITEM	NAME	UNIT	PARAMETER	REMARK
1	Travel	Worktable travel-X-Axis	mm	2000
		Spindle Box Vertical Travel- Y-Axis	mm	1500
		Column Vertical Travel- Z-Axis	mm	1500
		Boring shaft axial-W-Axis	mm	600
2	Working feed Max. speed	X、Y、Z-Axis	mm/min	Stepless adjustable, 8000mm/min
2	Working feed Max. speed	W-Axis	mm/min	Stepless adjustable，4000mm/min
3	Fast move Max. speed	X、Y、Z-Axis	mm/min	8000
3	Fast move Max. speed	W-Axis	mm/min	8000
4	Positional Accuracy	Positional Accuracy：X、Y、Z、W	mm	0.02/1000 ,W0.02
4	Positional Accuracy	Re- Positional Accuracy：X、Y、Z、W、B	mm	0.01 , W0.015
5	Spindle	Boring shaft diameter	Mm	φ110
		Milling shaft end diameter	Mm	221.44
		Boring shaft taper hole		ISO 50( BT50 7:24 )
		blind rivet type		MAS 403 P50T-1
		Main motor power	Kw	22
		Max. spindle torque	Nm	1400
		Max. axial resistance of spindle	N	12000
		Boring shaft speed	r/min	2-2000
		Spindle Box		Two-stage speed	Hydraulic
6	Worktable	Worktable Size	Mm	1400*1250
		Worktable action		only moves along the X-axis
		Worktable Load	Kg	5000
7	Cooling system	Tool external cooling：	MPa	0.5
7	Cooling system	Cooling tank capacity：	L	960

Introduction

SPINDLE

The main shaft of the machine tool is composed of the boring main shaft (boring shaft) and the milling main shaft (milling shaft). The main shaft bearing adopts the imported bearings (FAG) with high speed, good rigidity and high precision. Ensure the spindle rotation accuracy is high, the rigidity is high, the life is long, the noise is low.
B axis table rotary

B axis table rotary guide rail using small friction coefficient, good vibration absorption, low high-frequency vibration, high precision, easy maintenance of static pressure guide, can ensure the moving parts of the smooth movement, light. Internal thrust bearing unloading, smooth movement, high positioning accuracy, when the table is not in motion, using floating hydraulic clamping/loosening, clamping force is large and reliable.
CNC Controller

The machine is equipped with Siemens or Fanuc and AC digital servo drive system, the system has a powerful data package and low failure rate, the performance is very stable, can achieve multi-axis linkage, function compensation, data communication and exchange, analog display, a variety of fixed processing cycles, tool management. The closed loop feedback system configured with the axis can also be processed with higher precision.
