Ever wonder why some CNC machines cut better than others? It often comes down to one detail: the guideways.Vertical Machining Centers rely on either linear or box way guideways. Each affects how smoothly and accurately a machine operates.Choosing the right type can boost precision, reduce vibration, and improve performance over time.
In this post, you’ll learn how linear and box way guideways compare—and which is best for your machining needs.

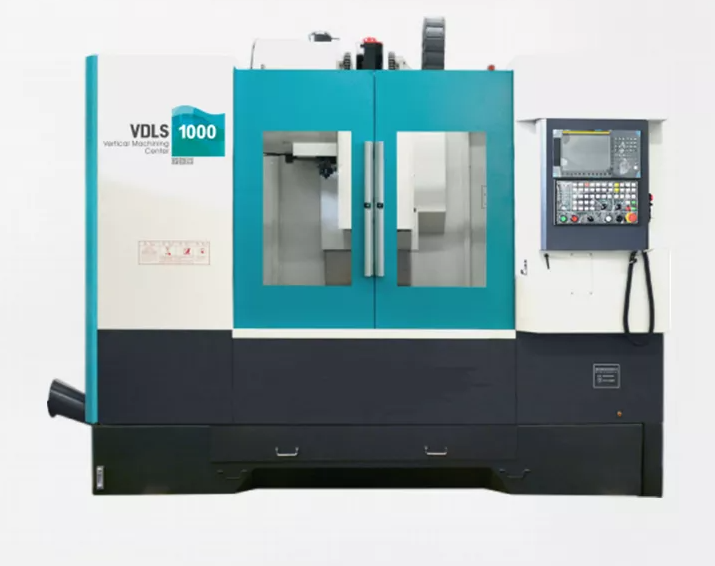

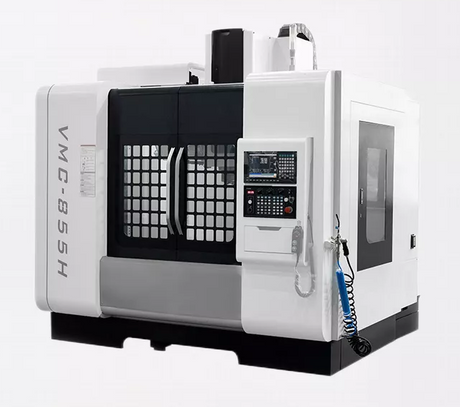

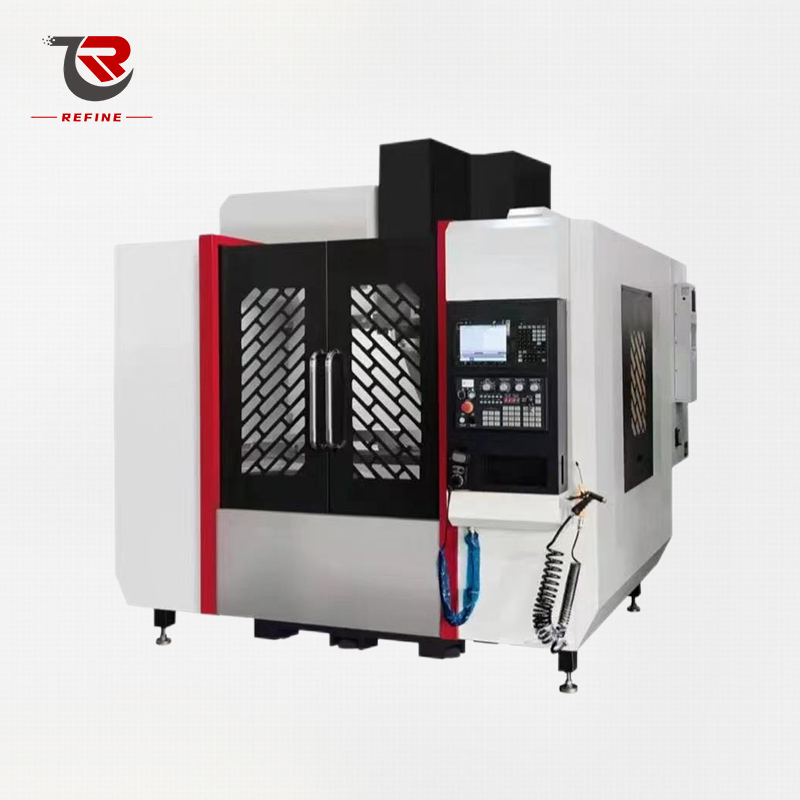

A Vertical Machining Center, or VMC, is a type of CNC milling machine. It cuts, drills, and shapes metal or plastic. The cutting tool moves while the workpiece stays still—usually fixed on a flat table.These machines are common in shops that make parts for cars, airplanes, electronics, and more. Need fast, repeatable, and precise cuts? A VMC gets it done.
It doesn’t just move in one direction. VMCs operate along three axes:
X-axis – left to right
Y-axis – front to back
Z-axis – up and down
4th Axis (Rotary Table): spins the part for angled cuts
5th Axis (Trunnion Table): rotates it around multiple angles
These upgrades make it possible to machine 5 sides of a part at once.
| Axis | Direction | Add-On Required |
| 3 | X, Y, Z (basic motion) | Built-in |
| 4 | Rotation (A-axis) | Rotary Table |
| 5 | Tilt + Rotate (C-axis) | Trunnion Table |
Let’s break down what makes a VMC tick:
Spindle: Spins the tool fast—up to 50,000 RPM
Tool Changer: Swaps tools automatically (umbrella or side-mount)
Work Table: Holds your material in place
CNC Control: Tells the machine what to do
Tool Holders: BT, CAT, or HSK types—each grips the cutter differently
All these parts work together so the machine can shape, cut, and finish materials quickly and with accuracy.
Guideways aren’t just simple support tracks. They impact nearly everything:
| Factor | Effect of Guideways |
| Movement | Smooth, precise positioning of each axis |
| Stability | Holds steady under load or rapid shifts |
| Tool Life | Less vibration means tools last longer |
| Surface Finish | Clean edges, fewer tool marks |
If a machine shakes or slips, it’s usually because of weak guideway design—or poor maintenance.
Not all guideways are created equal. In vertical machining centers, the type of guideway decides:
How fast your part gets cut
How heavy your workpiece can be
How smooth the finish will look
How often you’ll stop for maintenance
Guideways are either linear (rolling contact) or box (sliding surface). We’ll break down the difference in the next sections.
For now, just know: the right guideway can mean the difference between tight tolerances and scrap parts.
Ever seen a CNC machine move fast, like really fast? It’s probably using linear guideways.These are built for speed, accuracy, and clean, repeatable motion. That’s why many high-production shops love them.
Linear guideways use rolling elements—like tiny balls or rollers—to reduce friction. A carriage (called a truck) slides smoothly along a fixed rail.It looks simple, but it’s super precise. Here’s how it works:
| Part | Function |
| Rail | Fixed track mounted to the machine bed |
| Truck/Carriage | Moves along the rail carrying machine parts |
| Rolling Element | Usually balls or rollers to reduce friction |
Think of it like a drawer sliding open—only much smoother, faster, and more exact.
They’re built for high-speed machining. That means:
Fast travel speeds—great for short cycle times
Low friction—less heat, less wear
Good precision—ideal for fine, detailed cuts
Lighter weight—easy motion, less energy use
Linear guideways often come in pairs. Four trucks usually ride along two rails—one for each axis.That setup helps keep everything aligned, even at high speeds.
They’re common in:
Mold and die work
Electronics and aerospace parts
High-speed aluminum machining
Shops focused on tight tolerances and fast production
High-Speed Movement:
Linear guides allow for faster feed rates, enabling quicker cycle times for high-production tasks.
Excellent Precision and Accuracy:
The linear motion provides minimal friction and wear, leading to high precision and consistent machining performance over time.
Reduced Heat Generation:
The linear guide system reduces the heat produced during movement, which can help maintain machining accuracy.
Low Maintenance Requirements:
Due to reduced friction between parts, these machines typically require less maintenance and have a longer lifespan.
Better Surface Finish:
The smooth and frictionless linear motion results in better surface quality of machined parts, especially in fine milling and drilling applications.
Ideal for applications that require high-speed machining with tight tolerances, such as aerospace or medical part manufacturing.
When you’re cutting tough materials or doing heavy jobs, you want strength and stability. That’s where box way machines shine.These are built to handle force—big force—and keep cutting smoothly.
Box guideways, also called box ways, are thick sliding surfaces. They don’t roll like linear guides—they slide, and that makes them super solid.
Imagine two big metal blocks sliding over each other, separated by a thin film of oil. That’s the basic idea.
| Component | Description |
| Box Way Surface | Flat, heavy-duty guide path |
| Slide/Carriage | Rides along the way with high contact area |
| Lubrication Film | Pressurized oil or a polymer layer like Turcite |
The large surface contact means more rigidity and better shock absorption.
Superior Stability:
The box structure provides excellent stability, reducing vibration and ensuring high-quality cuts, particularly under heavy cutting conditions.
Enhanced Rigidity:
The design allows for better support of large tools and heavy workpieces, which is critical for precision machining of tough materials.
Better Performance in Heavy Cuts:
Box-type machining centers excel in applications requiring heavy material removal, as they can handle greater forces and loads.
High Durability:
Due to their robust construction, these machines are more durable in the long run, especially when used for complex or demanding tasks.
Improved Cutting Accuracy:
The rigidity and stability of the box frame contribute to minimal tool deflection, leading to better cutting accuracy and part quality.
Perfect for industries requiring heavy-duty machining, such as automotive, mold making, and heavy machinery.
Trying to decide between a linear or box way Vertical Machining Center (VMC)?Let’s see how they stack up side by side.Each system has strengths. Some shops want speed. Others need cutting power.Your choice depends on the job, the material, and your shop’s goals.
| Feature | Linear Guideways | Box Guideways |
| Speed | Faster travel and rapid movement | Slower motion but more controlled |
| Precision | Great for light, accurate cuts | Stays precise under heavy load |
| Rigidity | Lower, unless reinforced with rollers | Very high—handles big cuts with ease |
| Vibration Damping | Less effective in tough conditions | Excellent for smooth finishes |
| Maintenance | Low—needs less oil and care | High—requires regular lubrication |
| Durability | Long life under light/moderate loads | Long life, even with heavy use |
| Surface Finish | Good in soft material, less chatter | Best in hard materials, very stable |
| Tool Life | May wear faster in heavy cuts | Less tool wear due to steady motion |
| Cost | Generally more affordable | Often more expensive to build and run |
A: Yes, it has lower friction, fewer moving parts, and needs less lubrication than box ways.
A: Not always, but it offers better damping and stability, which helps reduce chatter on heavy cuts.
A: Yes, both can support 4th and 5th axis add-ons like rotary or trunnion tables.
A: Linear guideways are better for aluminum due to their high speed and precision.
A: HSK holders offer more contact, reduce vibration, and are ideal for high-speed, precise machining.
Linear guideways are ideal for fast, light jobs. Box way guideways excel at handling heavy cuts.Select your machine based on your workload. Consider speed, cutting force, and part size when making your choice.
