In gear manufacturing, two prominent techniques stand out: gear hobbing and gear shaping. Both processes are used to cut precise gear teeth into blanks, but each method has its distinct advantages and applications. Depending on the requirements of the project—such as the type of gear, the volume of production, and the desired surface finish—choosing the right method is crucial.
In this article, we will explore the differences between gear hobbing and gear shaping, examining their unique features, advantages, and disadvantages. By the end, you will have a clear understanding of which technique is better suited for your needs.
Gear hobbing is a widely used technique in gear production where a rotating cutting tool, called a hob, is used to cut teeth into a rotating gear blank. The hob makes continuous cuts as the gear blank rotates, progressively forming the desired tooth profile. Gear hobbing machines are designed to handle a wide variety of gear types and can be configured to cut different tooth profiles, including spur gears, helical gears, and splines.

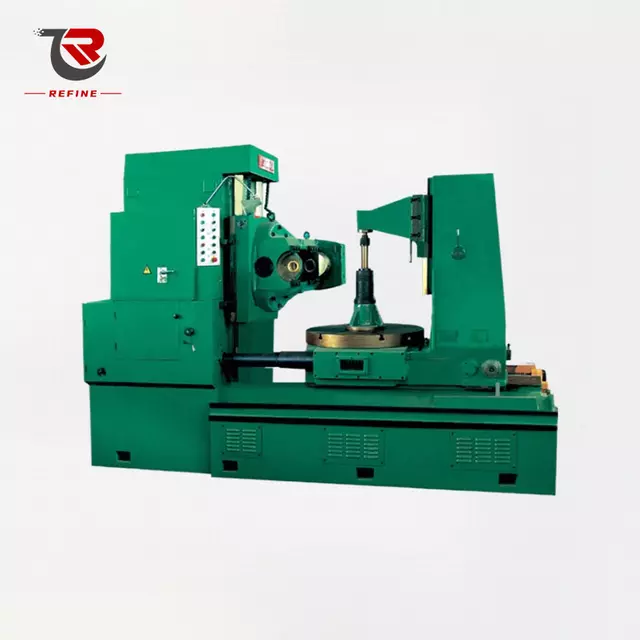

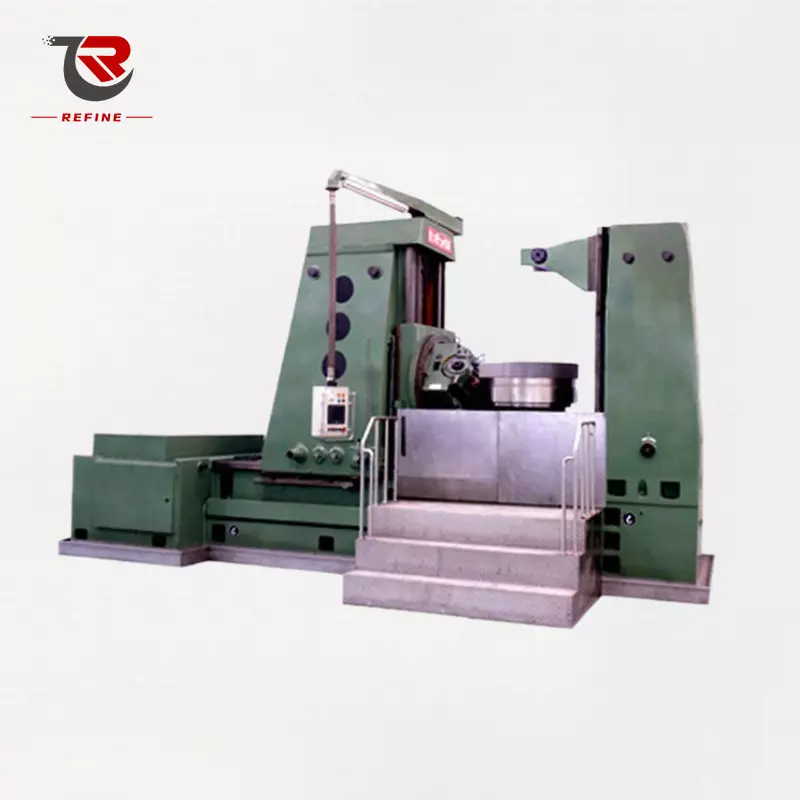

A gear hobbing machine typically uses an automated hob to progressively cut the teeth into the rotating gear blank. The process involves synchronized motion between the hob and gear blank, with the hob making cuts as the blank rotates. This continuous cutting action allows the teeth to be formed with consistent depth and spacing.
● Spur gears: Commonly used in power transmission systems such as automotive engines.
● Helical gears: Used in systems where smooth and quiet operation is required, such as in gearboxes.
● Sprockets and splines: Critical for various power transmission applications in industrial and automotive machinery.
1. Cost-effective for large-volume production: Gear hobbing is ideal for industries that need to produce large quantities of gears efficiently. The machine’s continuous cutting action speeds up production.
2. Versatility: It can produce various types of gears, including spur, helical, and splined gears. Its flexibility also allows it to handle different sizes and configurations.
3. High movement accuracy: The gear hobbing machine excels in achieving precise movement accuracy, especially for gears with standard geometries.
● Surface finish: The surface finish produced by gear hobbing is not as smooth as gear shaping. Additional processes, such as grinding or honing, may be necessary to achieve a high-quality finish.
● Complex geometries: While it is effective for standard gears, gear hobbing struggles with creating highly complex or intricate tooth profiles.
On the other hand, gear shaping involves a specialized cutting tool known as a shaper cutter, which moves up and down while simultaneously rotating to cut teeth into a gear blank. Unlike gear hobbing, where the cutting tool and blank rotate together, gear shaping uses a reciprocating motion that allows for greater precision in certain gear types.
A gear shaping machine uses a pinion-shaped cutter that moves back and forth (reciprocates) while rotating. As the cutter rotates, it removes material from the gear blank, creating the teeth one at a time. The axis of the cutter and the gear blank are kept parallel, and cutting occurs either on the upstroke or downstroke of the machine.
● Internal gears: Used in applications where gears need to be located inside other components.
● External gears: Often employed for gears with teeth on the outer surface.
● Integral gear-pinion arrangements: Perfect for compact systems where both the gear and pinion are integrated into a single component.
1. Superior surface finish: Gear shaping produces gears with an exceptional surface finish, making it ideal for applications where smoothness and precision are critical.
2. Precision: Gear shaping offers high levels of accuracy, particularly when tight tolerances are required. This makes it an excellent choice for industries such as aerospace and medical equipment, where gear quality is paramount.
3. Flexibility for complex geometries: Gear shaping is capable of producing more intricate tooth profiles compared to gear hobbing. This makes it suitable for gears with multiple tooth sizes or non-standard shapes.
● Slower production speed: Compared to gear hobbing, gear shaping is slower. The process takes more time, making it less efficient for high-volume production runs.
● Higher cost for smaller runs: Due to its slower cutting speed and the need for specialized equipment, gear shaping can be more costly for smaller production volumes.
To understand which method is better for your specific needs, let’s compare gear hobbing and gear shaping based on factors like accuracy, efficiency, and cost.
Factor | Gear Hobbing | Gear Shaping |
Accuracy | High movement accuracy but lower surface finish. | High precision and excellent surface finish. |
Efficiency | More efficient for large-scale production. | Slower, but more precise for small runs and complex designs. |
Cost | Lower cost for large volumes. | Higher cost due to slower production rates. |
Production Speed | Faster cutting speed, ideal for high-volume production. | Slower cutting speed. |
Flexibility | Excellent for spur and helical gears, but less flexible for complex geometries. | Great for complex and intricate gear shapes. |
Gear hobbing is the ideal choice when large volumes of gears need to be produced quickly and cost-effectively. Here are some scenarios when gear hobbing is the best option:
● Large-volume production: If your project requires the mass production of standard gears, gear hobbing is the most efficient and cost-effective method.
● Simplicity in gear design: Gear hobbing excels when you need to produce simple gears like spur and helical gears, without the need for complex geometries.
● Fast production cycles: Gear hobbing is ideal for applications where speed is a priority, such as automotive or industrial machinery.
On the other hand, gear shaping is the better option when high precision and surface quality are critical. Here are scenarios where gear shaping should be your go-to choice:
● High-precision gears: For applications where exact tolerances and smooth finishes are required, gear shaping is ideal. This is particularly relevant in aerospace, medical equipment, and other high-performance industries.
● Complex geometries: If your gear design involves intricate or non-standard tooth profiles, gear shaping can handle those designs better than gear hobbing.
● Proximity to obstructions: Gear shaping is often used in cases where gears are located near other components, such as flanges, which may interfere with the cutting process in gear hobbing.
Both gear hobbing and gear shaping are widely used across various industries. Let’s explore how each method fits into key sectors:
● Gear Hobbing: Commonly used for producing gears for transmissions and engines, gear hobbing is perfect for the mass production of standard gear types in automotive applications.
● Gear Shaping: Employed when high precision is required for gears used in specialized automotive systems, such as steering mechanisms or high-performance engine parts.
● Gear Hobbing: Typically used for producing large volumes of gears, such as those found in landing gear systems or engine components.
● Gear Shaping: Used for the production of highly precise gears required in critical aerospace systems, where performance and reliability are crucial.
● Gear Hobbing: Perfect for producing gears used in robotic systems that require durability and reliability at a lower cost.
● Gear Shaping: Essential for high-precision gears in robotics and automation, where exact tolerances and smooth finishes are needed for fine motor control.
Q: What is the difference between gear hobbing and gear shaping?
A: Gear hobbing uses a rotating hob to cut teeth into gears, ideal for high-volume production. Gear shaping uses a reciprocating cutter, best for precision and complex gear profiles.
Q: When should I use a gear hobbing machine?
A: Use a gear hobbing machine for mass-producing spur, helical, or spline gears quickly and cost-effectively.
Q: What industries use gear hobbing and gear shaping machines?
A: These machines are used in industries like automotive, aerospace, robotics, and manufacturing for making precise gears.
Q: Can gear hobbing machines be used for all types of gears?
A: Gear hobbing is mainly for spur and helical gears. It's less suited for complex or intricate gears.
Q: Are gear shaping machines suitable for mass production?
A: Gear shaping is slower and not ideal for mass production but is great for high-precision and complex gears.
Q: How do I choose between a gear hobbing and a gear shaping machine?
A: Choose gear hobbing for cost-effective, high-volume production, and gear shaping for precision and complex gears.
Q: Where can I order a gear hobbing machine?
A: You can order a gear hobbing machine from Dalian Refine Tech Co., Ltd.. They offer various machines, including gear hobbing machines and other CNC products.
Both gear hobbing and gear shaping have their own strengths and weaknesses. Gear hobbing is an excellent choice for high-volume, cost-effective production of standard gears, while gear shaping is ideal for high-precision applications that require exceptional surface finishes and intricate geometries.
When choosing between these two methods, it is important to assess your specific needs—whether you prioritize production speed, surface finish, or gear complexity. In many cases, a combination of both methods may be required to meet the diverse needs of a project.
By understanding the nuances of gear hobbing and gear shaping, you can ensure that the right technique is used for your manufacturing process, ensuring both performance and cost-efficiency.
