Cylindrical Grinder Products for Sale MKA1320

Availability:

Quantity:



Inquire Add to Basket

Model:
MKA1320
Brand:
REFINE

Product Description

Parameters of Machine

Machine Character

Customer Visiting

MKA1320A CNC Cylindrical Grinder is suitable for batch grinding of cylindrical surfaces of shaft parts. HNC CNC system is used for the respective control of wheelhead feed and worktable movement. It can complete the automatic cycle of multi-gear cylindrical grinding in one-time clamping. The machine has various functions including wheelhead automatic feed, coarse and fine grinding, worktable automatic jump displacement, automatic switching of workpiece rotation speed, wheel automatic dressing and feeding, safety interlock of cycle movement.

SPECIFICATION	MKA1320
Grinding O.D. Diameter	Φ8～Φ320
Max. workpiece length	500 /750mm
Max. workpiece weight	50 kg
Workpiece rotational speed	16-160rpm
Center height	135mm
Max. movement of worktable	0.1～4000
Centers of workhead	Morse #4
Centers of tailstock	Morse #4

FEATURE

Learn More

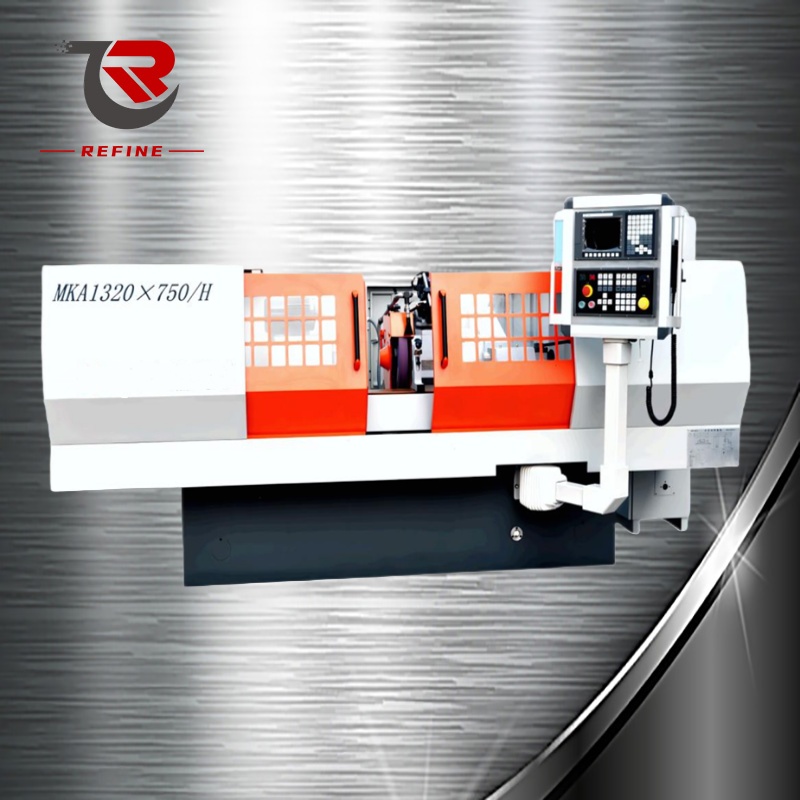

1.Machine Bed 2. Wheelhead, Spindle System and Feeding Mechanism 3. Headstock 4.Tailstock 5.Dress

1.Machine Bed

The bed is a monolithic structure, adopting low alloy high-strength inoculated cast iron, with high overall rigidity and surface wear resistance and shock resistance. It can meet high-efficiency high-precision equipment’s demands for basic parts.
Learn More
2. Wheelhead, Spindle System and Feeding Mechanism

Wheelhead spindle system utilizes four-shell dynamic pressure bearings.
Wheelhead feeding system is sub realized by AC servo motor driving ball type lead screw.
The ball type lead screw adopts domestic high-quality products with good rigidity and high motion precision.
Wheelhead guideway adopts flat-V sliding guide way. Guide way surface has been scraped manually so it has good positioning accuracy, abrasion resistance, rigidity and smoothness in low-speed movement.
Learn More
3. Headstock

AC variable frequency motor drives the rotation of workpiece plate to realize infinite speed control.
Learn More
4.Tailstock

Tailstock center tightens against the workpiece by the spring inside the sleeve. Tightening pressure can be adjusted by the compression of spring. The withdrawal of tailstock center can be controlled by hydraulic or manual operation.
Learn More
5.Dress

The machine adopts front-loaded dressing. The diamond pen is mounted on headstock housing. Dressing of wheel periphery, end-face and radius is realized by the two-axis linkage of X-axis and Z-axis.
