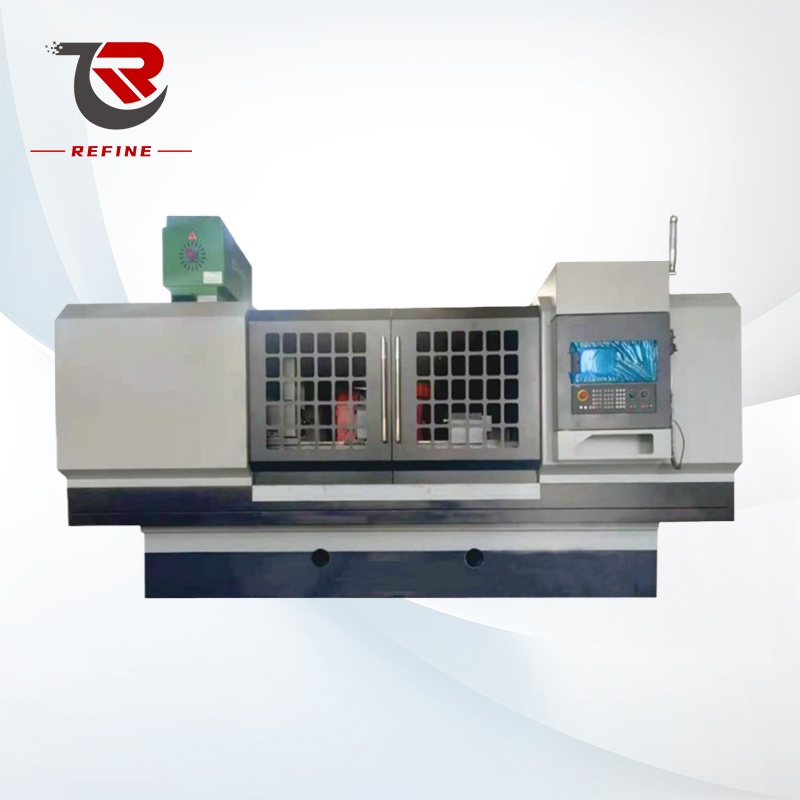

CNC Universal Cylindrical Grinding Machine MK1432B

Name: CNC Universal Cylindrical Grinding Machine MK1432B
Brand: REFINE
Rating: 5.0 (13 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
MK1432B
Brand:
REFINE

Product Description

Parameters of Machine

Machine Character

Customer Visiting

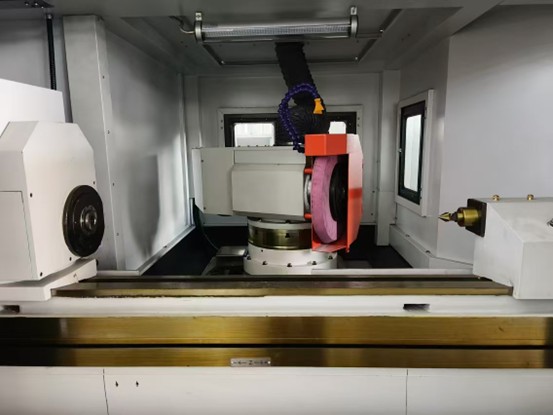

The MK1432B×1500 CNC Universal External Cylindrical Composite Grinder is a CNC cylindrical grinder independently researched and developed by our company. This grinder adopts the Siemens 828D open CNC system, facilitating customer customization and secondary development.

Item	Specification
External Grinding Diameter Range	Φ8 - Φ320 mm
Internal Grinding Diameter Range	Φ30 - Φ200 mm
Max. External Grinding Length	1500 mm
Max. Internal Grinding Depth	200 mm
Max. Workpiece Weight btw Centers	150 kg
Center Height	180 mm
Max. Workpiece Swing Diameter	Φ350 mm
Grinding Capabilities	Longitudinal, Taper, Face

FEATURE

Learn More

1.Bed 2. X-axis guideway 3. Wheelhead 4.Headstock

1.Bed

1. The machine bed is integrally cast from high-quality HT300 ductile iron, featuring a smooth casting surface, excellent rigidity, and rational structure.
Learn More
2. X-axis guideway

2. The X-axis guideways utilize double V-roller steel guideways, ensuring smooth movement, precise micro-feeding, and improved grinding performance.
Learn More
3. Wheelhead

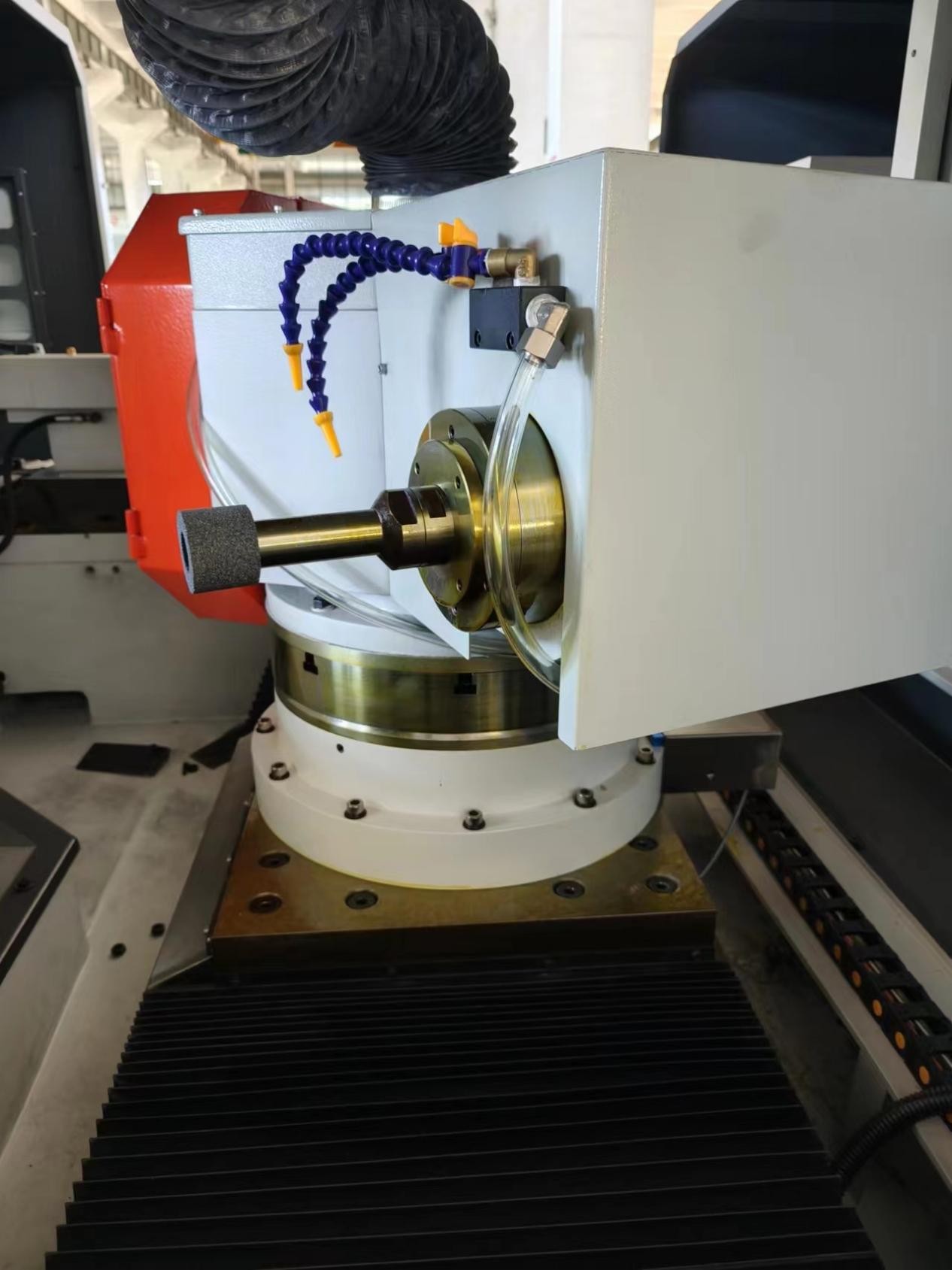

3. Wheelhead infeed (X) and table travel (Z) are driven by AC servo motors. The CNC system effectively compensates for screw backlash and wear gaps. High-precision ball screws and bearings ensure feed accuracy.
Learn More
4.Headstock

4.The headstock is a non-swiveling type, offering strong rigidity and stable accuracy to better meet part machining precision requirements.
Learn More
