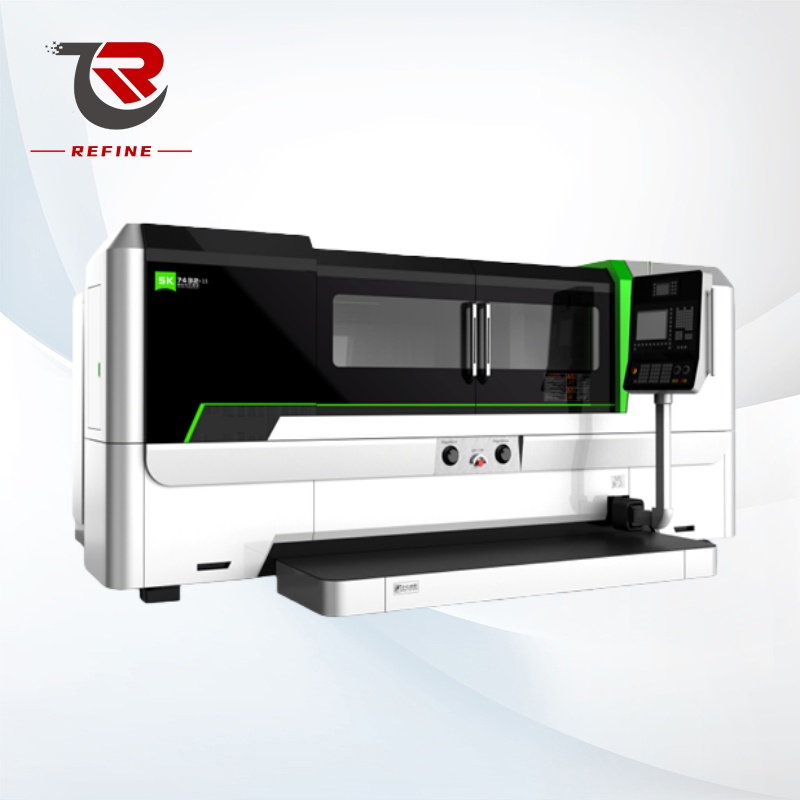

The NC system controls 5 axes, of 3 are linked:
●work-piece rotating;
●table reciprocating (to-and-fro);
●wheel stock cross feeding (back-and-forth);
●wheel dresser vertical moving;
●wheel dresser horizontal moving.
Grinding wheel dressing is done by a diamond roller moving in two directions and dressing amount is automatically compensated.A formed diamond roller also can be applied on the machine.
A linear scale and rotary encoder is equipped with table and work spindle respectively to achieve accurate movement control.
Grinding wheel spindle adopts hydro-static bearing structure to ensure high rotation accuracy.
