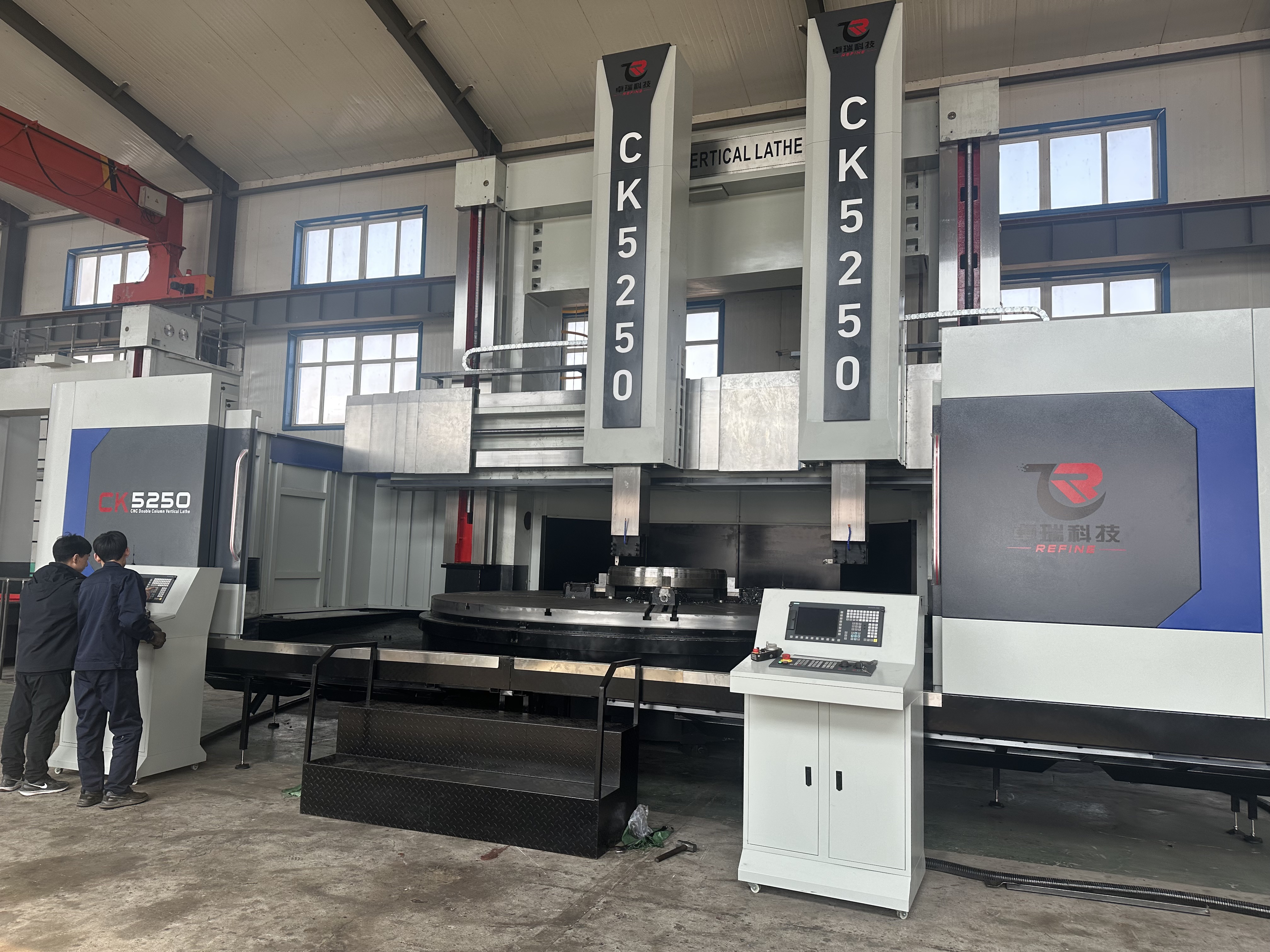

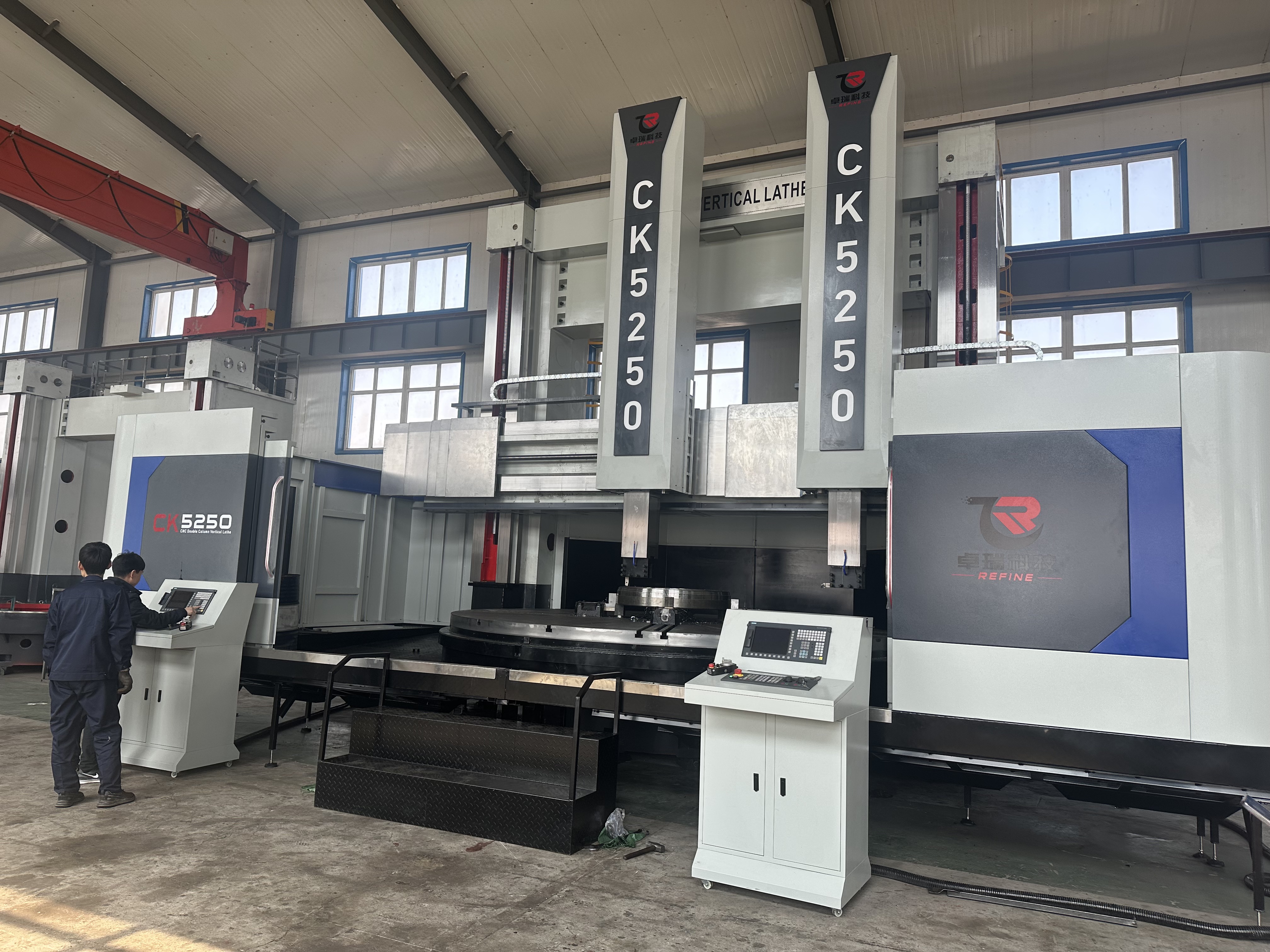

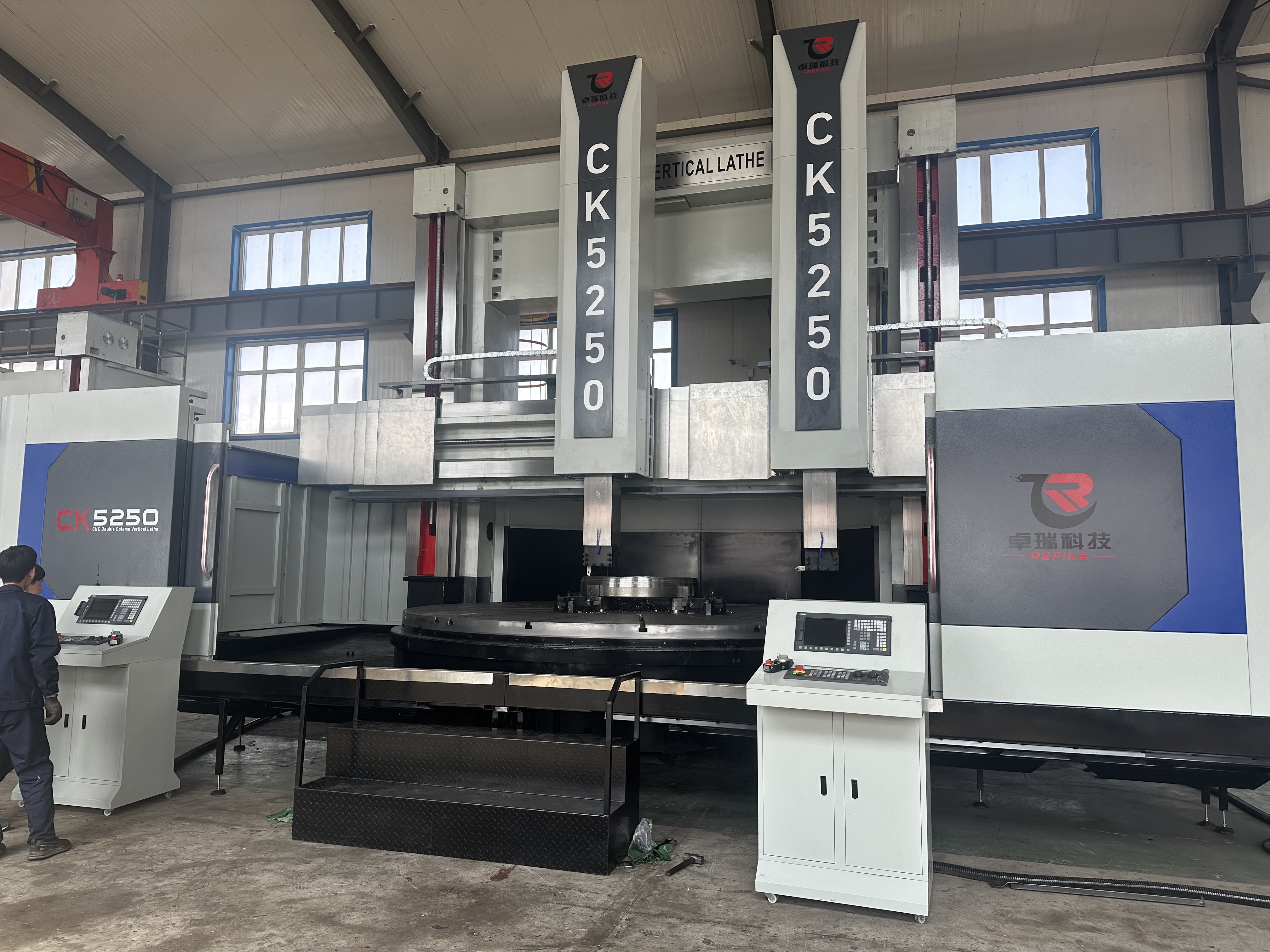

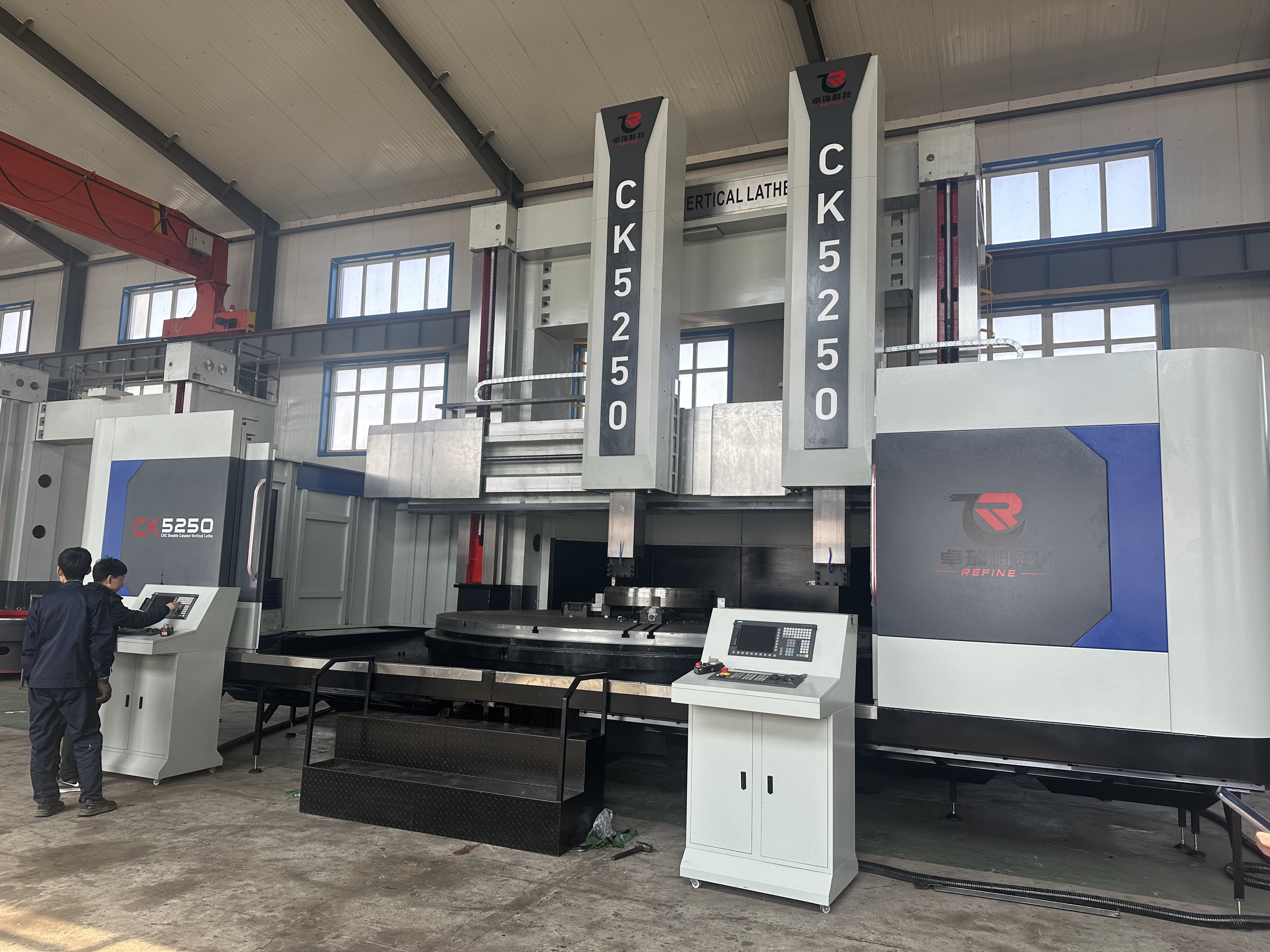

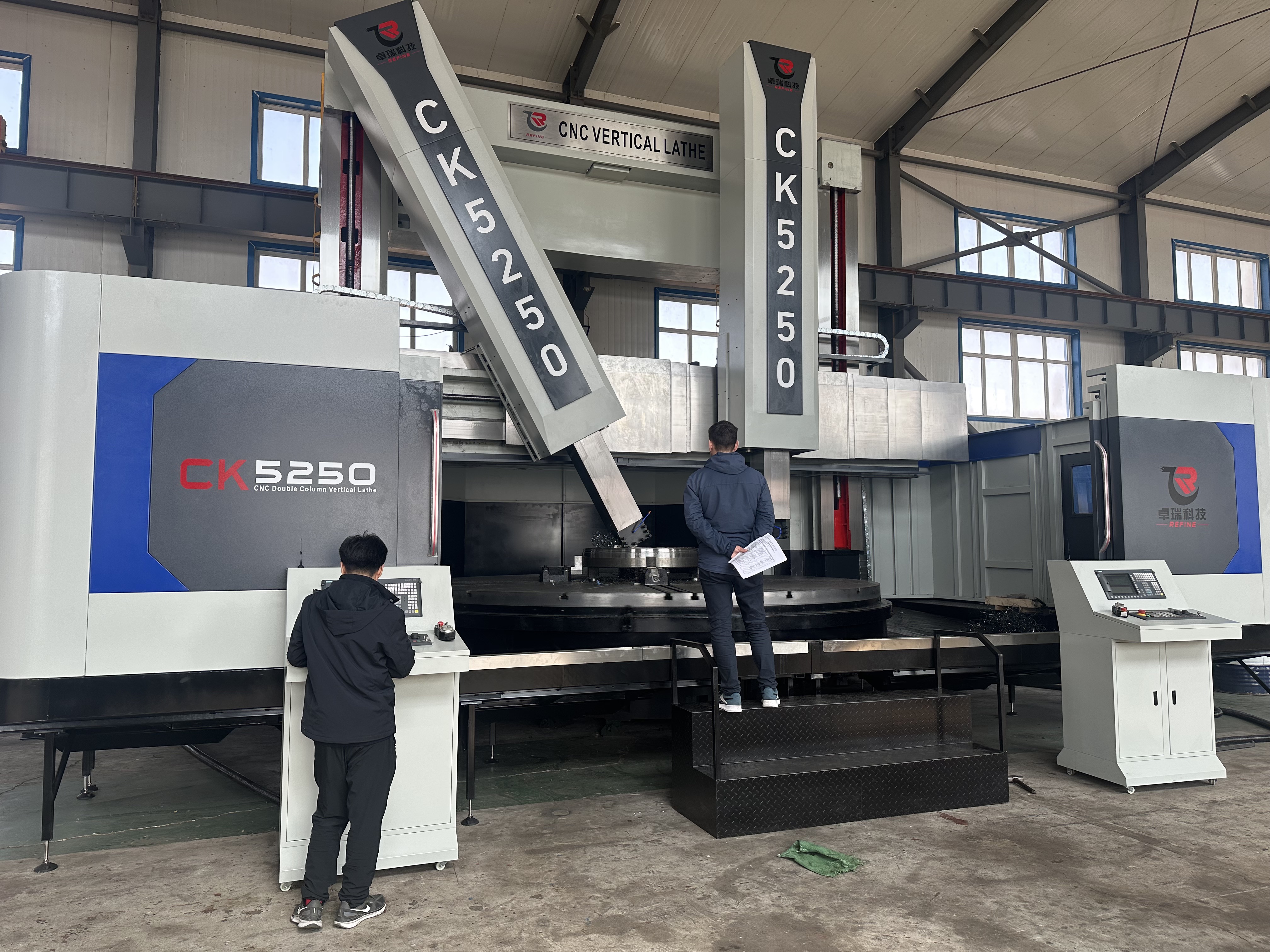

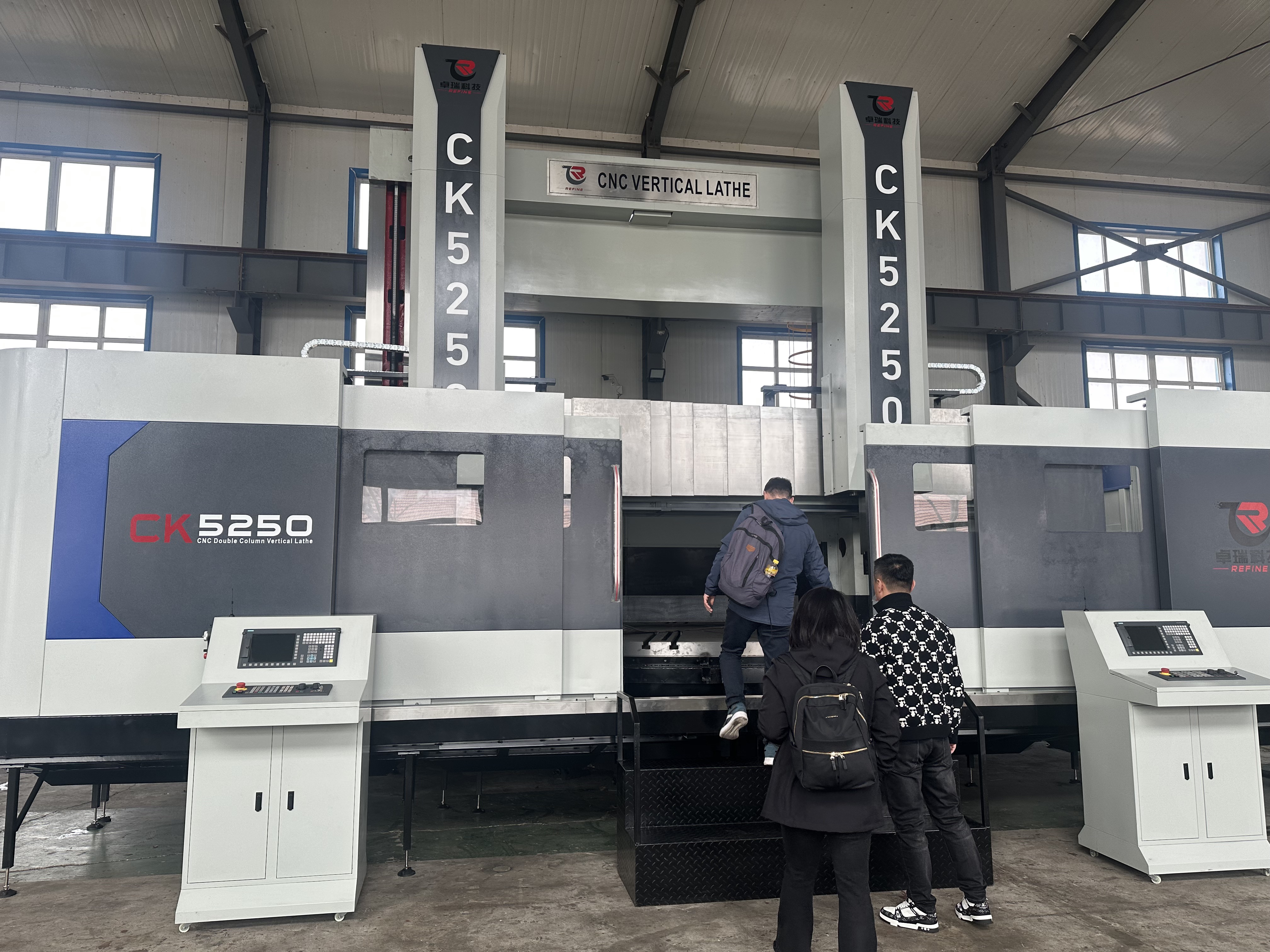

CK5250 Heavy Duty CNC Vertical Lathe

Product Description

Product Parameters

Main Structure

Features

The machine tool is suitable for high-speed steel cutting tools, carbide cutting tools and various high-performance cutting tools, processing ferrous metal, non-ferrous metal and some non-metallic materials workpiece, on the machine tool can complete rough, fine inside, outside cylinder, inside, outside conical surface, plane, rotary surface and grooving and other processes.
SYSTEM CONFIGURATION:
1) LEFT SQUARE RAM TOOL REST— DVT SYSTEM, RIGHT SQUARE RAM TOOL REST IS CONTROLLED BY SIEMENS 828D NUMERICAL CONTROL SYSTEM;
2) SQUARE RAM STRUCTURE (RAM SECTION 300×300MM);
3) SECOND GEAR STEPLESS TRANSMISSION;
4) THE MAIN MOTOR 90KW SERVO MOTOR;
5) BEAM PROTECTION;
6) HYDRAULIC STATION, MULTI-PUMP.

Product Parameters

NO.	TECHNICAL SPECIFICATIONS—CK5250
1.	Max. Machining diameter	5000mm
2.	Worktable Diameter	4500mm
3.	Max height of workpiece	3150 mm
4.	Max weight of workpiece	65T
5.	Max torque of worktable	100KN.m
6.	Worktable speed range	1-42min
7.	Vertical tool rest horizontal travel	-50～2700
8.	Vertical tool rest RAM travel	1600mm
9.	Right tool rest cutting force	50KN
10.	Left tool rest cutting force	45 KN
11.	Tool rest feed range	0.1-500 mm /min
12.	Feeding Series	Stepless
13.	Tool rest fast-moving speed	2000 mm /min
14.	Feed servo motor torque	48m
15.	Beam moving speed	350mm/min
16.	Motor power	90kW
17.	Beam lifting motor power	15kW
18.	Machine weight	85t
19.	Machine Size	900077005750mm
20.	Ram size	300*300 mm
SIEMENS 828D

Main Structure

Worktable

The workbench part is composed of the workbench, the workbench base, the main shaft and its transmission mechanism. The table and the base of the table are cast and machined.

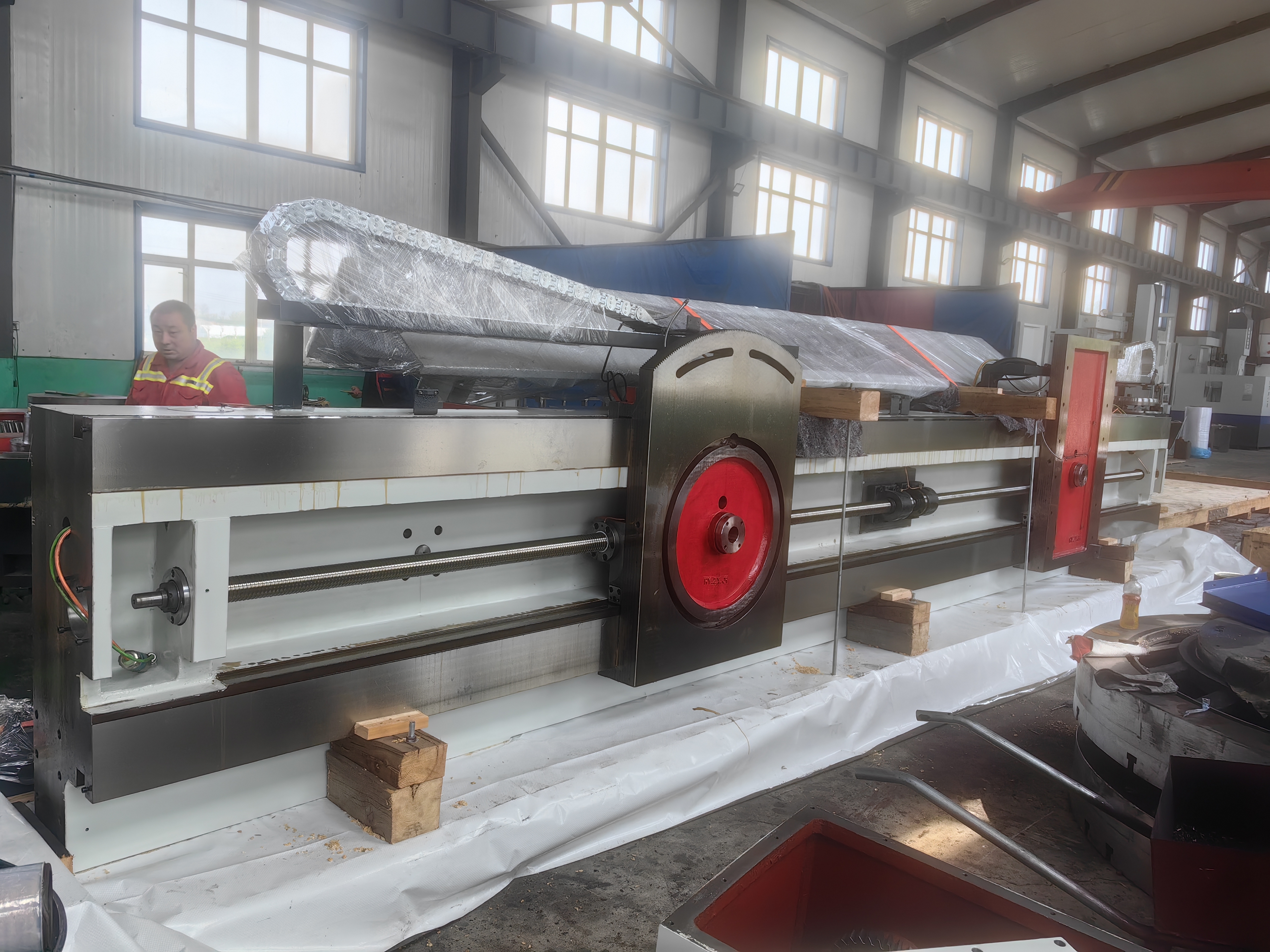

Beam

The beam is raised and lowered on the guide rail of the column, and the beam is raised and lowered by the double lead screw and driven by the double-shaft extension AC motor.
The beam is composed of a horizontal feed transmission mechanism of the tool rest, a clamping mechanism of the beam and a hydraulic device.
Tool Rest

LEFT PROGRAMMED CONTROL-DVT; RIGHT CNC.
The vertical tool rest is divided into left and right tool rest, which are respectively composed of crossbeam slide seat, rotary slide seat, ram, planetary reducer, balance cylinder and ball screw. The tool holder can move horizontally on the beam, and the ram moves vertically along the rotating slide.
