6 Axis High Speed CNC Gear Cutter for sale G500

Availability:

Quantity:



Inquire Add to Basket

Model:
G500
Brand:
REFNE

Product Description

Features

Parameters

Configuration

Customer Visiting and Inspection

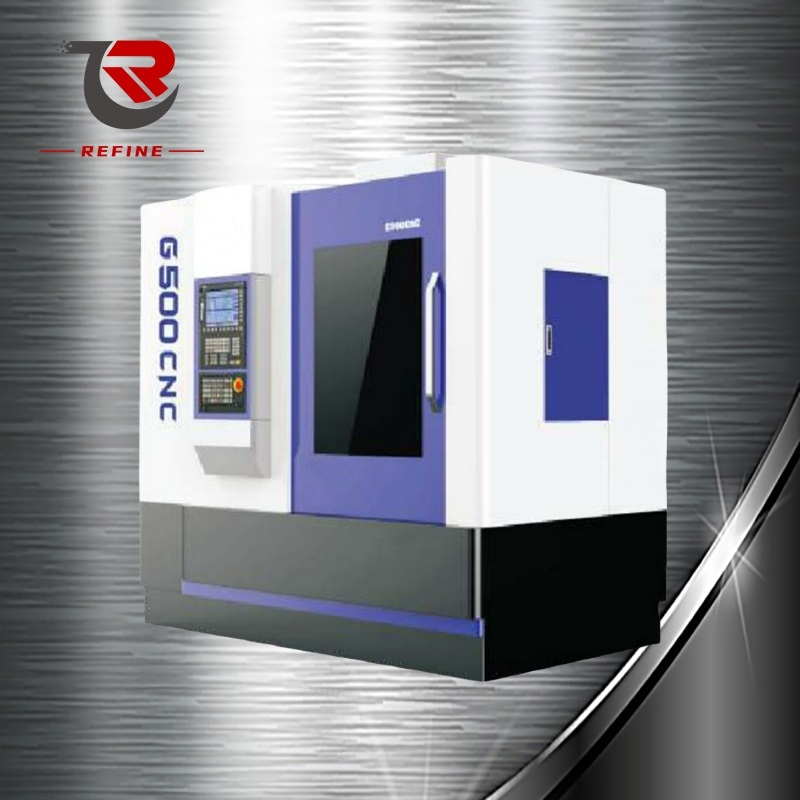

The main performance and application of the machine G500CNC is a 6-axis CNC and 4-axis linkage CNC gear hobbing machine. The 6 CNC axes are: A - hob bracket angle rotation, B - hob spindle rotation, C - worktable rotation, X - radial feed motion, Y - tangential feed movement, Z - axial feed movement; X, Z, B, C 4-axis linkage. Each CNC motion axis of the machine tool is driven by an independent AC motor, and the "electronic gearbox (EGB)" is used to realize the indexing motion, and the differential compensation is completed to process various tooth parts by the generating method.

A axis

A-axis: Adopt AC servo motor auto control, the rotation angle of the tool holder is directly and automatically set by the CNC system, and is equipped with a feedback loop, so that the tool holder can be accurately positioned at the required angle. The clamping and unclamping of the tool holder are automatically completed.After inputting the processing helix angle parameters on the system screen, the entire adjustment process does not require manual operation.

B axis

Adopt high-power servo motor to drive the spindle through a high precision gear pair transmission device. The gear pair increases the output cutting force of the spindle, equipped with a cooling and lubrication integrated device, and is equipped with the automatic monitoring and alarm device of the spindle load

C axis

It adopts high-precision direct drive motor with full closed-loop direct drive to achieve gapless transmission of the worktable, achieving high precision and high reliability.

X axis

It adopts AC servo motor through preloaded precision ball screw pair and high rigidity box way for transmission, and the screw rod support shaft adopts high precision and high rigidity combined bearings.

Y axis

The AC servo motor is used to drive through the precision ball screw pair with preload to realize the axial shifting of the hob, to ensure the uniform wear of the tool and to improve the life of the tool, and to reduce the overall cost of use.

A axis

A-axis: Adopt AC servo motor auto control, the rotation angle of the tool holder is directly and automatically set by the CNC system, and is equipped with a feedback loop, so that the tool holder can be accurately positioned at the required angle. The clamping and unclamping of the tool holder are automatically completed.After inputting the processing helix angle parameters on the system screen, the entire adjustment process does not require manual operation.
B axis

Adopt high-power servo motor to drive the spindle through a high precision gear pair transmission device. The gear pair increases the output cutting force of the spindle, equipped with a cooling and lubrication integrated device, and is equipped with the automatic monitoring and alarm device of the spindle load
C axis

It adopts high-precision direct drive motor with full closed-loop direct drive to achieve gapless transmission of the worktable, achieving high precision and high reliability.
X axis

It adopts AC servo motor through preloaded precision ball screw pair and high rigidity box way for transmission, and the screw rod support shaft adopts high precision and high rigidity combined bearings.
Y axis

The AC servo motor is used to drive through the precision ball screw pair with preload to realize the axial shifting of the hob, to ensure the uniform wear of the tool and to improve the life of the tool, and to reduce the overall cost of use.

Specification	Unit	Parameter
Max.workpiece diameter	mm	500
Max.module	mm	12
Max. radial stroke (X-Axis )	mm	360
Max. tool tangential stroke (Y-Axis )	mm	200
Max. axial stroke (Z-Axis)	mm	380
Max. hob diameter x length	mm	200x240
Worktable top diameter	mm	430
Max.hob head swivel	°	±45°
Hob center to worktable center distance	mm	40-400
Distance between tailstock and worktable top	mm	400-820

Seq	Item	Brand
1	CNC system	Siemens 828D
2	Servo drive	Siemens
3	Electric reactor	Siemens
4	Color monitor	Siemens
5	Workpiece hydraulic clamping cylinder assembly	GLTM
6	Spindle bearing	German FAG/Japan NSK
7	Quantitative centralized lubrication device	China Liubian
8	Hydraulic station	Taiwan 7 ocean
9	Ball screw	Japan THK
10	Magnetic steel chip conveyor	China
11	Oil mist collector	Suzhou Hannuowei
12	Contactors, relays, air circuit breakers	France Schneider
13	Electric cabinet air conditioner	China Laber
14	Deburring device	GLTM
15	C-axis encoder	German Heidenhain
