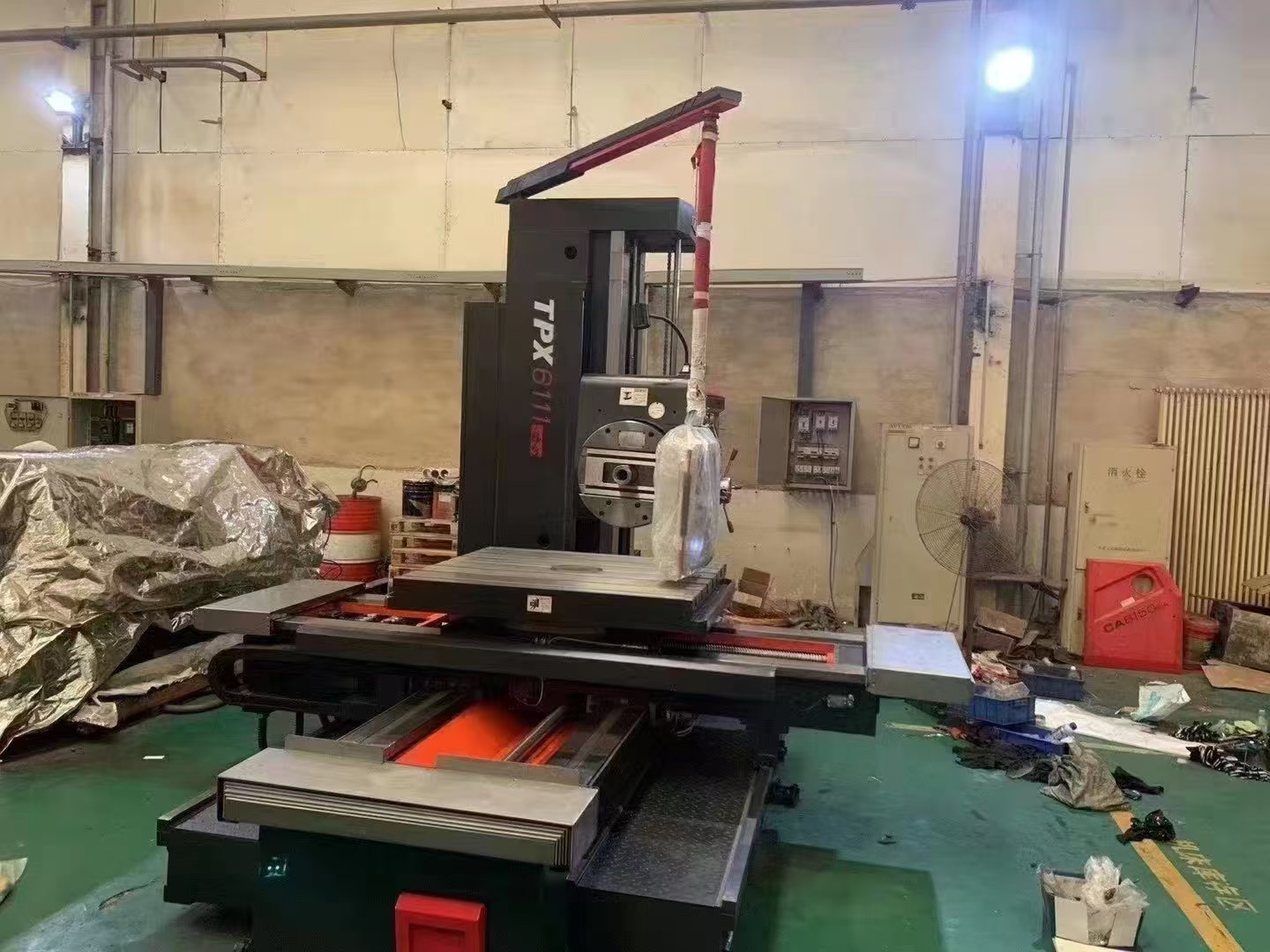

TPX6111B China Horizontal Boring Machine with DRO

Main Properties and Features

• Spindle three-point support, to achieve good rigidity, good precision maintenance.




• The main motion system of the machine is driven by a 15kw single-speed AC motor, which operates four variable speed cylinders via a hydraulic pre-selected rotary valve and pushes four sets of sliding gears to achieve a 24 class speed of 4-800r/min.




• The machine is equipped with a suspension button station, centralized operation, flexible and convenient; The main movement of the spindle speed and the change of each shaft feed are hydraulic preselected speed change, light, fast, accurate, easy to operate, save auxiliary time.




• Headstock lifting, table vertical and horizontal and rotary motion distribution are controlled by electromagnetic clutch, its clamping, loosening using hydraulic control, clamping with mechanical self-locking, clamping reliable, reduce the labor intensity of the operator at the same time, improve the degree of automation of machine tools.

• Table 4×90° rotary positioning, using optical aiming, high positioning accuracy, to ensure a high precision of turning boring.

• The bed guide rail and sliding seat guide rail are protected by fully enclosed stainless steel pull plate to prolong the service life of the guide rail.




• Machine tool electrical control using PLC programmable controller, reliable performance.
