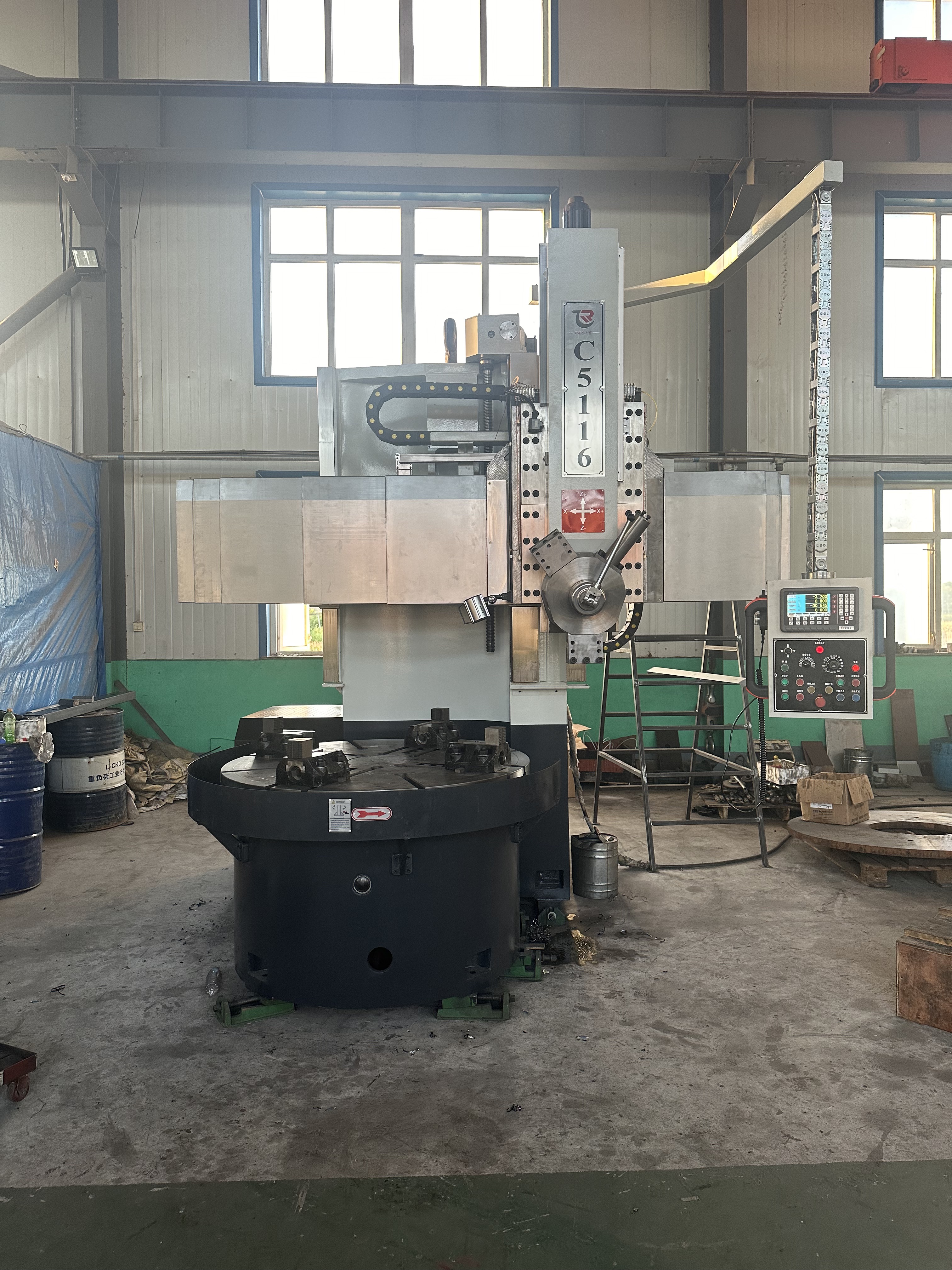

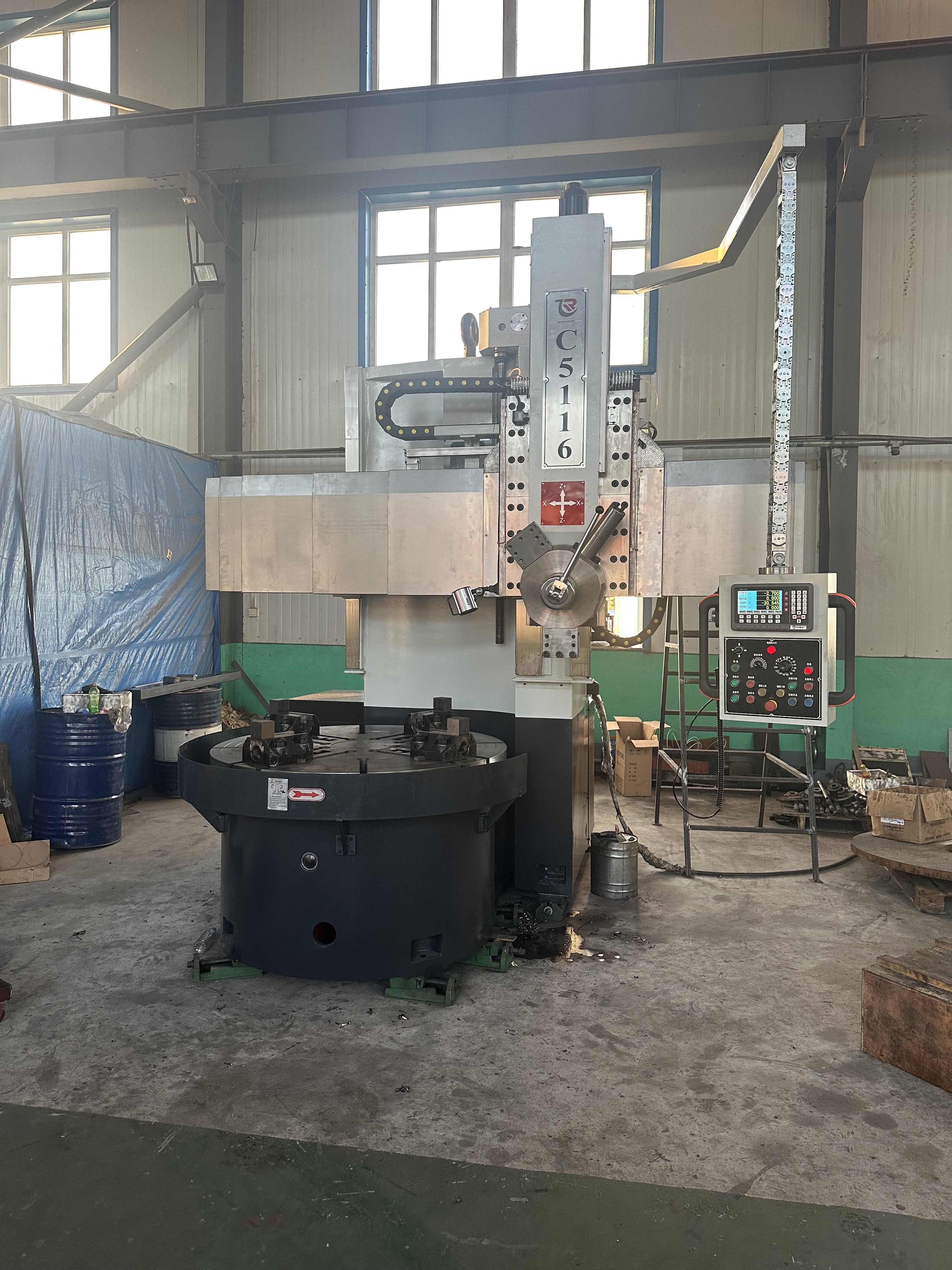

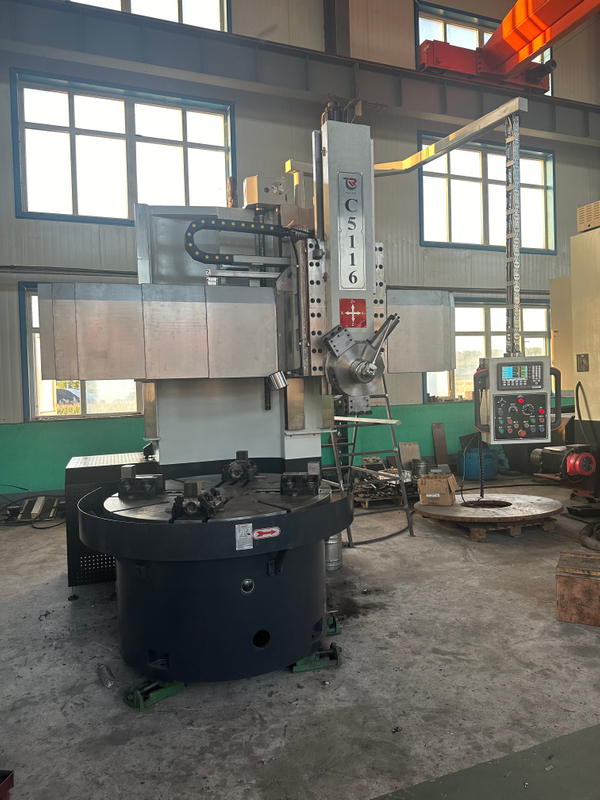

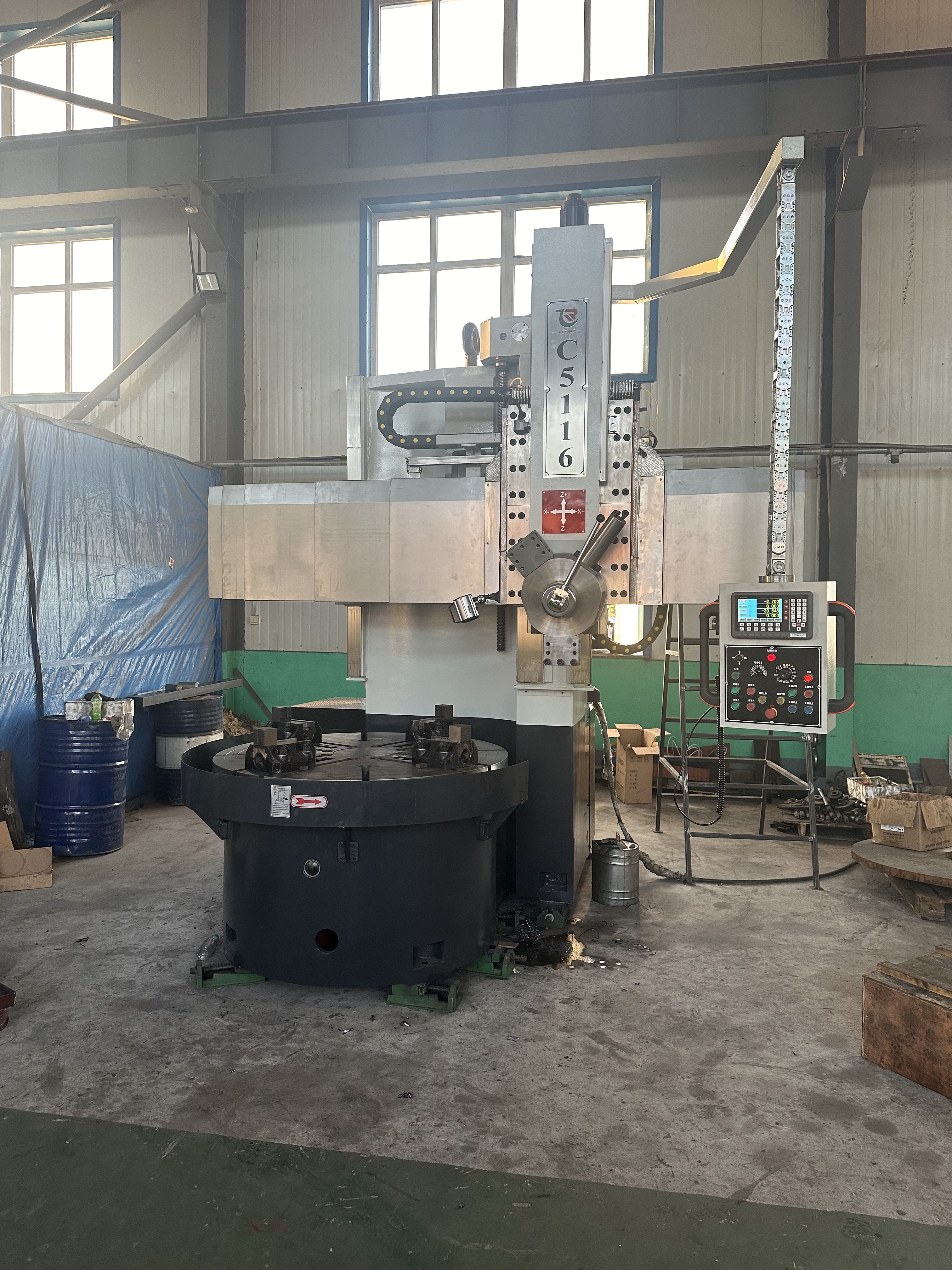

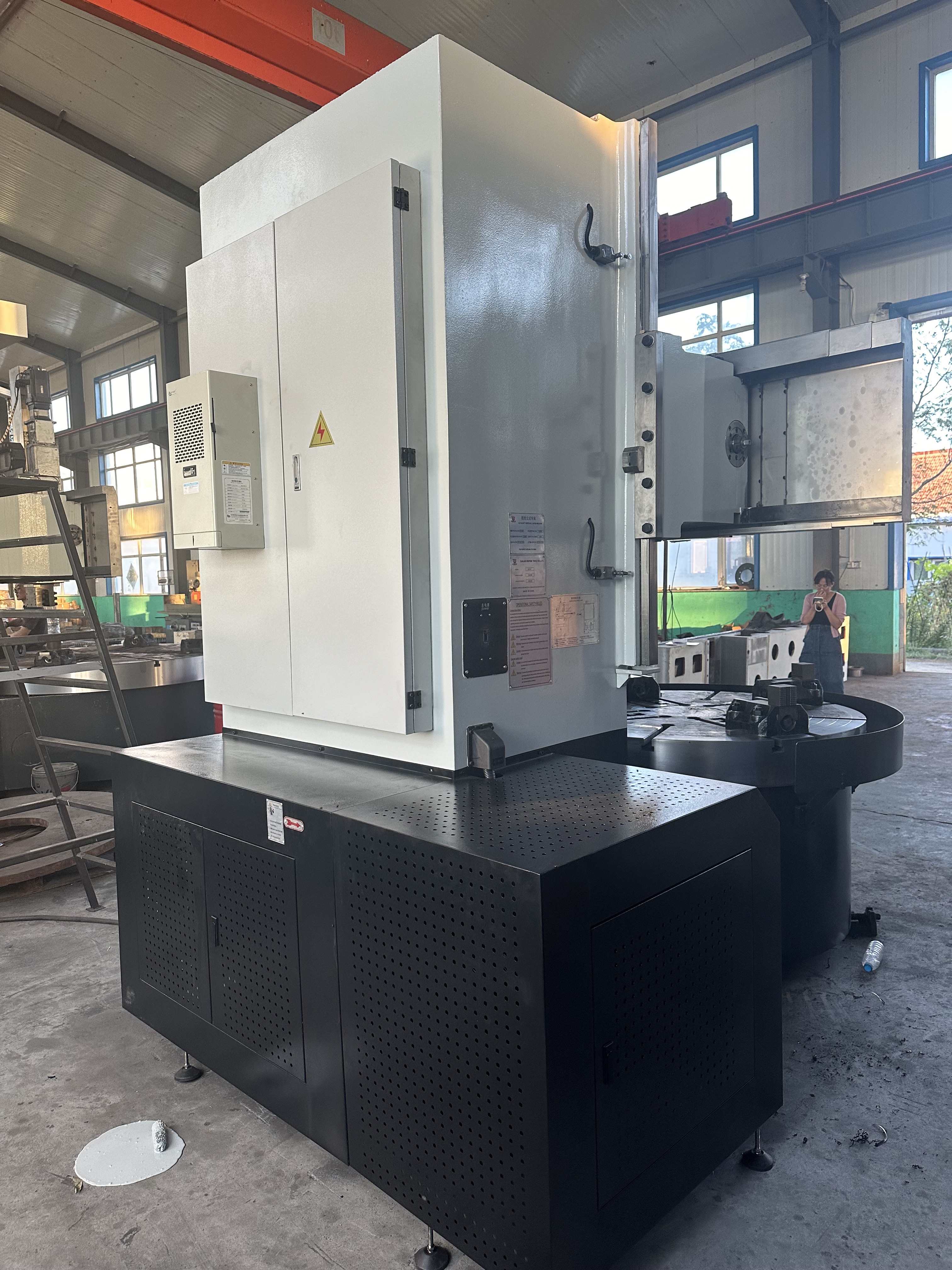

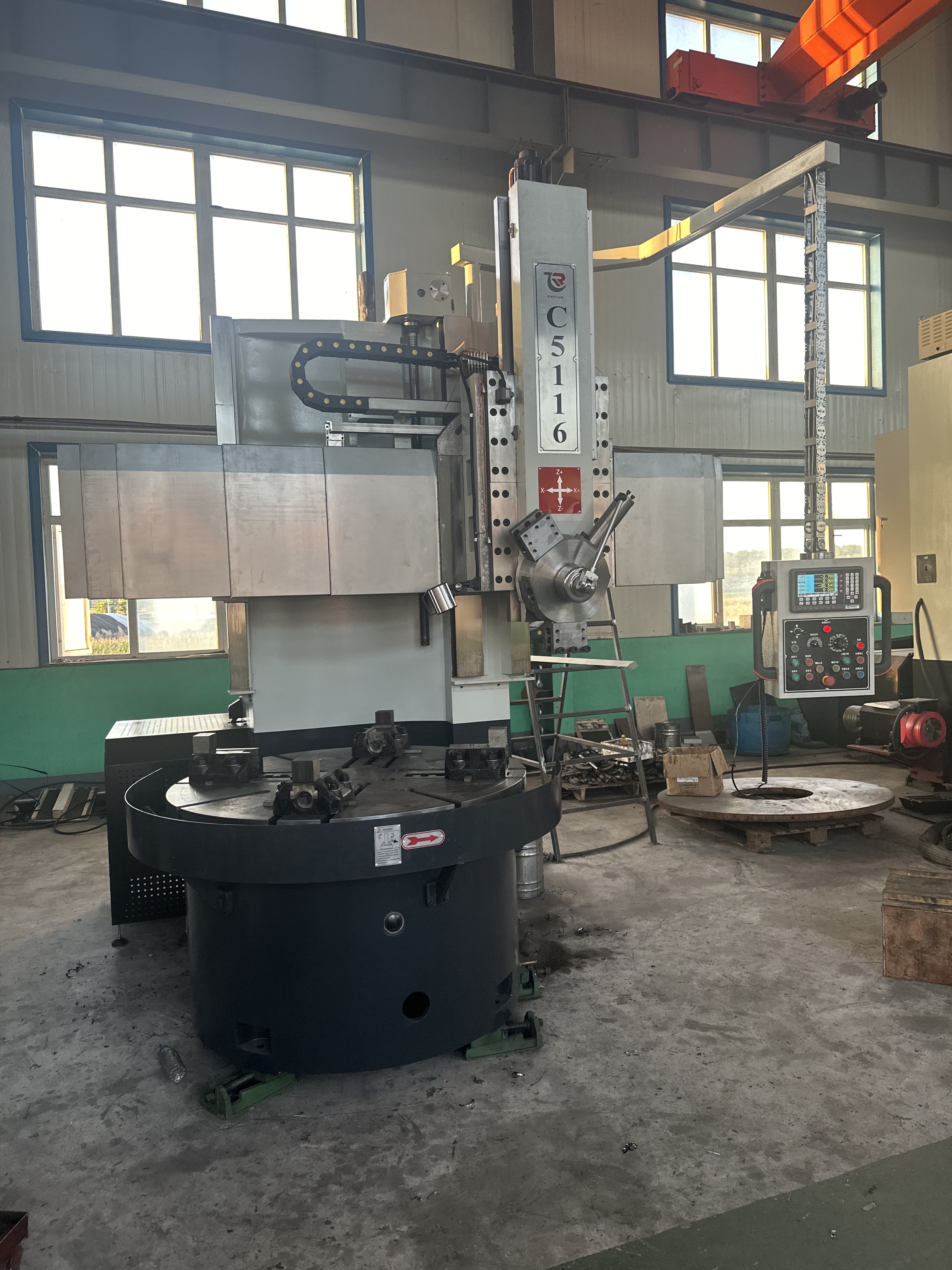

DVT5116 Vertical Lathe/ VTL with DRO

The machine tool is suitable for high speed steel cutting tools, hard alloy cutting tools and various high performance cutting tools, processing ferrous metal, non-ferrous metal and some non-metallic materials workpiece, on the machine tool can complete the inside and outside cylindrical surface, plane, inside and outside the ring groove rough, fine turning process.

Features

1.Configuring domestic and foreign advanced functional components.

2.Strong cutting ability.

3. It can also provide super heavy load on table.

4.High dynamic and static rigidity of machine tool.

5.Safe and reliable movements.

6.Long service life.

7.high processing efficiency in structural performance.

8.DVT system, servo drive, X.Z axis feed servo motor all adopt Beijing super synchronous products.

9. X.Z axis are driven by servo motor through precision planetary reducer to increase the torque of ball screw for horizontal and vertical movements.

Our advantages

Control System： The machine tool is controlled by DVT system. The control and mechanical action of the machine tool are interlocked in many places to ensure the reliability and safety of the control and mechanical action of the machine tool. In case of failure, as long as you press the emergency stop button, the whole equipment will be cut off.

Electrical System：The electrical control part is completely designed, constructed, debugging and after-sales service (non-outsourcing) by the company, which can effectively guarantee product quality and solve users' worries.

Tool Rest：The tool rest is controlled by the DVT system and consists of a beam slide seat, a rotary slide seat, a pentagram slide seat, and a ball screw assembly.

Beam: The beam has hydraulic locking mechanism.

Beam lifting is equipped with mechanical limit and electrical soft limit double limit, safe and reliable.

Hydraulic system: Hydraulic system includes: workbench hydraulic system, main transmission system, beam clamping system, etc.
