Have you ever wondered how gears are made to precision? Gear cutting is a crucial process used in industries such as automotive, aerospace, and manufacturing. Understanding the various methods of gear cutting is essential for both professionals and enthusiasts.
In this post, we’ll discuss the different cutting techniques and their impact on various industries.
Gear cutting is the process of creating the teeth on gears, which are essential for transmitting rotational force between mechanical parts. It involves removing material from a gear blank, using specialized cutting tools to form precise tooth profiles. The cutting methods vary depending on the type of gear needed and the production volume.
This process plays a critical role in numerous mechanical systems, such as in cars, industrial machines, and airplanes. Gear cutting ensures that gears mesh correctly, enabling smooth power transmission. By producing gears with precise teeth, the cutting process helps prevent issues like vibrations or failures that can arise from poorly made gears.
In industries like automotive and aerospace, gear cutting allows for the creation of gears that withstand high forces and operate efficiently. Whether it’s for a small electric motor or a large industrial machine, the accuracy of the cutting process ensures reliable and long-lasting gear performance.
Hobbing is one of the most widely used methods for gear cutting. It involves a rotating cutter, called a hob, that continuously removes material from a gear blank. This method is favored for producing gears with straight or helical teeth, such as spur and helical gears. It’s particularly popular in high-volume production due to its speed, accuracy, and cost-effectiveness.
Advantages of hobbing:
High speed and efficiency make it ideal for large production runs.
Produces gears with consistent quality, perfect for mass manufacturing.
Suitable for various gear types, including spur, helical, and worm gears.
However, hobbing does have limitations. It cannot produce internal gears or spline gears, which require different cutting techniques.
Shaping is one of the oldest gear cutting methods, involving a reciprocating cutter that moves across the gear blank. The cutter's profile matches the gear's tooth shape, cutting material as it moves back and forth. Shaping is especially useful for creating internal gears and gears with complex tooth profiles.
Benefits of shaping:
Ideal for low to medium production runs.
Offers flexibility for producing gears with varying tooth sizes.
Suitable for both internal and external gears.
Shaping differs from hobbing in terms of speed and flexibility. While hobbing is faster and more efficient for high-volume production, shaping allows for more precise and intricate cuts, especially on gears with more complex profiles.
Gear milling uses a rotating cutter to shape individual teeth on a gear blank. It’s a slower process compared to hobbing but is suitable for small production runs or custom gear production. The cutter moves over the gear blank one tooth at a time, allowing for precision but requiring more time.
Pros and cons of milling:
Pros: High precision, suitable for custom and small production runs.
Cons: Slower than other methods, making it less cost-effective for large volumes.
Common gear types produced by milling include spur gears and helical gears. Milling is often used when specialized or unique gear designs are needed, where high flexibility is more important than production speed.
Gear grinding is a precision finishing process where an abrasive wheel removes material from a gear blank. It’s typically used after a gear has been cut by another method, like hobbing or milling, to improve the surface finish and achieve tighter tolerances.
Use cases for gear grinding:
Necessary for hardened gears or those with tight tolerance requirements.
Used in applications where high precision and smooth surfaces are critical, such as aerospace or automotive gears.
Grinding provides superior surface finishes but is slower and more costly than other cutting methods. It ensures the gear teeth mesh smoothly, reducing friction and wear in high-performance applications.
Broaching involves using a tool with multiple teeth to remove material and create gear teeth. The tool moves linearly across the workpiece, cutting the teeth in a single pass. Broaching is fast and precise, making it ideal for mass production of gears, especially those with complex shapes.
Skiving, on the other hand, is typically used for creating internal gears. A rotating skiving tool engages with the gear blank to remove material and form the teeth. This method offers high productivity and is suitable for gears that need to be made quickly and with accuracy.
Both broaching and skiving provide efficient and high-quality results, though they tend to be more costly compared to other methods like hobbing. However, their ability to handle complex gear geometries makes them valuable for specialized applications.
When selecting a gear cutting process, several factors should be considered to ensure the best outcome. Gear type, accuracy requirements, and production volume all influence the choice of method.
Gear Type
Different gear types require specific cutting methods. For example, external gears like spur and helical gears are often produced using hobbing or milling. On the other hand, internal gears, such as those found in gearboxes, require processes like shaping or broaching due to their unique tooth structure.
Helical gears, with their angled teeth, are best produced through hobbing or milling, as these methods allow for precise tooth angles. In contrast, bevel gears require specialized equipment due to their conical shape, and grinding is often used for high-precision finishes.
Accuracy
Accuracy is a crucial factor when choosing the cutting method. For high-precision applications, such as aerospace or automotive industries, gear grinding or fine finishing processes are often necessary. These methods ensure tight tolerances and smooth meshing of the gear teeth.
If the gear’s functionality doesn’t require extremely tight tolerances, less precise methods like hobbing or milling may be sufficient. However, for gears used in machinery that require precise alignment, investing in higher-accuracy methods will pay off in the long term.
Production Volume
Production volume directly impacts the cost-effectiveness and time efficiency of the cutting process. For large-volume production, methods like hobbing are ideal due to their speed and efficiency. Hobbing can create gears in large batches, making it suitable for mass production where time and cost savings are crucial.
For smaller production runs or custom gears, milling or shaping might be a better fit, as these methods allow for more flexibility and customization. While slower and potentially more expensive, they offer the ability to create unique or less common gear types.
The material chosen for the gear also plays a significant role in determining the cutting process. Different materials require different cutting techniques to achieve the desired results.
Common Materials for Gear Cutting
Steel: Steel is the most commonly used material for gear production due to its strength and durability. Steel gears are often cut using hobbing or milling, and harder steel may require grinding for a smooth finish.
Aluminum: Lightweight and easy to machine, aluminum is often used in gears where weight reduction is important. Aluminum gears are typically made using milling or hobbing, as these methods offer high precision without excessive wear on the tool.
Bronze: Bronze is another material used for gears, especially in applications requiring resistance to corrosion. Like steel and aluminum, bronze gears can be made using hobbing or milling.
Material Hardness and Its Impact
The hardness of the material influences the choice of cutting method. Softer materials like aluminum are easier to machine and can be cut using a variety of methods, including milling and hobbing. Harder materials like hardened steel or tool steels require more specialized processes.
For example, grinding is often employed when dealing with hardened gears, as it can produce the fine surface finishes and tight tolerances required in high-precision applications. Grinding uses abrasive wheels to remove material, ensuring the gear teeth are smooth and uniform, even when working with hard materials.
When selecting the cutting method, it’s important to consider the material’s properties and hardness, as these factors will determine the best approach for achieving a precise and functional gear.
Fast and Cost-Effective for Large Batches
Gear cutting is particularly efficient when producing large quantities of gears. Methods like hobbing allow for high-speed production, reducing the time and labor required per unit. This makes it an ideal choice for industries that need to manufacture gears in bulk, such as automotive or industrial machinery sectors.
High Precision Achievable with the Right Equipment and Technique
When using advanced cutting methods like gear grinding or milling, high precision can be achieved. These techniques are ideal for applications that require tight tolerances, such as in aerospace or robotics. With the right tools, gear cutting can ensure gears mesh smoothly and operate with minimal friction.
Versatility in Producing a Variety of Gear Types
Gear cutting can be used to produce a wide range of gear types, from simple spur gears to more complex helical and bevel gears. Whether the gears need to be internal or external, gear cutting processes can accommodate different shapes and sizes. This flexibility makes it an essential manufacturing method across multiple industries.
Precision Challenges for Complex Geometries
While gear cutting can achieve high precision, producing complex geometries can be challenging. For gears with intricate profiles, such as bevel or worm gears, specialized equipment and techniques are required. Even with advanced tools, achieving the necessary precision for these complex shapes can be time-consuming and costly.
Material Waste Generated by Certain Methods
Some gear cutting methods, particularly those that involve removing large amounts of material, can generate significant waste. Methods like milling or broaching, while effective, may remove excess material that could have been reused. This not only impacts the cost of production but also contributes to environmental concerns.
Equipment and Tooling Costs, Especially for Custom Gears
Creating custom gears often requires specialized tools and machines, which can be costly. For example, broaching or certain types of grinding require custom-made tooling, adding to the overall cost of production. While these methods offer high precision, they can be expensive, particularly for low-volume or one-off gear production.
Gear cutting machines are essential for creating the precise teeth required for gears. Different machines are designed for specific cutting processes, each contributing to the production of high-quality gears.
Hobbing Machines

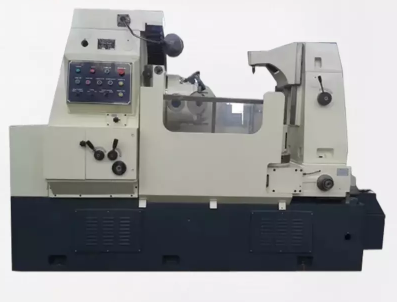

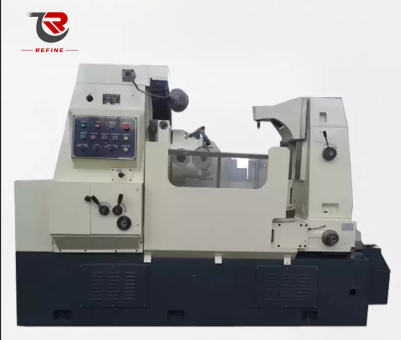

A gear hobbing machine is one of the most commonly used machines for producing gears. It uses a rotating hob cutter that continuously removes material from the gear blank. The blank and hob rotate at different speeds, which allows for the creation of teeth in a precise pattern. Hobbing is typically used for producing spur, helical, and worm gears.
Milling Machines
Milling machines use rotating cutters to remove material from a gear blank, one tooth at a time. This method is generally slower than hobbing but is ideal for producing small quantities of gears or custom designs. Milling is versatile and can produce a variety of gear types, though it is less efficient for large production volumes.
CNC Machines
CNC (Computer Numerical Control) machines are used for precise gear cutting. They are programmed to follow exact specifications, making them ideal for both high-precision and custom gears. CNC machines can perform hobbing, milling, and grinding processes, and they provide automated control over the cutting process, improving consistency and reducing human error.
The tools used in gear cutting play a crucial role in determining the precision and quality of the finished product. Here are some of the most common cutting tools:
Hob Cutters
Hob cutters are widely used in the gear cutting process, particularly in hobbing. These cutters are designed with multiple cutting edges to remove material from the gear blank efficiently. Hobbing machines use hob cutters to create helical or spur gears by cutting teeth in a continuous, spiral motion.
Broaches
Broaching tools have multiple cutting edges that remove material in a single pass. They are typically used for cutting internal gears or splines. Broaching is a fast and precise method, ideal for high-volume gear production.
Grinding Wheels

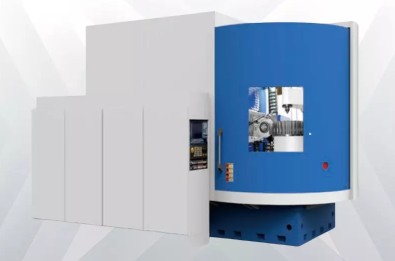

A gear grinding machine uses abrasive grinding wheels to achieve precise finishes on gear teeth. This tool is used after other cutting processes, such as hobbing or milling, to refine the teeth and ensure tight tolerances. Grinding provides the smooth, high-precision finishes required for high-performance gears, especially in applications where durability and minimal friction are crucial.
Milling Cutters
Milling cutters are used in milling machines to remove material and form gear teeth. These cutters are available in various shapes, depending on the type of gear being produced. Milling cutters work by cutting one tooth at a time, which makes them suitable for custom gears or small batch production.
The accuracy of the gear cutting process heavily relies on the quality of the tools used. Using high-quality tools, such as precision hob cutters, grinding wheels, and milling cutters, ensures that the gear teeth are formed with the exact shape and dimensions required. Poor-quality tools can lead to inaccurate cuts, resulting in gears that may not mesh properly, leading to mechanical inefficiencies, noise, and potential failure.
In industries where gears are critical to performance, such as aerospace and automotive sectors, using top-grade tools is essential for creating gears that meet the necessary durability and precision standards.
Precision plays a critical role in gear performance. The accuracy with which gear teeth are cut directly influences how well the gears mesh and transmit power. When gears are cut with tight tolerances, they fit together more seamlessly, leading to smoother operation and higher mechanical efficiency. On the other hand, imprecise cutting can result in gears that don’t align properly, causing increased friction, wear, and energy loss.
How gear accuracy impacts mechanical efficiency:
Reduced Friction: Accurate gears reduce friction between the teeth, which helps conserve energy and reduces heat buildup.
Less Wear: Precise cuts lead to a better fit, minimizing the wear on gear teeth, which prolongs the lifespan of the equipment.
Improved Power Transmission: When gears align perfectly, power is transmitted more effectively, ensuring that the machinery runs efficiently.
The alignment of gear teeth is crucial for maintaining the overall performance of machinery. Proper alignment ensures that the teeth mesh correctly, which results in a smooth transfer of force. Misalignment, however, can cause gears to slip or grind, leading to inefficient power transfer and potential failure.
Proper Alignment: Ensures efficient energy transfer and reduces stress on other components of the system.
Misalignment: Causes uneven wear, increased vibration, and excessive heat generation, which can ultimately lead to equipment failure.
In systems where gears are critical to operation—such as in engines or industrial machinery—precise gear cutting ensures that each gear functions as intended, contributing to overall machinery performance. High-quality, well-aligned gears improve not only the mechanical efficiency but also the reliability and longevity of the equipment.
Gear cutting is an essential process used across various industries to produce high-quality gears. Understanding the different methods, machines, and factors ensures the right approach for your needs.
Explore your gear cutting options today and consult experts for the best results. Remember, using high-quality equipment is crucial for the performance and longevity of your gears.
A: The most common methods include hobbing, milling, grinding, shaping, and broaching, each suitable for different gear types and production volumes.
A: High precision ensures smoother gear meshing, reducing friction and wear, which leads to higher mechanical efficiency and longer equipment life.
A: Yes, methods like milling and shaping allow for the production of custom gears, especially in small batch or specialized applications.
A: Key factors include gear type, accuracy requirements, production volume, and material considerations to ensure optimal performance and cost-efficiency.
