In modern machining, precision drives competition. But is 3+2 enough, or should you invest in a 5-Axis Machine? Aerospace, automotive, and medical sectors demand clarity. In this article, you'll learn the key differences, pros, and when each method makes the smartest choice.
3+2 axis machining is often called positional 5-axis machining. It uses a standard 3-axis machine but adds two rotary axes. These axes tilt or rotate the workpiece before cutting begins. Once locked in place, the machining continues on the X, Y, and Z axes.
This setup allows the tool to approach from different angles without needing multiple fixtures. It also enables shorter cutting tools, which are more rigid and stable. Shops often adopt 3+2 to reach surfaces that a 3-axis machine cannot easily access.

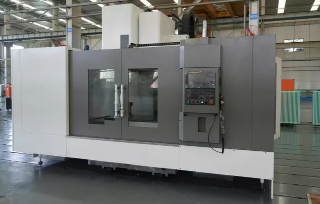

A 5-Axis Machine can move the tool or workpiece along five axes at the same time. Three are linear (X, Y, Z), and two are rotary (A, B, or C). This ability means the tool continuously adjusts during cutting.
It gives machinists the freedom to cut highly complex geometries in one setup. Aerospace parts, medical implants, and molds often require this flexibility. The result is higher accuracy, better surface finishes, and reduced cycle times.
Axis | Movement Type | Function |
X | Linear | Left–Right |
Y | Linear | Front–Back |
Z | Linear | Up–Down |
A | Rotary | Tilts around X |
B | Rotary | Tilts around Y |
Although both use five axes, the way they work is different. In 3+2, the rotary axes only position the part, then remain fixed. In a true 5-axis setup, all five axes move dynamically during machining.
This difference impacts speed, surface quality, and part complexity. 3+2 is great for angled drilling or cavities, but it cannot match the continuous flexibility of a 5-axis system. For projects that demand tighter tolerances and complex shapes, the 5-axis method is superior.
The biggest difference is movement. A 5-Axis Machine can move all five axes at the same time. This is known as simultaneous control. It allows the tool to cut across curves and complex surfaces in one continuous motion.
3+2 machining, on the other hand, is positional. The rotary axes tilt or rotate the part into place, then lock. Once locked, the machine cuts using only X, Y, and Z. This makes it more like a traditional 3-axis system with added flexibility.
A 5-Axis Machine has greater freedom. It offers three linear and two rotary axes moving together. This allows it to approach a part from almost any direction.
3+2 gives the same five axes, but not simultaneously. The part is repositioned, then cut. It handles angled holes and steep surfaces but lacks continuous adaptability.
Tool angle matters in machining. A 5-Axis Machine constantly adjusts tool orientation while cutting. This reduces the need for long tools, prevents chatter, and reaches hidden features.
In 3+2, the tool angle is set before cutting. While this helps for undercuts or tilted surfaces, the tool cannot adapt mid-cut. It may require more setups to reach all sides.
Programming for a 5-Axis Machine is complex. Toolpaths require advanced CAM software and skilled operators. Mistakes in programming can lead to collisions or wasted material.
3+2 machining has simpler programming. Since only three axes move at once, paths are easier to generate. It’s more approachable for shops upgrading from standard 3-axis systems.
Simultaneous motion in a 5-Axis Machine often results in superior surface quality. Continuous tool contact reduces blend lines and improves tolerance. This is critical for aerospace or medical applications.
3+2 delivers good precision but may show transitions where setups overlap. Extra finishing may be needed to reach the same level as full 5-axis machining.
A 5-Axis Machine often completes parts in a single setup. This reduces fixturing, shortens cycle times, and speeds up delivery. It's especially efficient for low-volume, high-complexity jobs.
3+2 saves time compared to 3-axis but may need multiple orientations. While faster than traditional methods, it’s less efficient than true 5-axis for complex parts.
The investment gap is significant. A 5-Axis Machine costs more to buy, maintain, and program. Software licenses and skilled labor also add to ongoing expenses.
3+2 machining is more affordable. Many shops retrofit rotary tables onto 3-axis machines to add capability. This lowers entry costs and provides a practical upgrade path.
Aspect | 3+2 Machining | 5-Axis Machine |
Motion | Positional, fixed during cut | Simultaneous, continuous |
Programming | Easier | Complex |
Precision | High, may need finishing | Very high |
Setup Time | Moderate | Minimal |
Cost | Lower | Higher |
Best For | Angled cuts, cost control | Complex parts, tight tolerances |
A 5-Axis Machine makes cutting complex parts possible in a single setup. It rotates and tilts the tool dynamically, letting it reach cavities, steep walls, and compound curves.
This is why industries like aerospace and medical use it for blades, implants, and turbine components. These parts often require angles and contours that simpler machines cannot achieve.
Continuous movement across all five axes reduces errors caused by multiple setups. A 5-Axis Machine aligns the tool closer to the workpiece, minimizing deflection and improving dimensional accuracy.
For example, in moldmaking, tolerance requirements are tight. With 5-axis machining, shops achieve these results without extra manual adjustments.
Tool orientation is a key factor in finish quality. Because a 5-Axis Machine keeps the cutter tangential to the surface, it reduces vibration and marks.
This leads to smoother finishes directly from the machine. As a result, polishing, grinding, or secondary operations are often minimized, saving both labor and time.
Traditional machining requires repositioning the workpiece multiple times. A 5-Axis Machine eliminates much of this. It can work on five sides of a part in one operation.
This not only shortens lead time but also cuts fixturing costs. For low-volume, high-complexity jobs, it ensures faster delivery and higher profitability.
A 3+2 setup is more budget-friendly than a full 5-Axis Machine. Shops can upgrade existing 3-axis machines with rotary tables or trunnions instead of buying new equipment.
This lowers the initial investment while still providing access to more machining angles. For small to mid-sized businesses, the cost savings can be significant.
Programming for 3+2 is simpler. Since only three axes move at once, toolpaths are easier to create and verify. Operators familiar with 3-axis machines adapt quickly to this method.
By reducing the complexity of programming, shops can shorten training time and lower the chance of programming errors.
A 3+2 system locks the workpiece at specific angles before machining. This lets machinists use shorter, stiffer tools to reach deep cavities or angled surfaces.
The result is less tool deflection and longer tool life. It also allows consistent dimensional stability, even when working on tough materials.
For shops not ready to commit to a full 5-Axis Machine, 3+2 machining offers a smooth transition. It delivers many of the benefits of advanced machining without the steep cost or training demands.
This makes it a smart stepping stone for companies planning to scale into full 5-axis production in the future.
A 5-Axis Machine offers unmatched flexibility, but the investment is steep. The purchase price, advanced CAM software, and ongoing maintenance all add up.
Operating it also requires skilled programmers and operators. Training costs are higher, and mistakes during setup can be expensive. For smaller shops, the technical barrier may feel overwhelming.
Programming is another challenge. Continuous tool motion across five axes demands precise toolpaths. Errors in coding can cause collisions or tool breakage. This complexity can slow adoption for teams without deep CNC experience.
While 3+2 machining reduces setups, it still has limits. The rotary axes lock in position, meaning the machine cannot adapt mid-cut.
This makes cycle times longer when cutting multiple faces. It also increases toolpath overlap, which may leave blend lines that need extra finishing.
Complex parts with deep undercuts or continuous curves often exceed what 3+2 can handle efficiently. In those cases, a 5-Axis Machine is the more practical option.
One misconception is that 3+2 machining equals full 5-axis capability. While both use five axes, the way they operate is very different.
Another myth is that all projects need a 5-Axis Machine. In reality, many parts can be produced more cost-effectively on 3+2.
Some also assume multi-axis machining always saves time. This depends on part geometry, material, and programming skill. Choosing the right method requires balancing cost, precision, and production volume.
The aerospace sector relies heavily on advanced machining. A 5-Axis Machine is essential for turbine blades, airframe structures, and engine housings. These components often have freeform surfaces and tight tolerances that cannot be achieved with simpler machines.
Defense projects also use 5-axis systems to produce high-strength parts for missiles and radar systems. The ability to machine five faces in one setup ensures consistency across critical defense equipment.
In the automotive industry, both 3+2 and 5-axis machining play roles. A 5-Axis Machine allows efficient production of engine blocks, transmission housings, and lightweight structures for fuel efficiency.
Motorsport teams push this further. They use 5-axis machining to create molds, complex suspension parts, and aerodynamic components. Precision and speed directly impact track performance, making this capability essential.
Medical parts must meet strict quality and safety standards. A 5-Axis Machine is widely used to produce surgical instruments, prosthetics, and implants. Its ability to handle complex curves and patient-specific geometries is a major advantage.
For example, custom knee implants often require intricate surfaces that must match the patient’s anatomy. 5-axis machining delivers this precision with minimal post-processing.
When developing prototypes, flexibility and speed matter more than high-volume efficiency. A 5-Axis Machine allows engineers to quickly test new designs, cut multiple sides in one pass, and reduce turnaround time.
Low-volume manufacturing of high-complexity parts also benefits. Industries such as robotics or renewable energy can produce unique parts without costly fixtures or multiple setups.
For many shops, 3+2 machining is a practical step up from standard 3-axis machines. It is less expensive to adopt, easier to program, and requires less operator training.
This approach works well when parts have angled holes, tilted surfaces, or cavities but don’t need continuous tool motion. For moldmaking, general automotive parts, or mid-complexity tooling, 3+2 delivers accuracy at lower cost.
A 5-Axis Machine shines when producing high-value, high-precision parts. Industries such as aerospace, medical, and defense often require this level of capability.
It's justified if your shop handles complex geometries, tight tolerances, or parts needing machining on five sides in one setup. Although the upfront cost is high, reduced setups and faster cycles create long-term savings.
Some shops run both 3+2 and 5-axis systems. This hybrid strategy balances cost and capability.
3+2 machines handle simpler or mid-level parts where efficiency matters most. A 5-Axis Machine is reserved for critical jobs that demand simultaneous motion and premium surface finishes.
This flexible model helps maximize equipment utilization and ROI. It also gives shops the ability to serve a wider customer base without overextending budgets.
Factor | 3+2 Machining | 5-Axis Machine |
Cost | Lower investment | High upfront |
Training | Easier learning curve | Skilled operators |
Part Complexity | Medium complexity | High complexity |
Speed & Efficiency | Moderate | Faster for intricate parts |
Best Fit | Transition shops | Aerospace, medical, defense |
Tip: Evaluate customer demand and part complexity before investing. Many shops start with 3+2 and scale into a 5-Axis Machine once advanced contracts justify the cost.
Automation continues to shape machining workflows. Advanced CAM software now generates optimized toolpaths faster and with fewer errors. For shops using a 5-Axis Machine, automation reduces downtime, improves repeatability, and helps maximize spindle utilization.
Tool libraries, collision checks, and simulation features are becoming standard. This shift lets operators spend less time programming and more time running machines.
In the past, only large aerospace or defense shops could justify the cost of a full 5-Axis Machine. Today, prices are dropping as more manufacturers enter the market.
Compact 5-axis models and retrofit kits allow small and medium shops to adopt advanced capabilities. Entry-level solutions give businesses a way to compete without overspending.
AI-driven CAM software is transforming machining. It analyzes past toolpaths, detects inefficiencies, and suggests better strategies. This technology helps reduce cycle time and improves tool life.
Digital twins go a step further. They replicate the 5-Axis Machine in a virtual environment, letting teams test programs before cutting material. This reduces scrap, increases accuracy, and speeds up onboarding for new projects.
The key difference between 3+2 and 5-axis lies in motion and flexibility, with 3+2 suited for cost-sensitive, mid-level parts, while a 5-Axis Machine delivers superior efficiency for complex surfaces. The choice should align with project complexity, budget, and precision requirements. A 5-Axis Machine unlocks unmatched versatility, while 3+2 remains a smart transitional step. Dalian Refine Tech provides reliable products and services that help clients achieve greater value across diverse manufacturing needs.
A: 3+2 locks the part in position, while a 5-Axis Machine moves all five axes simultaneously for greater flexibility.
A: A 5-Axis Machine offers better precision, smoother finishes, and faster cycle times, ideal for complex parts.
A: Not always. For simpler parts, 3+2 is more cost-effective, but a 5-Axis Machine pays off with complex geometries.
A: Yes, many shops use 3+2 as a transition before fully investing in a 5-Axis Machine.
