Views: 0 Author: Site Editor Publish Time: 2025-05-19 Origin: Site
Are you looking to understand how gears are made with high precision? Gear shaping is a vital process for producing internal and external gears with exceptional accuracy.
In this article, you'll learn about the step-by-step process of gear shaping, the key components, and the industries that rely on it. We'll also guide you on how to choose the best gear shaping machine and recommend top solutions from Dalian Refine Tech Co., Ltd.
Gear shaping is a machining process where a specialized cutting tool, called a shaper cutter, is used to carve teeth into a rotating gear blank. The gear shaping machine performs continuous cutting, producing each tooth of the gear one by one. The cutting tool moves reciprocally and is carefully timed with the workpiece, which rotates as the cutter feeds into it.
Unlike gear hobbing, which is typically used for external teeth, gear shaping is preferred when internal gears or other intricate gear profiles need to be produced. The process allows for the creation of a wide range of gears, including spur gears, helical gears, and bevel gears.
The process begins with the preparation of the gear blank, which is positioned in the machine. The shaper cutter is then mounted on the spindle, and the gear blank is rotated while the cutter feeds into it. The cutting process occurs in a reciprocating motion, where the cutter removes material from the gear blank to form the teeth.
Here's a step-by-step breakdown of the process:
The gear blank is carefully prepared and placed on the arbor of the machine. The blank is often made from high-quality steel or other durable materials, depending on the specifications.
The blank is securely fastened to the machine, ensuring that it remains in place during the cutting process. Any slight misalignment can lead to inaccuracies in the finished gear.
The shaper cutter moves back and forth along the blank as it rotates. The cutter removes material in precise increments, gradually forming the teeth of the gear.
After the teeth are cut, the gear may undergo finishing processes such as polishing to achieve the desired surface finish and dimensional accuracy.
Understanding the key components of a gear shaping machine can help you appreciate the complexity and precision required for effective gear production. Here are the main components:
Component | Function |
Shaper Cutter | The cutting tool used to create gear teeth. It can be made from high-strength materials to withstand the stresses during cutting. |
Gear Blank | The raw material that will be shaped into a gear. Typically made of steel or alloy for durability and strength. |
Spindle | Holds and rotates the gear blank during the cutting process. |
Arbor | The support that secures the gear blank on the machine. |
Feed Mechanism | Controls the movement of the cutter along the gear blank. |
Gear shaping machines provide several benefits over other gear-cutting techniques. Some of the key advantages include:
Gear shaping is highly accurate, producing gears with tight tolerances and excellent surface finishes. This makes it ideal for applications that require high-quality gears, such as in aerospace and medical equipment.
Gear shaping machines can produce a wide variety of gears, including spur gears, helical gears, and bevel gears. This versatility makes gear shaping suitable for many different industries.
Gear shaping ensures that each gear produced has the same dimensions and quality, thanks to the continuous cutting process. This consistency is vital when producing large volumes of gears.
Compared to other gear-cutting methods like gear hobbing, gear shaping generates less material waste, making it a more environmentally friendly option.
Gear shaping machines are used in several industries that require high-quality gears with exact tolerances. Some common applications include:
● Automotive Industry: Gear shaping is used to produce gears for automotive transmissions, engines, and steering systems. The precision of these gears is critical for the performance and reliability of vehicles.
● Aerospace Industry: In aerospace, gear shaping machines are used to produce gears for aircraft engines, landing gear systems, and other components. The high precision and reliability of these gears are crucial for flight safety.
● Medical Equipment: Gear shaping is essential in the production of gears used in medical devices such as X-ray machines, MRI scanners, and surgical robots. These gears must meet exacting standards to ensure the proper functioning of delicate medical equipment.
● Power Generation: In power generation, gear shaping machines are used to create gears for wind turbines, hydroelectric plants, and other high-performance systems where precision and durability are essential.
Selecting the right gear shaping machine for your needs depends on several factors, such as production volume, required precision, and the types of gears you need to manufacture. Here's a guide to help you choose the best machine for your gear manufacturing process:
a. Low to High Production Volume: If your production requirements are low to medium volume, a standard gear shaping machine might suffice. However, for high-volume manufacturing, consider a high-speed or CNC-controlled gear shaper to boost efficiency and accuracy.
b. Complex Gear Types: Consider whether you need to produce internal gears, spur gears, or complex geometries. CNC gear shapers offer higher flexibility in manufacturing a wide range of gears with different profiles and sizes.
● Precision Gear Manufacturing: If your gears need to meet tight tolerances, especially for high-performance industries like aerospace or medical equipment, invest in a CNC gear shaping machine. These machines provide greater control and are ideal for producing gears with high accuracy.
● Surface Finish Requirements: For gears that require a high surface finish, ensure the machine has capabilities to handle precise cutting and post-processing operations. Some machines are equipped with advanced finishing options for smooth surfaces.
● Material Selection: Different materials have different cutting requirements. When choosing a gear shaping machine, ensure it is compatible with the materials you plan to use. For example, harder materials like steel or titanium may require a machine with higher cutting power and more frequent tool changes.
● Automation and CNC Control: If your production line requires automation and minimal human intervention, CNC gear shaping machines are ideal. These machines can be programmed to handle various tasks, making them perfect for large-scale, precise production.
● Ease of Maintenance: Consider the maintenance requirements of the machine. Choose machines with easy-to-replace components like shaper cutters, and make sure there's accessible support for parts and servicing.
● Initial Investment: While CNC gear shaping machines are more expensive, they provide long-term value through improved precision, reduced human error, and higher production efficiency. Consider your budget and how the investment will pay off in terms of quality and output.
● Operational Costs: Factor in the operational costs, including tool wear, energy consumption, and maintenance. A more efficient machine will save costs over time, especially if it reduces downtime and increases throughput.
If you're looking to purchase a gear shaping machine, Dalian Refine Tech Co., Ltd. offers high-quality solutions that cater to a range of industrial needs. Their gear shaping machines, including CNC gear shaping machines, are designed to handle precision manufacturing with minimal operational costs.
Some of the notable products include:
● CK52 Series CNC Vertical Lathes: These machines offer high precision for turning complex rotating surfaces, which is essential for gears requiring tight tolerances.

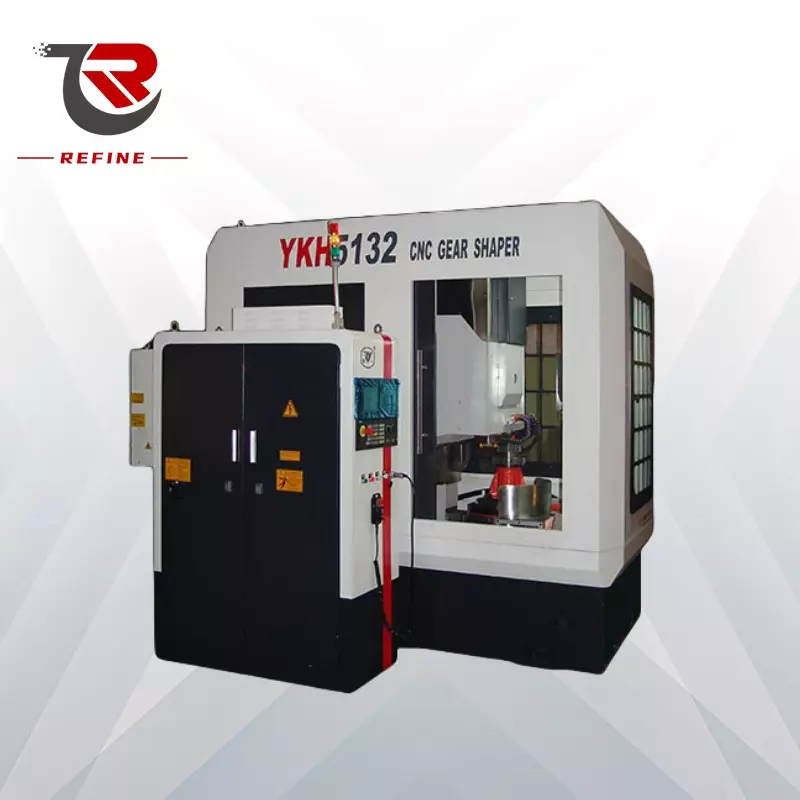

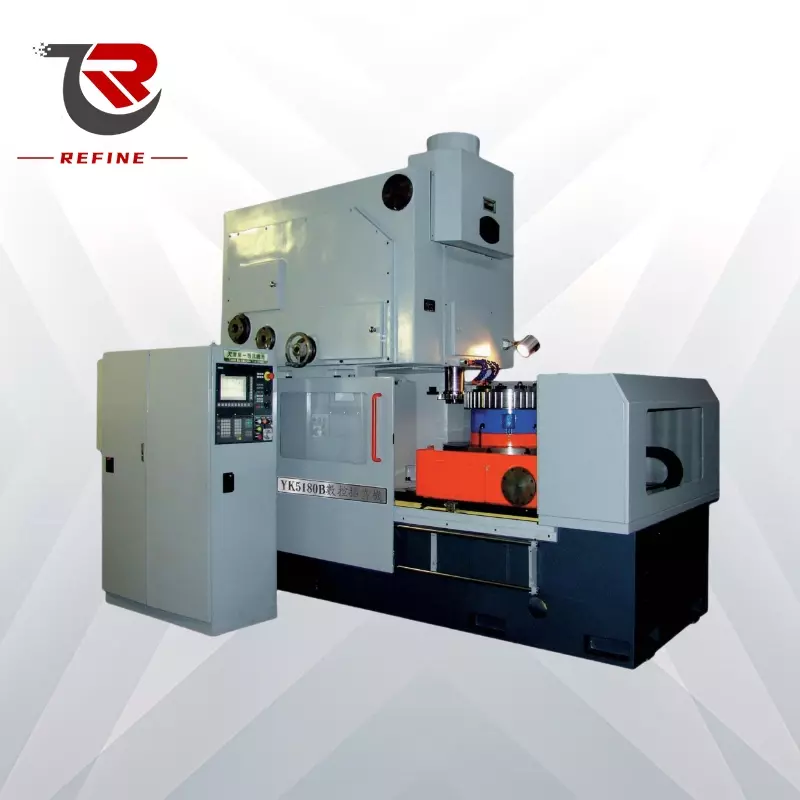

● Gear Shaping Machines: Dalian Refine Tech offers advanced gear shaping machines that provide excellent cutting precision, high-quality surface finishes, and flexibility in gear manufacturing. These machines are perfect for industries requiring precise gears, such as automotive, aerospace, and medical devices.
With a strong focus on customer satisfaction and technological innovation, Dalian Refine Tech Co., Ltd. provides reliable, high-performance machinery tailored to meet your specific production needs.
Q: What is a gear shaping machine used for?
A: It's used to cut internal and external gear teeth with high precision.
Q: How does a CNC gear shaping machine differ from a manual one?
A: CNC machines are automated, offering better precision and efficiency.
Q: What materials can a gear shaping machine cut?
A: It cuts materials like steel, alloy, and some harder metals.
Q: What industries use gear shaping machines?
A: Automotive, aerospace, medical, and power generation industries.
Q: How do I maintain a gear shaping machine?
A: Regularly replace cutters, lubricate, and calibrate for accuracy.
Gear shaping is a critical process in the production of high-precision gears. Whether you're producing gears for the automotive industry, medical devices, or power generation systems, a gear shaping machine can offer the accuracy, efficiency, and quality needed for these applications. By understanding the process, advantages, and challenges, you can select the right machine to meet your needs.
For those looking for high-quality gear shaping machines, Dalian Refine Tech Co., Ltd. offers some of the best solutions on the market. Their gear shaping machines provide exceptional performance and are designed to meet the rigorous demands of modern manufacturing.
