Are you looking to achieve high-precision gears for your mechanical systems? Gear grinding machines are essential for producing gears with exceptional accuracy and surface finish.
In this article, you'll learn what a gear grinding machine is, how it works, and the different types available. We'll also guide you on how to choose the right machine for your needs and recommend products from Dalian Refine Tech Co., Ltd.
Gear grinding is a machining process used to refine the teeth of gears, ensuring they meet precise dimensional tolerances and surface finish requirements. The grinding process is usually performed after other rough cutting methods like hobbing or shaping. It uses a grinding wheel made of abrasive material to remove small amounts of material from the gear teeth, resulting in smooth and accurate profiles. This process is essential for high-precision gears used in industries such as automotive, aerospace, and energy production.

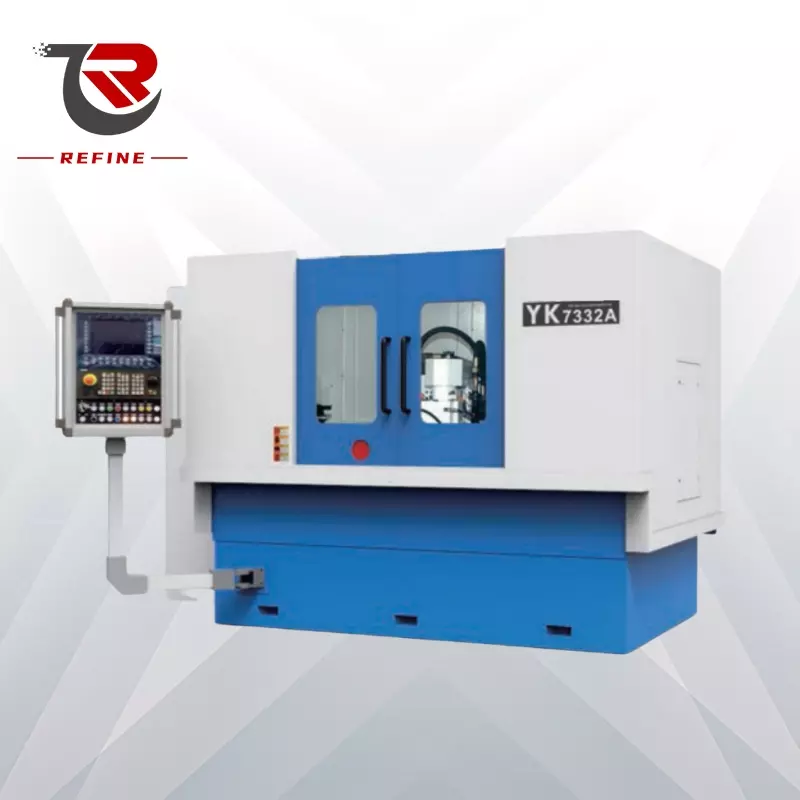

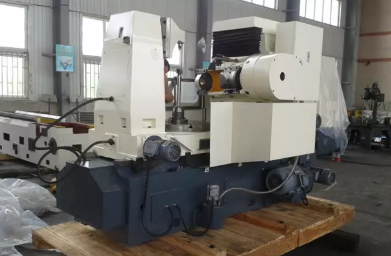

A gear grinding machine is a specialized tool used to perform the grinding process on gear teeth. It uses a rotating abrasive wheel to cut and finish the teeth of the gear, ensuring that the final product meets the necessary precision and surface finish. Gear grinding machines are equipped with advanced technology, such as CNC (Computer Numerical Control) systems, to ensure high accuracy and efficiency.
While gear grinding refers to the process of refining gear teeth, a gear grinding machine is the equipment used to carry out this process. The machine is designed specifically to handle the grinding process, providing consistent and precise results. In essence, gear grinding is the technique, and the gear grinding machine is the tool used to achieve that precision.
Different Types of Gear Grinding Machines
There are several types of gear grinding machines, each designed for specific grinding operations. Here are the most common types:
● Form Grinding Machines: These machines grind the gear tooth profile using a specially shaped grinding wheel. This method is typically used for gears with simple profiles.
● Generating Grinding Machines: In this process, the gear is continuously engaged with the grinding wheel, which moves along a specific path to generate the gear teeth. It is highly effective for gears with more complex shapes, such as helical or bevel gears.
● Cylindrical Grinding Machines: These machines are primarily used for grinding cylindrical gears, where the grinding wheel moves radially to remove material.
● Bevel Gear Grinding Machines: These specialized machines are used for grinding bevel gears, which are critical in applications like vehicle differentials and power transmission systems.
Type | Description | Common Applications |
Form Grinding | Grinding gear tooth profiles using a shaped grinding wheel. | Simple gear profiles like spur gears. |
Generating Grinding | Continuous grinding of the gear using a standard wheel. | Helical gears, complex profiles. |
Cylindrical Grinding | Radial grinding to remove material from cylindrical surfaces. | Cylindrical gears for various applications. |
Bevel Gear Grinding | Specialized machines for grinding bevel gears. | Automotive differentials, power systems. |
To understand how gear grinding machines work, it's important to familiarize yourself with the key components that make up the machine. These include:
Component | Function |
Grinding Wheel | The cutting tool used to remove material from the gear teeth. The wheel is made of abrasive grains that provide the cutting action. |
Workpiece Fixture | Secures the gear blank in place during grinding to ensure precision and alignment. |
Spindle | Holds and rotates the workpiece or the grinding wheel during the operation. |
Coolant System | Cools the grinding wheel and gear blank during the grinding process, preventing overheating and ensuring high grinding efficiency. |
The process of gear grinding is highly precise and involves several steps to ensure that the gear teeth are accurately shaped and finished.
The gear blank, typically made of steel or other high-strength materials, is carefully prepared by cleaning and ensuring it is free from debris or defects.
The gear blank is mounted onto the workpiece fixture. It is securely fastened to prevent any movement during the grinding process.
The gear grinding machine's abrasive wheel moves along the gear teeth, removing small amounts of material with each pass. The wheel's rotation is synchronized with the movement of the workpiece to achieve the desired tooth profile and finish.
After grinding, gears are inspected for accuracy and surface quality. Any necessary finishing steps, such as polishing or fine-tuning, are performed to meet the required standards.
High Precision: Gear grinding machines allow for high-precision gear production with tight tolerances. This is especially important for applications requiring high performance, such as in automotive transmissions or aerospace systems.
Smooth Surface Finish: Gear grinding produces gears with superior surface finishes, which enhances performance and longevity.
Consistency in Production: Once the machine is set up, it can produce large quantities of gears with consistent quality, ensuring uniformity in gear dimensions.
Cost-Effectiveness: While the initial cost of a gear grinding machine can be high, it provides long-term savings by reducing the need for manual labor and minimizing errors.
Industries That Use Gear Grinding Machines
Gear grinding machines are employed in various industries where high-precision gears are needed. Some key applications include:
● Automotive Industry: Producing gears for car engines, transmissions, and differentials.
● Aerospace: Manufacturing gears for aircraft systems, including engines and landing gear.
● Medical Equipment: Grinding precision gears for medical devices such as MRI machines, X-rays, and robotic surgery tools.
● Power Generation: Gear grinding is used to produce gears for wind turbines and other energy systems that require high durability and precision.
Selecting the right gear grinding machine depends on several factors, including the type of gears you need to manufacture, the level of precision required, and your production volume. Here's a guide to help you choose:
For high-volume production, CNC gear grinding machines are ideal as they can automate the process and maintain consistency across large batches.
Choose a gear grinding machine that offers the precision required for your gears. CNC machines provide higher accuracy, making them ideal for high-precision gear manufacturing.
Make sure the gear grinding machine is compatible with the material you plan to use, such as steel, titanium, or alloys.
Automation Features:
Consider machines with automated features if your production line requires high efficiency and minimal human intervention.
For high-quality and reliable gear grinding machines, Dalian Refine Tech Co., Ltd. offers a range of cutting-edge products designed for precision and durability. Their CNC gear grinding machines are designed to meet the needs of various industries, from automotive to aerospace, ensuring excellent gear performance.
Some of the notable products include:
● CK52 Series CNC Vertical Lathes: These machines are perfect for turning complex rotating surfaces, ideal for gears requiring tight tolerances.
● Advanced Gear Grinding Machines: Dalian Refine Tech Co., Ltd. provides machines capable of grinding various types of gears with exceptional precision, making them ideal for industries that require high-quality gears.
Q: What is the purpose of a gear grinding machine?
A: A gear grinding machine is used to refine and finish gear teeth, ensuring high precision and smooth surface finishes.
Q: How do gear grinding machines achieve high precision?
A: Gear grinding machines use precise CNC control and specialized grinding wheels to produce gears with tight tolerances.
Q: Can gear grinding machines be used for all types of gears?
A: Yes, gear grinding machines can be used for a variety of gears, including spur, helical, bevel, and cylindrical gears.
Q: What materials can be processed by gear grinding machines?
A: Gear grinding machines can handle materials like steel, titanium, and alloys, depending on the machine's specifications.
Q: How does a CNC gear grinding machine differ from a manual one?
A: CNC gear grinding machines offer higher precision, automation, and efficiency, while manual machines require more operator intervention.
In conclusion, gear grinding machines are essential tools for producing high-quality gears with precise dimensions and excellent surface finishes. Whether you're producing gears for the automotive industry or aerospace applications, these machines provide the accuracy, durability, and consistency required for top-performing gears. By understanding the process and selecting the right machine, manufacturers can ensure the highest quality in their gear production.
For those in need of reliable gear grinding machines, Dalian Refine Tech Co., Ltd. offers high-performance solutions that meet industry standards, ensuring precision and efficiency in your manufacturing process.
