Views: 0 Author: Site Editor Publish Time: 2025-08-08 Origin: Site
If you want to understand the difference between turning vs milling, focus on what moves during the process. In turning, the workpiece spins while the cutting tool remains stationary. In contrast, milling involves the cutting tool spinning and moving across the material. Turning is ideal for creating round parts such as shafts or bushings, whereas milling excels at producing flat surfaces, grooves, or complex shapes. Both turning vs milling are essential techniques in subtractive manufacturing, supporting industries like automotive and aerospace to grow rapidly.
Here's a quick look at typical shapes and parts each process creates:
Process Type | Typical Shapes/Parts Produced |
|---|---|
Turning | Cylindrical parts, threads, grooves |
Milling | Flat surfaces, pockets, holes, profiles |
Turning spins the workpiece to make round parts like shafts. Milling spins the cutting tool to make flat or tricky shapes.
Use turning when you need smooth, round parts. Use milling for surfaces with details, holes, or grooves.
Each process uses a different machine. Lathes are for turning. Milling machines are for milling. Mill-turn machines can do both jobs in one setup.
Pick turning for lots of simple, round parts. Pick milling for tricky shapes or small batches with fine details.
Always follow safety rules. Keep machines in good shape. Choose the process that matches your part's shape and material.
You use turning to shape materials into round or cylindrical parts. It works by spinning the workpiece while a cutting tool removes material. You see turning in many workshops because it makes shafts, rods, and bushings. It is one of the oldest and most important machining processes. You can create smooth surfaces, grooves, and threads using turning.
Turning follows a series of steps to make sure you get accurate results.
Here are the main steps you follow during turning:
Set the depth of cut by adjusting the tool and lathe speed. Take a trial cut and measure the workpiece.
Remove most of the material quickly using rough turning. Check and adjust as needed.
Use finish turning to get the final size and a smooth surface. Make small adjustments and check the tool.
Mark and cut shoulders for parts that need a step or change in diameter.
Face the ends of the workpiece to make them flat and square.
Spot the center if you plan to drill holes.
Cut grooves by choosing the right tool and feeding it into the workpiece.
Part off the finished piece using a special tool.
You repeat these steps for each part you make. Turning helps you control the size and shape of your workpiece.
You find many types of machines for turning. Each type has special features for different jobs.
Type of Turning Machine | Main Features and Applications |
|---|---|
Horizontal CNC Turning Machine | Spindle sits sideways; good for shafts and bushings; removes chips well; high output. |
Vertical CNC Turning Machine | Spindle stands upright; handles large, heavy parts; saves space; easy to load. |
2-Axis CNC Turning Machine | Moves tool in two directions; makes simple round parts; fast for big batches. |
3-Axis CNC Turning Machine | Tool moves in three directions; makes complex shapes; used in aerospace and cars. |
4-Axis CNC Turning Machine | Adds more movement; makes detailed parts. |
5-Axis CNC Turning Machine | Spins and moves in many ways; makes very complex shapes; saves time. |
Flatbed CNC Turning Machine | Flat bed gives support; good for threading and facing; used in metal shops. |
Slant Bed CNC Turning Machine | Bed sits at an angle; gives stability; used for medical and car parts. |
Linear Motion Turning Machine | Moves in straight lines; makes detailed threads and shapes; needs little help from you. |
You often use cnc turning machines for high precision and fast production.
Turning helps you make many useful parts.
You create shafts, pins, rods, bushings, camshafts, and crankshafts.
You add grooves, threads, tapers, and special shapes.
You make baseball bats, bowls, cue sticks, signboards, musical instruments, and furniture legs.
You see turning in aerospace, defense, medical, automotive, and consumer industries.
You work with materials like aluminum, brass, copper, titanium, steel, and plastics. Aluminum is light and easy to shape. Brass is good for details. Copper works well for electrical parts. Titanium is strong and light, used in medical and aerospace parts. Steel is tough and used in cars and machines. Plastics are used in electronics and medical parts.

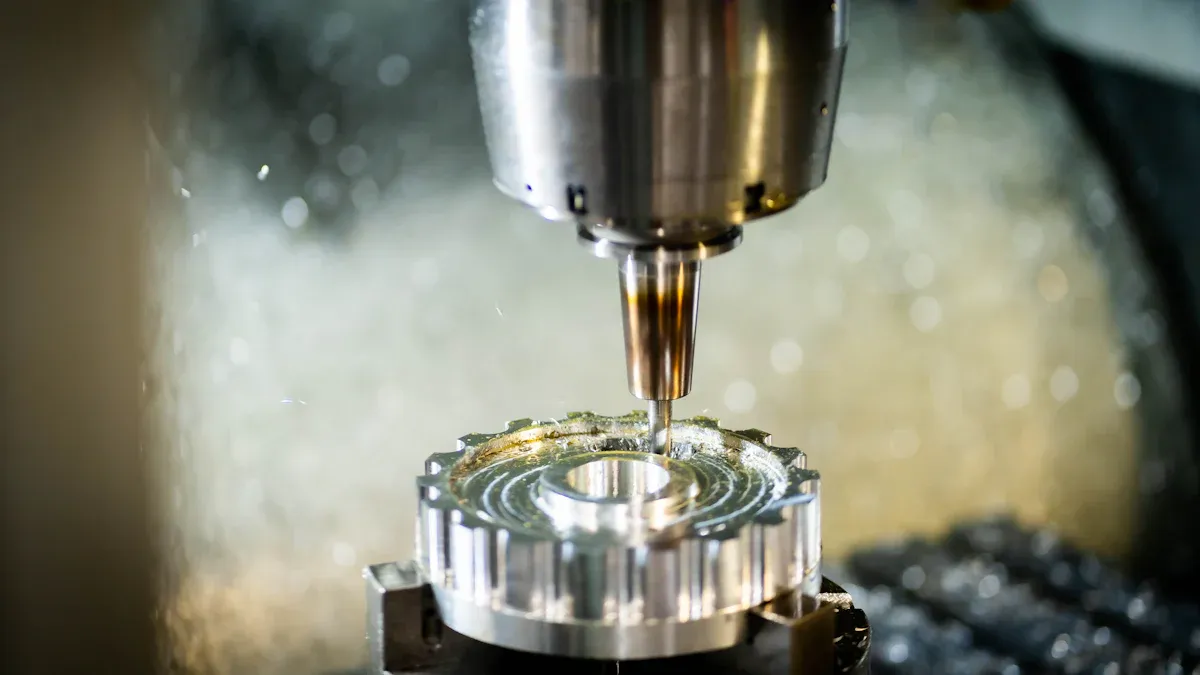

Milling shapes materials by cutting away small pieces. The cutting tool spins and moves over the material. You can make flat surfaces, slots, holes, and tricky shapes. Milling works on metals, plastics, and more. Many industries use milling because it is flexible and accurate.
First, you lock your workpiece onto the table. The milling machine spins the cutting tool very fast. You move the tool in different directions to cut. You control how deep and where each cut goes. Milling lets you make detailed parts by changing tools or speed. You can use special cutters for grooves, slots, or holes.
Tip: Always check your setup before starting. A tight workpiece and sharp tool give the best results.
There are many kinds of milling machines. Each one is good for certain jobs.
Milling Machine Type | Main Features |
|---|---|
Knee & Column Milling Machines | Has a tall column and a knee that moves up and down. There are vertical, horizontal, and universal types. |
Vertical Milling Machines | The spindle stands up and can turn. It is used for grooves, slots, flat surfaces, drilling, and boring. |
Horizontal Milling Machines | The spindle is sideways. The workpiece lies flat. It is used for rough cuts on big pieces. |
Universal Milling Machines | Can be used upright or sideways. Has attachments for slotting, rotary, and more. The table can turn up to 45 degrees. |
Fixed Bed Milling Machines | The bed does not move. The spindle moves instead. There are simplex, duplex, and triplex types. |
Machines are also grouped by axes and structure.
Classification Basis | Milling Machine Type | Main Features and Applications |
|---|---|---|
Number of Axes | 3-axis | Moves in X, Y, and Z directions. It is simple and costs less. |
4-axis | Adds a spinning axis. It can make more complex parts. | |
5-axis | Moves in three straight and two spinning ways. Good for tricky parts and making many at once. | |
6-axis | Moves in three straight and three spinning ways. It can work on all sides at once. | |
Machine Structure | Fixed Bed | The bed stays still. Fewer moving parts make it easy to care for. |
Knee-Type | The table sits on a knee that moves up and down. Good for drilling. | |
Planer-Type | Simple to set up for flat surfaces. Used a lot in woodworking. | |
C-Frame | The spindle and knee do not move. The spindle goes up and down. Used for making many parts. | |
Travelling Column | The column slides sideways. Used for very long parts. | |
Gantry | Has a long bed and a frame over it. Many cutters move sideways. Used for big parts. |
Milling is used in lots of industries.
In aerospace, you make threaded parts for planes.
For medical devices, you make tools, implants, and dental parts.
In precision machining, you make custom threaded parts, test pieces, and small batches.
In power generation, you make turbine parts, generator pieces, and mounts.
You use many materials for milling.
Material | Common Industrial Applications | Notes on Machinability and Usage |
|---|---|---|
Alloy Steel | Used for car parts and machine pieces. | Strength and hardness change with the mix. |
Stainless Steel | Used for medical tools, food machines, and car parts. | Does not rust and is easy to cut. |
Aluminum | Used in electronics, medical tools, planes, and cars. | Light, strong, and easy to cut. |
Brass | Used for locks, bearings, pipes, and wires. | Cuts easily and does not rust. |
Titanium | Used in planes and sports gear. | Very strong, does not rust, but costs more. |
Plastics (ABS, PVC, PC, Nylon, POM, PEEK, PET) | Used for pipes, test pieces, medical tools, and insulation. | Some are easy to cut, others are harder. |
You should keep your milling machine clean and oiled. Tighten bolts and clear away chips to stop damage. Check and sharpen your cutting tools. Make sure coolant is full and clamps are not worn out.
Note: Taking care of your machine helps it last longer and work better.
When you look at turning and milling, the main difference is how things move. In turning, the workpiece spins fast while the cutting tool stays in one place. In milling, the workpiece does not move, but the cutting tool spins and moves over it. This change makes each process good for different jobs.
Here is a table to help you see the main differences:
Aspect | Turning | Milling |
|---|---|---|
Primary Motion | Workpiece rotates around a central axis | Cutting tool rotates |
Tool Movement | Single-point cutting tool is mostly stationary | Multi-point cutter moves across the workpiece |
Workpiece Movement | Rotates rapidly against the tool | Mostly stationary, fixed on the table |
Typical Workpiece Shape | Cylindrical, conical parts (shafts, bushings) | Flat, prismatic, or complex multi-surface parts |
Tool Type | Single-point cutting tool | Rotating multi-point cutter |
Machining Suitability | Round forms, internal bores, threads | Flat faces, pockets, keyways, chamfers |
Machine Setup | Workpiece clamped in lathe chuck, spun on spindle | Workpiece fixed; tool spindle vertical/horizontal |
Tip: If you see a round part being made, it is probably turning. If you see a flat or odd-shaped part, it is likely milling.
You can tell the difference by looking at the shapes made. Turning is best for round or tube-like parts. You use it to make things like rods, shafts, and bushings. The workpiece spins, and the tool shapes it into circles or cones. Turning gives smooth and even finishes on round parts.
Milling can make many shapes. The cutting tool spins and moves in different ways. You can make flat surfaces, holes, slots, and even tricky 3D shapes. Milling is great for parts that need holes, grooves, or special details. It works well for gear brackets, covers, and other parts that are not round.
Here is another table to show how the two processes compare:
Feature | CNC Milling | CNC Turning |
|---|---|---|
Workpiece Movement | Stationary while the cutting tool rotates | Rotates while the cutting tool stays in place |
Tool Movement | Moves along multiple axes | Moves linearly along one or two axes |
Ideal Part Shapes | Complex flat, contoured, and angled surfaces | Cylindrical or round shapes |
Surface Finish | Suitable for detailed finishes | Produces smooth concentric finishes |
Common Applications | Gear brackets, enclosures | Shafts, bushings, threaded rods |
Note: Turning is best for round parts. Milling is better for shapes with more details.
You can spot turning or milling by watching what moves. If the workpiece spins, you are seeing turning. If the tool spins and moves over a still workpiece, that is milling.
Here are some easy ways to tell which process is used:
Watch for the spinning part. If the workpiece spins, it is turning. If the tool spins, it is milling.
Look at the shape. Round and smooth parts come from turning. Flat, angled, or detailed parts come from milling.
Notice the machine. Lathes are used for turning. Milling machines are used for milling. Some machines, called mill-turn machines, can do both jobs.
Listen to the sound. Turning usually sounds steady and smooth. Milling can sound different because the tool moves in many ways.
Remember: Use turning for round parts. Use milling for flat or tricky shapes.
You will also see differences in how smooth the part is and how exact the size is. Turning often gives a smoother finish and tighter fit for round parts. Milling can also be very exact, but it is best when you need special shapes or lots of features on one part.
When you pick between turning and milling, think about the shape you want, the finish you need, and what machines you have. Mill-turn machines let you do both jobs in one setup, which saves time and helps make hard parts easier.
Picking the right machining process depends on your part's shape, what it's made of, and how many you need. You want to choose the best process for your project. This helps you get good results. Here is a simple table to help you pick:
Factor | Milling | Turning |
|---|---|---|
Part Shape | Complex, flat, or angled surfaces | Cylindrical, round, or symmetrical |
Material | Handles hard metals and plastics | Works well for softer materials |
Production Volume | Good for small to medium batches | Best for high-volume, fast cycles |
Surface Finish & Tolerances | Achieves tight tolerances on complex parts | Excellent finish on round parts |
Cost | Higher due to setup and time | Lower for simple, round shapes |
You should use milling if you need flat surfaces, pockets, or lots of features. Milling lets you make detailed parts with high accuracy. It works well for steel, titanium, and plastics. You can get tight fits and tricky shapes, but it might take more time and money.
Turning is best for round parts like shafts, rods, or bushings. It makes smooth finishes and is fast for big batches. You get very accurate round parts, but turning cannot make flat or angled surfaces easily.
Tip: If your part looks like a tube or ring, pick turning. If it has many sides or holes, use milling.
Mill-turn machines do both processes in one machine. You can finish a part without moving it to another machine. This saves time and helps you make parts more accurately. Mill-turn machines help you work faster, make fewer mistakes, and handle tricky shapes. They need skilled workers and careful setup, but they help you make hard parts quickly.
Mill-turn advantages:
Finish parts in one setup
Better surface finish and less tool wear
Remove material quickly
Save space and energy
Mill-turn challenges:
Harder to program and take care of
Workers need extra training
Always think about safety. Wear safety glasses and tie back long hair. Never leave machines running alone. Keep your hands away from moving parts. Read the manual before you start. These steps help keep you safe while you learn.
You can tell the difference by seeing what moves. In turning, the workpiece spins fast. In milling, the tool spins instead. Turning is good for round things like shafts or pulleys. Milling works better for shapes with many angles or sides.
Tip: Turning is like shaping clay on a wheel. Milling is like carving small details into a block.
Aspect | Turning | Milling |
|---|---|---|
Workpiece Movement | Rotates | Stays still |
Ideal Part Shapes | Cylindrical | Complex, multi-angled |
Begin with easy projects. Choose the process that fits your part's shape. Keep asking questions and learning new things. Every expert was once a beginner!
You see the workpiece spin in turning. You watch the cutting tool spin in milling. Turning shapes round parts. Milling creates flat or complex shapes.
You use mill-turn machines for both processes. It lets you finish parts in one setup. You save time and get better accuracy.
Process | Best Materials |
|---|---|
Turning | Aluminum, brass, steel |
Milling | Steel, titanium, plastics |
You pick materials based on part shape and finish.
Look at your part's shape.
Pick turning for round parts.
Choose milling for flat or detailed parts.
Use mill-turn if you need both.
You get more accuracy and speed with CNC. Manual machines help you learn basics. Start with manual, then move to CNC when you feel ready.
