CNC Lathe vs CNC Milling Machine: A Comprehensive Guide

You can see a big difference between a cnc lathe and a cnc milling machine. In a cnc lathe, the workpiece spins but the cutting tool does not move. This makes it great for making shafts, screws, and round parts. A cnc milling machine holds the workpiece still and turns the tool. This lets you shape flat, slanted, or tricky surfaces. Both kinds of cnc machines help the global cnc market grow. The market was worth over $81 billion in 2023. You find cnc machining in cars, airplanes, and medical fields. It makes things like engine parts and surgical tools.

You use computer numeric control to make the machining process automatic. This helps make things fast and accurate. Learning these basics helps you choose the best cnc machine for your job.

Key Takeaways

• CNC lathes turn the workpiece to make round parts like shafts and screws. CNC milling machines spin the cutting tool to shape flat or tricky surfaces.

• Pick a CNC lathe if you need fast, high-volume making of round parts. Use a CNC mill for detailed, multi-axis shaping of hard or 3D parts.

• Both machines are very accurate. Lathes are often faster for round parts. Mills are better for making hard shapes.

• The material you pick is important. Metals like aluminum and steel work well on both machines. Think about strength, hardness, and cost before you choose.

• Good training, setup, and care make results and safety better. Choose the machine that matches your part needs, budget, and skill level.

CNC Lathe Operation

How CNC Lathe Machines Work

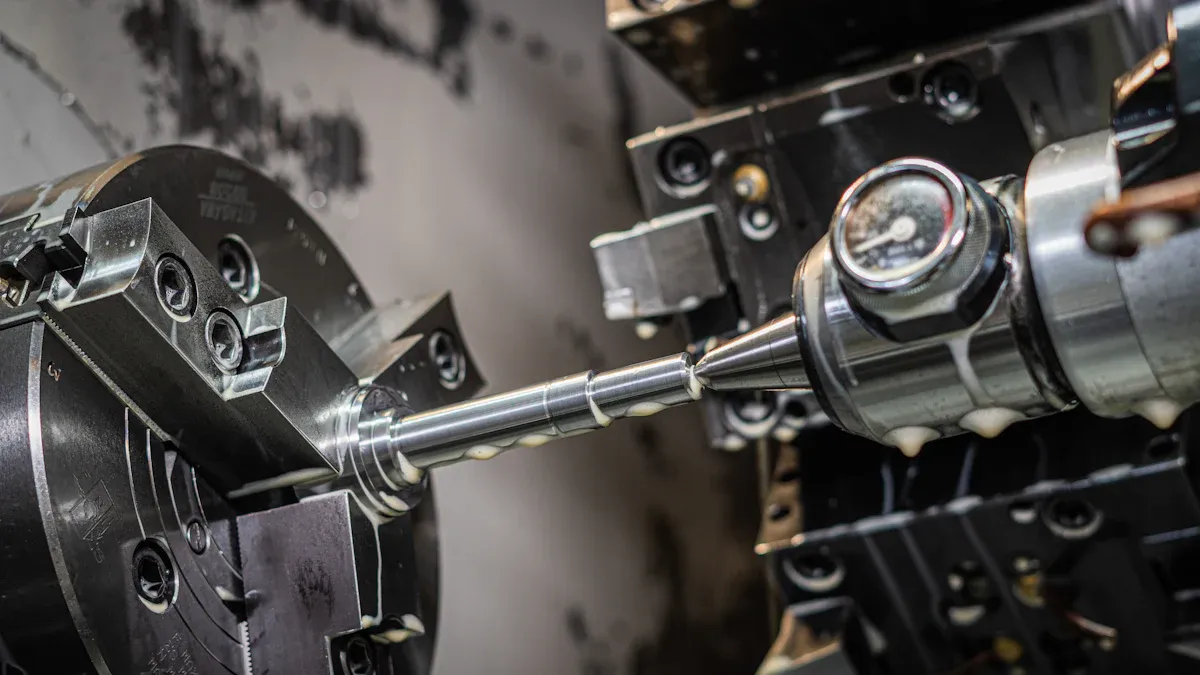

You use a cnc lathe to shape metal or plastic by spinning the workpiece. The cutting tool stays still while the chuck rotates the material at high speed. This turning process lets you remove layers from the outside or inside of the part. You can make smooth, round, or conical shapes. The cnc system controls the speed and position of the tool. It gives you a high level of precision. You can repeat the same cut many times and get identical results. Many factories use cnc lathes because they work fast and keep tight tolerances.

CNC Lathe Axes

A cnc lathe uses two main axes: X and Z. The X-axis moves the cutting tool in and out, closer or farther from the center of the spinning part. The Z-axis moves the tool along the length of the workpiece, parallel to the spindle. The chuck spins around the Z-axis. These two axes let you cut both the diameter and the length of cylindrical parts. You can make grooves, threads, and tapers. The cnc controls each axis with great accuracy. You get clean cuts and smooth finishes.

CNC Lathe Applications

You find cnc lathe machines in many industries. They make round or cylindrical components for cars, planes, and machines. Here are some common parts you can produce:

• Shafts

• Screws and nuts

• Threads

• Connector pins

• Fasteners

• Bushings

Cnc lathes handle high-volume jobs. You get thousands of identical cylindrical parts with little effort. The computer control keeps every part within strict limits. You also face some challenges during operation. Tool wear, vibration, and programming errors can affect quality. You can see some common issues and solutions in the table below:

Tip: Regular maintenance and good training help you get the best results from your cnc lathe.

CNC Milling Machine Operation

How CNC Milling Works

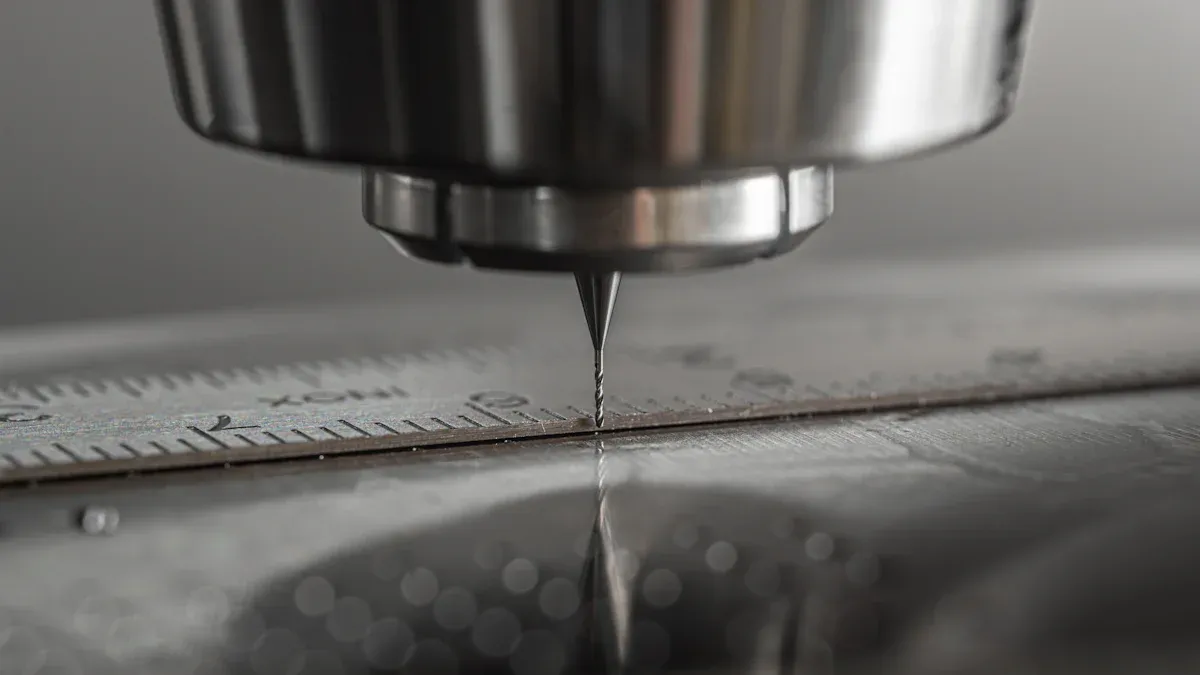

You use a cnc milling machine to shape parts by rotating a cutting tool. The workpiece stays still on the table. The tool spins at high speed and moves along different axes to remove material. This process lets you create flat surfaces, slots, pockets, and even complex 3D shapes. You can follow a clear set of steps when you use cnc milling:

1. Create a 3D CAD model of your part. You design it using software and set the size and material.

2. Convert the CAD model into G-code. CAM software does this for you, turning your design into instructions for the cnc mill.

3. Set up the milling machine. You attach the right tool, secure the workpiece, and check the axes.

4. Run the cnc milling process. The machine follows the G-code to cut the part. You only step in if you see a problem.

5. Finish the part. You may polish, coat, or treat it to get the final look or strength.

Tip: Careful setup and planning help you avoid mistakes and get the best results from your cnc mills.

CNC Mill Axes

A cnc mill uses three main axes: X, Y, and Z. The X-axis moves the tool left and right. The Y-axis moves it front and back. The Z-axis moves it up and down. These three axes let you shape parts in three dimensions. Some milling machines add rotary axes, called A, B, or C. These axes let the tool or table rotate, giving you more freedom. Multi-axis cnc milling machines, like 5-axis mills, can cut complex shapes in one setup. You save time and get better accuracy. You find different types of multi-axis machines, such as trunnion, tilting spindle, and gantry styles. They help you reach hard-to-cut areas and make detailed parts.

• 3-axis: Basic shaping, good for flat or simple parts.

• 5-axis: Advanced shaping, great for complex and curved surfaces.

• Multi-axis: Fewer setups, higher precision, more part features.

CNC Milling Applications

You see cnc milling machines in many industries. They make parts for cars, planes, medical devices, and electronics. These machines handle jobs that need tight tolerances and detailed shapes. Here is a table of common uses:

CNC mills give you the power to make both simple and complex parts. You can trust them for high-speed, accurate, and repeatable results.

CNC Lathe vs CNC Mill Comparison

Operational Differences

You see big differences in how a cnc lathe and a cnc mill work. A cnc lathe spins the workpiece while the cutting tool stays still. This setup uses a spindle, feed box, slide box, and bed. The chuck holds the part, and the tailstock supports it during heavy cuts or drilling. The tool turret lets you pick and position tools quickly. This simple structure makes the cnc lathe easy to set up and run.

A cnc mill works in a different way. The workpiece stays still, and the cutting tool spins and moves along several axes. You can use three, four, or even five axes. This lets you cut from many angles and make complex shapes. The milling machine has a more complex build, which gives you more options but also needs more setup.

Here is a quick comparison:

Note: You get more flexibility from a cnc mill, but a cnc lathe is faster for round parts.

Part Types

You should choose your machine based on the part you want to make. A cnc lathe works best for round or cylindrical parts. You can make shafts, bushings, plugs, threads, and grooves. It is great for power transmission parts, medical implants, and valve internals. Swiss-type lathes help you make small, detailed parts like watch pieces or connectors. Vertical lathes handle large, heavy parts such as turbine casings.

A cnc mill is your choice for parts with flat surfaces, slots, pockets, or 3D shapes. You can make custom brackets, molds, engine parts, and electronic cases. Multi-axis cnc mills let you cut complex 3D shapes in one setup. Hybrid mill-turn machines combine both turning and milling, so you can finish complex parts without moving them between machines.

Here is a table to help you decide:

• Turning is best for high-volume, identical round parts.

• Milling is best for custom or complex shapes.

Speed and Precision

You want your parts fast and accurate. Both cnc lathes and cnc mills give you high precision. Standard machines reach ±0.005" (0.13 mm) tolerance. Swiss lathes can go tighter, down to ±0.001" (0.025 mm). Surface finishes are smooth, usually 63 to 125 µin Ra. You can use special settings for even better finishes.

A cnc lathe often works faster for round parts. The workpiece spins, so you remove material steadily. This means short cycle times for turning. A cnc mill can use higher cutting speeds, especially for soft metals like aluminum. However, cycle times may be longer because the tool must move over more surfaces and make deeper cuts. You can adjust feed rates to balance speed and surface quality.

Tip: Both machines can reach high precision, but turning often gives a better finish on round parts.

Tooling and Costs

You need to think about tooling and workholding costs. A cnc lathe uses chucks to hold parts and a turret for tools. A cnc mill uses vises, clamps, and a range of end mills or router bits. Tool prices vary:

Workholding costs also change by machine:

Chucks are special for lathes, while vises and clamps fit mills. Multi-axis machines and hybrid setups cost more for both tooling and setup.

Operator training matters too. You need to learn different skills for each machine. Lathe training focuses on turning, spindle use, and tool changes. Milling training covers multi-axis movement, tool paths, and material choices. Many training programs teach both, but you must master each machine's unique steps.

Remember: More axes mean more programming and setup time, but also more flexibility.

Materials for CNC Lathe Machines and CNC Mills

Compatible Materials

You can use lots of materials in CNC lathe machines and CNC mills. Metals are used most often. Plastics and graphite are good for some parts too. Each material has special features for different jobs. Here is a table with popular choices:

Tip: Metals are strong. Plastics are light or have special uses.

Material Selection Tips

You should think about a few things before picking a material for your CNC project. The right choice helps you get good results and saves money. Here are some tips to help you:

• Check strength. Pick a material that can handle force during machining and when used.

• Look at hardness and wear resistance. Hard materials last longer but are harder to machine.

• Think about heat resistance. Some plastics get weak when hot.

• Decide if you need corrosion resistance. Stainless steel and some plastics do not rust or get damaged by chemicals.

• Consider weight. Lighter materials like aluminum or plastics are good for parts that need to be easy to move.

• Review machinability. Softer metals and plastics are easier and faster to machine. Hard metals like titanium need special tools.

• Make sure the material fits your budget. Some metals cost more and take longer to machine.

• Check for special properties. Copper carries electricity. Graphite handles high heat.

• Think about how the part will look. Some materials have a smooth finish or can be polished.

Note: Always pick a material that matches the job. This helps you avoid problems when machining and after the part is finished.

Choosing the Right CNC Machine

Application Factors

When you pick a cnc machine, think about what you want to make. Decide if you need lots of parts or special, detailed ones. The shape and size of your parts matter. Use this list to help you choose:

1. Set your goals. Do you want speed or more options?

2. Pick the machine type. Vertical, horizontal, or multi-axis work for different shapes.

3. Check the size. Make sure it fits your biggest part.

4. Look at tools and extras. Rotary tables and tool changers help with hard jobs.

5. Test the controls. Easy software saves you time.

6. Check for good support and easy fixes.

7. Plan your budget. Think about how much it will cost later.

You can compare cnc lathes and milling machines in this table:

Cost Considerations

You need to think about the price now and later. CNC mills cost more at first. They need more care because they are complex. You might need special workers to fix them. CNC lathes cost a lot at first too, but save money over time. They work faster for round parts and cost less to run. If you buy a good lathe, you can stop problems and save on repairs. It costs less to run a cnc lathe than a mill. This makes lathes better for lots of simple parts.

Tip: Always match your money plan with what you need to make. A pricier machine can save you money later if it fits your work.

Practical Recommendations

Try these tips to pick the best machine for your shop:

• Match the machine to your part size and needs.

• Pick a cnc controller your team knows.

• Check the voltage before you buy.

• Use automatic tool changers to work faster.

• Make sure the machine is strong enough for your materials.

• Find suppliers with good service, reviews, and skilled workers.

• Ask for old project examples and check for certificates.

• Plan for growth. Pick a machine that can grow with you.

• Focus on checking quality. Inspections help you avoid mistakes.

• Choose a supplier who helps fast and talks clearly.

Note: Making quick samples and always improving helps you stay ahead in a changing market.

Conclusion

You can spot some big differences between CNC lathes and CNC milling machines:

These differences change how you make things. Lathes are great for making lots of round parts fast. Mills help you make tricky shapes and details.

• Think about if you need very exact cuts or special shapes.

• Pick a machine that matches your part's shape and how many you need.

• Use simple designs and common sizes to save money and time.

Pick the CNC machine that helps you reach your project goals and makes your work easier.

FAQ

What is the main difference between a CNC lathe and a CNC milling machine?

You see the workpiece spin on a CNC lathe. The cutting tool stays still. On a CNC mill, the tool spins and moves. The workpiece does not move.

Can you use the same materials for both machines?

You can use metals like aluminum, steel, and brass on both machines. Plastics and graphite work too. Some hard metals need special tools.

Tip: Always check if your material fits the machine and tool type.

Which machine should you choose for making round parts?

You should pick a CNC lathe for round parts. It makes shafts, bushings, and threads quickly. You get smooth finishes and tight sizes.

• Best for: Shafts, tubes, threads

• Fast and repeatable

Do CNC machines need special training?

You need training for both machines. CNC mills use more axes and complex controls. CNC lathes focus on turning and threading. You learn safety, setup, and programming.

Note: Good training helps you avoid mistakes and keeps your shop safe.
