A Beginner's Guide to CNC Lathe Chuck Types

When you start using a lathe machine, you will notice several lathe chuck types. The most common are 3-jaw, 4-jaw, and 6-jaw chucks. Each type fits different needs in cnc lathe work. A lathe chuck holds your workpiece steady on the lathe machine. This makes sure your cnc projects stay accurate and safe. You need to know which chuck matches your part and job. The 3-jaw chuck leads in popularity because it centers parts quickly and fits many tasks. The 4-jaw chuck gives you more control for odd shapes. The 6-jaw chuck spreads pressure evenly, perfect for thin parts. Here's a quick look at their usage:

Understanding these choices helps you get the best results from your cnc lathe.

Key Takeaways

• Pick the right lathe chuck for your workpiece shape and size. This helps you work safely and get good results.

• Three-jaw chucks are quick and easy for round parts. Four-jaw chucks give better control for odd-shaped pieces.

• Collet chucks are very accurate and change fast for small, delicate parts. They work well for jobs that need high speed.

• Clean and oil your chuck often to keep it gripping strong. This stops slipping when you are machining.

• Make sure your chuck mounting system fits your lathe spindle. This keeps it secure and helps it run smoothly.

CNC Lathe Chuck Basics

What Is a Lathe Chuck?

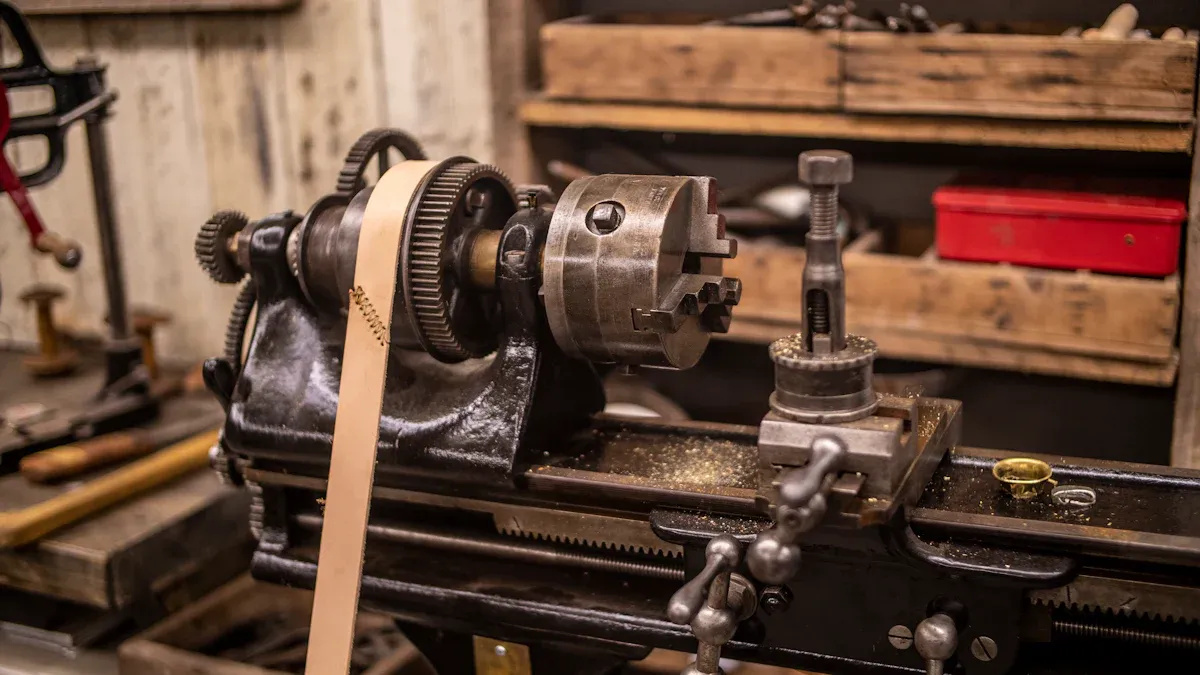

You use a lathe chuck to hold your workpiece steady on a lathe machine. It attaches directly to the spindle, which spins the part during machining. The chuck has jaws that grip the material tightly. These jaws can move together or separately, depending on the type. You find three-jaw chucks for round parts, four-jaw chucks for odd shapes, and collet chucks for small, precise pieces. Each type helps you handle different jobs on your cnc lathe.

Tip: Choose chucks with quick-change features to save time. Look for high clamping force and precise alignment to keep your workpiece stable.

The spindle is the heart of the lathe machine. It rotates and holds the chuck, letting you adjust speed for different materials. This setup gives you control over accuracy and finish. You can swap out chucks to match your project needs. The right chuck and spindle combination lets you work safely and efficiently.

Role in CNC Lathe Operations

Your cnc lathe chuck plays a key role in every machining task. It grips the workpiece so it does not slip or vibrate. This grip keeps your cuts accurate and your parts safe. The spindle and chuck work together to spin the material at high speeds. You get smooth surfaces and tight tolerances when everything stays balanced.

Here are some important points about cnc lathe chucks in action:

• The jaws clamp the workpiece firmly, stopping movement during turning.

• Clean contact surfaces between jaws and material help maintain accuracy.

• You should check for odd noises or issues during operation. Stop the lathe machine if you notice problems.

• Wear safety gear like goggles. Only mount or remove the chuck when the lathe machine is off.

• Regular cleaning and lubrication keep your cnc lathe chuck working well.

A good cnc lathe chuck ensures precision workholding. It keeps your part centered and stable, even at high spindle speeds. You can trust it to deliver consistent results, whether you work on simple or complex shapes.

Types of CNC Lathe Chucks

Three-Jaw Chucks

You see the three-jaw chuck a lot in cnc lathe shop. It has three jaws that move at the same time. This self-centering makes it easy to hold round or hexagonal workpieces. You do not need to adjust each jaw by itself. The three-jaw universal chuck gives a strong and even grip. It is good for turning, facing, and drilling. You can use it for parts bigger than 4 inches wide. The three-jaw chuck works for many jobs, so it is popular for general machining.

Key Features of Three-Jaw Chucks:

• Self-centering jaws make setup fast.

• Even clamping force helps with alignment.

• Strong design for daily work.

• Works for round and hexagonal parts.

Typical Uses:

• Turning and facing round pieces.

• Drilling jobs.

• Heavy and rough machining.

Note: The three-jaw chuck cannot hold square bars well. It is hard to center odd shapes. The jaws wear out faster because they move together.

Modern cnc lathe chucks like Royal's MTC™ mix three-jaw, collet, and I.D. gripping. You can switch how you grip parts without taking off the chuck. This saves time and makes you work faster.

Four-Jaw Chucks

You use the four-jaw chuck when you need more control. Each jaw moves by itself. You can hold odd-shaped or damaged workpieces. The four-jaw independent chuck lets you center parts by moving each jaw. You get a stronger grip for heavy work. It is good for non-round stock and parts that need tight sizes.

When to Use Four-Jaw Chucks:

• You need to hold odd or damaged parts.

• You want high accuracy and good centering.

• You do heavy roughing jobs.

• You work with special shapes.

Tip: Learning to use a four-jaw chuck is important. It helps you work with many types of parts on your lathe.

Collet Chucks

You pick a collet chuck for small and precise parts. It uses a collet that wraps around the workpiece. You get full contact and strong clamping. Collet chucks are best for parts up to 4 inches wide. They give great accuracy and tool space. You can change collets fast, which saves setup time. Collet chucks are good for high-speed cnc lathe work, up to 7,000 RPM.

Benefits of Collet Chucks:

• Super accurate (TIR as low as 0.0002").

• Fast collet changes (about ten seconds).

• Very strong for better finishes.

• Great grip for thin or tube parts.

• Best tool space for live tooling.

Common Applications:

• Used in aerospace, medical, and car industries.

• Bar feeding and high-speed work.

• Grinding, polishing, and checking parts.

Note: Collet chucks work for round, square, and hex stock. You can use expanding collets for inside gripping.

Magnetic Chucks

You use a magnetic chuck to hold metals like steel or iron. It uses magnets to grip the workpiece. You can machine five sides without moving the part. Magnetic chucks save setup time and lower vibration. They work best for thin or small metal parts. There are permanent, electromagnetic, and electro-permanent types.

Tip: Magnetic chucks do not work for metals like aluminum or brass. Use fine-pole chucks for thin parts.

Combination Chucks

You use combination chucks for many types of workpieces. They mix features from three-jaw, four-jaw, and collet chucks. You can switch between outside jaw gripping, collet gripping, and inside diameter gripping. This saves time and means you need fewer tools. Combination chucks help you hold odd-shaped parts, castings, and parts with special bosses.

Typical Uses:

• Machining hose fittings and elbow shapes.

• Holding muffler flanges and castings.

• Jobs that need custom jaws.

Note: Two-jaw chucks work for parts with two bosses. You can use soft jaws for custom fits.

Drill Chucks

You use drill chucks to hold drill bits in cnc lathes. They come in keyed, keyless, and mixed types. Keyed drill chucks give strong grip and accuracy. Keyless chucks tighten with hand force, so they are easy to use. You mount drill chucks with shanks, tapered mounts, or threaded mounts. Drill chucks are for drilling, tapping, reaming, and boring.

Common CNC Drilling Operations:

• Drilling and tapping.

• Spot drilling and boring.

• Countersinking and reaming.

• Center drilling and micro-drilling.

Tip: Drill chucks are not for turning or milling. Only use them for making holes.

Power Chucks

You use power chucks for fast, automatic clamping in cnc lathes. They use hydraulic chuck or air systems. You get strong and even clamping force. Power chucks help workers get less tired and stay safe. They are good for high-volume cnc work and automatic jobs. You can change jaws to fit different parts.

Advantages of Power Chucks:

• Fast, automatic clamping.

• Changeable jaws for different parts.

• Holds big and different workpieces.

• Makes mass production faster and more reliable.

Tip: Hydraulic chuck systems give strong grip and quick setup. Electric chuck options are also available for automatic control.

Lathe Chuck Mounting Systems

You must match the lathe chuck to the spindle with the right mounting system. Common systems are A1, A2, B1, and B2. These standards help you fit the chuck to the spindle nose. Always check if they match before buying a new chuck.

Tip: The right lathe chuck mounting keeps your workpiece safe and steady during cnc machining.

Lathe Chuck Types Comparison

Features and Differences

There are many types of chuck in CNC lathe work. Each type connects to the spindle in its own way. The three-jaw chuck uses a scroll gear. All jaws move together at once. This makes setup fast but only gives medium accuracy. The four-jaw chuck lets you move each jaw by itself. You can adjust each jaw for very accurate work. Collet chucks wrap tightly around the part. They grip well and let you change parts quickly. Magnetic chucks use magnets to hold metal parts. They do not need any clamping force. Combination chucks mix features from other chucks. Hydraulic chuck and pneumatic chuck use fluid or air. They clamp parts with strong and quick force.

You should pick the right chuck for your spindle and part shape. This helps you get the best results.

Pros and Cons

Each chuck type has good points and bad points. You need to know these before you choose.

• Three-jaw chuck

• Sets up fast, centers itself, good for round parts

• Gets less accurate over time, not for odd shapes

• Four-jaw chuck

• Very accurate, holds odd-shaped parts

• Takes longer to set up, needs more skill

• Collet chuck

• Grips well, changes parts fast, works at high speed

• Needs many collets, best for small parts

• Magnetic chuck

• Does not bend parts, sets up quickly

• Only works with ferrous metals

• Combination chuck

• Works for many shapes, very flexible

• Only medium accuracy, more parts to handle

• Hydraulic chuck

• Strong grip, clamps fast, safe for big jobs

• Costs more, does not fit all shapes

Self-centering chucks make setups faster. Independent jaws give you better accuracy.

Typical Applications

You use different chucks for different jobs. The spindle spins the chuck and your part. Collet chucks are best for small, precise parts in medical or airplane work. Jaw chucks hold big or heavy parts in factories. Quick-change chucks help you swap parts fast in busy shops. Hydraulic chuck is great for making many parts quickly. Magnetic chucks hold thin or delicate metal pieces. Some industries use vacuum fixtures for thin or non-metal parts. The spindle and chuck you pick depend on your part's size, shape, and speed.

Always check your spindle type before buying a new chuck. This keeps your setup safe and working well.

Choosing the Right Lathe Chuck

Workpiece Shape and Size

You have to pick a chuck that fits your part's shape and size. Three-jaw chucks hold round and smooth parts best. Four-jaw chucks are better for square or hexagonal pieces. Six-jaw chucks can hold odd shapes well. Big and heavy parts need bigger chucks. Small and light parts need smaller chucks. Spring collets work for parts under 3 inches wide. They are longer than jaw chucks, so they limit how far the machine can move. If you want to use most of your cnc lathe's stroke, jaw chucks are better.

Tip: Spring collets are best if your part size does not change. Jaw chucks are good if your part sizes change often.

Machining Requirements

Think about what your job needs before picking a chuck. If you need high accuracy, choose chucks that center parts well. Three-jaw and four-jaw chucks use jaws to hold and center your part. Collet chucks clamp the part all around for even more accuracy. High-speed cnc jobs need chucks that grip tight and do not slip. Quick-change and automatic chucks help you work faster and keep your work steady.

• Good workholding makes your parts better.

• Collet chucks are great for small, thin, or round parts.

• Three-jaw chucks are used for most cnc lathe jobs.

• Four-jaw chucks are best for odd or off-center parts.

• Quick-change chucks help busy shops work faster.

Practical Tips

Try these steps to pick the right chuck for your cnc lathe:

1. Find out your part's shape and size.

2. Pick a chuck that matches your part's shape.

3. Decide if you want high accuracy or fast setup.

4. Choose a chuck that fits how many parts you make.

5. Make sure your spindle and chuck mounting fit together.

Note: Self-centering chucks save time with round parts. Independent chucks help you hold odd shapes. Collet chucks are best for small or delicate parts.

Conclusion

You can see each CNC lathe chuck type has its own strengths. The table below shows key differences:

To choose the right chuck, follow these steps:

1. Match chuck size to your part.

2. Pick manual or power actuation for your job.

3. Check material and clamping force.

4. You can join machinist forums or read manuals for expert advice.

Always ask professionals if you need help with special projects.

FAQ

What is the difference between a self-centering and an independent chuck?

You use a self-centering chuck when you want all jaws to move together. It centers round parts fast. An independent chuck lets you move each jaw alone. You can hold odd shapes and adjust for high accuracy.

How do I know which chuck size fits my CNC lathe?

You check your spindle size and the workpiece diameter. The chuck must match both. Use this table for quick reference:

Can I use the same chuck for different materials?

You can use one chuck for many metals. For soft or thin parts, pick chucks that spread pressure evenly. Collet chucks work well for delicate materials. Always check grip strength before starting.

How often should I clean my lathe chuck?

You clean your chuck after every job. Remove chips and wipe jaws. Lubricate moving parts weekly. Regular cleaning keeps your chuck safe and accurate.

Why does my workpiece slip in the chuck?

You may have worn jaws or low clamping force. Check jaw alignment and tighten the chuck. Clean contact surfaces. If slipping continues, replace worn parts.
