Views: 0 Author: Site Editor Publish Time: 2025-10-09 Origin: Site

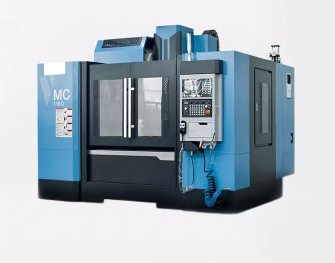

Mastering 5-Axis Machining starts with language. Without clear terms, precision suffers. This glossary bridges gaps for beginners and experts. In this article, you'll learn essential concepts, practical insights, and concise explanations to boost confidence and efficiency.
Understanding the core axes is the first step to mastering a 5-Axis Machine. Each axis plays a role in how tools move and cut materials. Let's break down these movements and their importance for precision machining.
The X, Y, and Z axes represent three linear movements. X moves left to right, Y goes front to back, and Z moves up and down. They form the foundation of every machining process. Without these three directions, a 5-Axis Machine would not function.
The A, B, and C axes are rotational. The A-axis rotates around X, the B-axis rotates around Y, and the C-axis rotates around Z. By combining linear and rotary axes, a 5-Axis Machine can cut complex parts from almost any angle.
In 3+2 machining, the part is tilted using rotary axes, then held in a fixed position. The tool works as if it’s on a traditional 3-axis machine. This method offers flexibility but not the full continuous motion of simultaneous 5-axis machining.
Here, all five axes move together at once. The cutting tool stays in constant contact with the part. This enables smoother finishes, faster production, and better accuracy for curved surfaces.
TCPC keeps the tool tip at the same programmed position, regardless of axis rotation. Operators don’t need to recalculate coordinates for every setup. This saves time and reduces programming errors across different machine configurations.
Trunnion-style machines rotate the table (A and C axes). They are rigid and ideal for heavy cuts. Swivel-rotate machines tilt the spindle head (B and C axes). These handle large, heavy parts because the table stays fixed. Each style has trade-offs in rigidity and accessibility.
Some believe more axes always equal better results. In reality, the benefit depends on geometry and setup. Also, axes can overlap in movement, but programming must avoid collisions. Understanding these limits helps prevent downtime and tool damage.
Axis | Type | Movement Direction | Example Use |
X | Linear | Left–Right | Cutting along width |
Y | Linear | Front–Back | Depth machining |
Z | Linear | Up–Down | Drilling holes |
A | Rotary | Around X | Tilting table for angled cuts |
B | Rotary | Around Y | Tilting spindle for deep cavities |
C | Rotary | Around Z | Rotating part for full contouring |
Tip: When evaluating a 5-Axis Machine for purchase, compare trunnion vs. swivel-rotate based on part weight and surface complexity.
Programming a 5-Axis Machine requires more than knowing axis movements. Software terms define how paths are generated, how tools move, and how precision is maintained across complex shapes. Here are the most important concepts explained in plain language.
G-Code is the language that tells a 5-Axis Machine what to do. Each command represents movement, speed, or function. In multiaxis machining, G-Code becomes more complex. The program must control simultaneous linear and rotary motion. For example, drilling a hole at an angle requires multiple axis instructions in one block of code.
When writing programs, we can describe tool movement two ways: rotary angles or tool vectors. Rotary angles specify A, B, or C values for rotation. Tool vectors use IJK coordinates that define tool orientation in 3D space. Vectors are machine-independent, which means one program can run on different machine types. This improves flexibility across shops with varied 5-axis setups.
NURBS are mathematical curves used in CAD and CAM. They help represent complex surfaces with smoothness and accuracy. In a 5-Axis Machine, NURBS-driven toolpaths allow cutters to follow natural curves. This minimizes sharp transitions and leaves a better surface finish, especially on aerospace or mold components.
RTCP keeps the tool tip locked at the programmed position, no matter how axes rotate. It makes programming simpler and more predictable. Inverse Time, on the other hand, defines movement speed by time rather than distance. It allows smoother synchronization of all axes but requires more advanced control. Both methods affect surface quality and cycle time in different ways.
Every 5-Axis Machine relies on geometry and motion control to cut parts accurately. If these concepts are misunderstood, the result can be tool damage, wasted time, or poor finishes. Here are the most critical terms you need to know.
A singularity is a point where the machine cannot calculate proper motion. It often happens when the rotary axes align in certain positions. At this point, the tool might spin without effective cutting, creating dead zones in the program. To avoid this, programmers tilt the tool slightly or shift the approach angle. Even a small adjustment helps the 5-Axis Machine maintain smooth motion.
Interpolation is how a CNC blends straight and curved moves. Linear interpolation moves the tool in a straight path, while circular interpolation creates arcs. In a 5-Axis Machine, contouring combines multiple axes for smooth, freeform surfaces. This is critical in aerospace blades, turbine components, and molds. The ability to interpolate across axes ensures parts have precise geometry and excellent surface finish.
Offsets tell the machine where the tool or workpiece starts. Tool length offsets account for cutter size, while work offsets set part positions. Zero points act as the origin for all movements. Without clear offsets and zero points, even the best 5-Axis Machine will produce errors. Establishing reliable reference systems saves rework, ensures consistency, and improves overall efficiency.
A 5-Axis Machine relies heavily on the right cutting tools. Each tool and parameter influences accuracy, speed, and surface finish. Understanding these terms ensures consistent results and longer tool life.
Ball nose end mills are designed with a rounded tip. They are ideal for sculpted or curved surfaces where flat tools would leave steps. In mold making or aerospace, they help achieve smooth contours. A 5-Axis Machine can tilt the tool for better contact, reducing tool marks and improving overall finish quality.
Tool length compensation (TLC) adjusts for differences in cutter size. Without it, even slight variations can create dimensional errors. By applying TLC, the control system accounts for actual tool length, ensuring precise depth and alignment. For multi-axis moves, this is critical because a small error multiplies when the tool tilts at compound angles.
Chip load measures the thickness of material removed per tooth per revolution. Feed rate is the speed at which the tool moves through the workpiece. Together, they define cutting efficiency and tool wear. In a 5-Axis Machine, balancing chip load and feed rate prevents overheating, extends tool life, and maintains consistent cut quality.
Stepover is the horizontal distance between tool passes. Depth of cut is how much material the tool removes vertically in one pass. Smaller stepovers improve surface finish but increase cycle time. Deeper cuts remove more material quickly but may cause deflection. In 5-axis machining, careful balance of these settings ensures efficient production without sacrificing quality.
Cut quality in a 5-Axis Machine depends not only on tools but also on secure workholding. Without proper fixtures, even the best programs fail. These terms explain how different systems keep parts stable and setups efficient.
Clamps provide quick and adjustable holding for irregular parts. Collets grip cylindrical workpieces with precision, making them common in high-speed cutting. Vises deliver stability for block or plate parts. In a 5-Axis Machine, selecting the right option ensures access to multiple sides while avoiding obstruction during tool rotation.
Rotary tables add an extra rotational axis, turning a standard setup into a multi-angle fixture. Trunnion fixtures tilt the part, allowing access to undercuts or deep features. Both are widely used in aerospace and mold industries where complex contours are standard. They expand the reach of a 5-Axis Machine while maintaining rigidity for heavy cuts.
Zero-point systems use reference modules that lock and unlock parts instantly. By standardizing reference points, shops can switch between jobs with minimal alignment. This saves hours of setup time in high-mix production. A 5-Axis Machine equipped with zero-point systems benefits from faster turnaround and reduced operator error.
Behind every 5-Axis Machine, software defines how designs become real parts. CAD, CAM, post processors, and simulation tools all play critical roles in reducing errors and improving efficiency. Let’s break down the key terms.
CAD (Computer-Aided Design) creates detailed 2D or 3D models. These files define geometry, tolerances, and dimensions. CAM (Computer-Aided Manufacturing) takes CAD data and builds toolpaths. For a 5-Axis Machine, CAM software must calculate complex, simultaneous axis moves. Together, CAD and CAM ensure that digital designs are ready for cutting.
A post processor converts generic CAM toolpaths into G-code tailored for a specific machine. Since every 5-Axis Machine may have unique axis setups, a reliable post processor is essential. Without it, toolpaths may cause errors or collisions. Shops often customize post processors to match their machines, ensuring accuracy and smoother production.
Simulation tools let users preview machining operations before pressing "start". They check for tool collisions, over-travel, and wasted motion. In 5-axis machining, where tool tilt and rotary axes move together, visualization is vital. It gives operators confidence that the part will be cut correctly without damaging tools or fixtures.
Producing accurate parts on a 5-Axis Machine requires more than axis control. Quality and inspection terms define how results are measured and verified. These concepts ensure that each finished part meets design intent and industry standards.
Tolerance is the allowable deviation from a specified dimension. In 5-axis machining, tolerances can reach as tight as ±0.001 mm (needs verification). Precision levels depend on tool calibration, machine rigidity, and proper programming. Even slight misalignments can ruin complex parts like turbine blades or medical implants. A clear understanding of tolerance ensures repeatable and reliable production.
Surface finish measures how smooth a machined surface is. Ra is the average roughness, while Rz measures the difference between the highest peak and lowest valley. A 5-Axis Machine, using shorter tools and smoother toolpaths, can achieve lower Ra values. For aerospace and medical applications, tight surface finish parameters directly affect performance, fatigue resistance, and wear life.
CMMs use probes to measure part dimensions against CAD models. They confirm accuracy on complex geometries where calipers or gauges fall short. For 5-axis parts with freeform surfaces, CMM inspection is essential. It ensures features align with design and that the surface finish meets required specs. Automated CMM integration further reduces inspection time in high-volume production.
Even the most advanced 5-Axis Machine faces challenges during production. Issues like deflection, thermal stress, and collisions can damage tools or compromise safety. Knowing these terms helps teams reduce risks and keep operations efficient.
Deflection occurs when the tool or spindle bends under cutting forces. In a 5-Axis Machine, deflection is amplified by angled cuts and long tools. This leads to dimensional errors and poor surface quality. Stiffness, or the machine’s ability to resist bending, keeps the tool path accurate. Heavy-duty frames, short cutters, and rigid fixtures minimize deflection.
Coolant controls heat during cutting, while cutting oils reduce friction. Both extend tool life and improve finishes. A 5-Axis Machine uses high-pressure coolant to flush chips from deep cavities. Oils are more common in slow, heavy-duty cuts where lubrication is critical. Choosing the right fluid prevents thermal distortion and keeps tolerances tight.
Collisions are one of the greatest risks in multiaxis machining. They can break tools, damage spindles, and even stop production. Safety software uses features like dynamic collision checking and virtual toolpath simulation. These tools ensure the 5-Axis Machine avoids clamping devices, fixtures, or nearby components. Operators can run complex jobs with more confidence and less downtime.
Mastering 5-Axis Machine terms helps boost precision and efficiency. This glossary supports programming, troubleshooting, and team training in daily operations. Readers can revisit it to strengthen skills and improve workflows. For deeper knowledge, explore advanced setup and optimization practices. Dalian Refine Tech provides reliable machining solutions with innovative features that enhance accuracy and long-term value.
A: A 5-Axis Machine moves tools on X, Y, Z plus two rotary axes for complex cutting.
A: Knowing terms helps avoid errors, improve efficiency, and train teams effectively.
A: It reduces setups, uses shorter tools, and delivers smoother contouring on parts.
A: It keeps the tool tip fixed, ensuring precision across different machine setups.
A: Offsets define accurate reference points, reducing errors during multi-axis operations.
