Are you unsure whether to use gear hobbing or gear milling for your manufacturing needs? Choosing the right method can impact efficiency and cost.

In this post, we’ll explore the key differences between gear hobbing and gear milling, including their processes, advantages, and limitations. By the end, you'll know which method is best for your specific requirements.


Introduction

Gear manufacturing plays a crucial role in many industries, from automotive to aerospace. Choosing the right method for producing gears can impact production efficiency, cost, and the quality of the final product. Two common gear production techniques are gear hobbing and gear milling.

Both methods involve cutting gears, but they do so in different ways. Gear hobbing uses a rotating helical tool called a hob to produce gear teeth, typically used for high-volume runs. Gear milling, on the other hand, employs a form cutter to cut each tooth individually, making it ideal for custom or low-volume gear production.

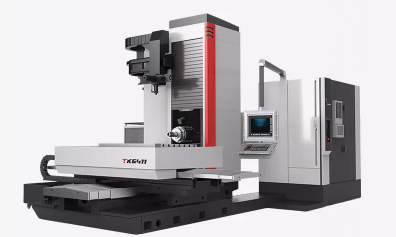

boring and milling machine


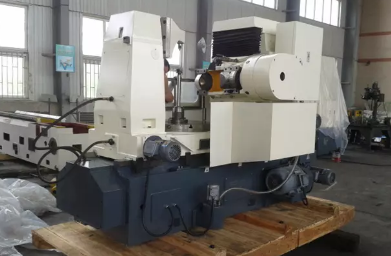

What is Gear Hobbing?

Gear hobbing is a machining process used to cut gears. It involves a tool called a hob, which is a rotating, helical-shaped cutter. This tool, combined with the rotation of the gear blank, cuts teeth into the material in a continuous motion.

Process Breakdown: Continuous Cutting with a Helical Hob

During gear hobbing, the hob and the gear blank rotate simultaneously. The hob feeds into the gear blank to create multiple teeth at once, which makes the process faster and efficient. The helical shape of the hob allows it to cut teeth progressively, resulting in smoother and more precise profiles.

Types of Gears Produced by Gear Hobbing

Gear hobbing is versatile and can produce various types of gears, including:

  • Spur gears: Common in applications where speed and power need to be transmitted in a straight line.

  • Helical gears: Often used in applications where quiet, smooth operation is needed.

  • Worm gears: Ideal for reducing speed or transmitting power at right angles.

  • Bevel gears: Used in right-angle drives.

Tools Used in Gear Hobbing

The primary tool used in gear hobbing is the helical hob. This tool has cutting edges that match the desired tooth profile. The hob rotates along with the workpiece, progressively cutting the teeth. The tool is specially designed to generate specific profiles, ensuring high accuracy and efficiency.

Key Advantages of Gear Hobbing

  • Efficiency for large production runs: Since multiple teeth are cut at once, gear hobbing is ideal for high-volume manufacturing.

  • Smooth tooth profiles for quieter operation: The continuous cutting action produces smooth gear teeth, which reduces noise during operation.

  • High accuracy and precision: Gear hobbing offers precise gear profiles, ensuring tight tolerances and consistent quality.

Limitations of Gear Hobbing

  • Not ideal for extremely large or small gears: Gear hobbing is most efficient for medium-sized gears. It's not the best option for gears that are too large or too small.

  • Tool wear and replacement needs: Over time, the hob tool can wear out, requiring replacement or maintenance to maintain production quality.


What is Gear Milling?

Gear milling is a machining process that uses a rotating, multi-edge cutter to create gear teeth. Unlike gear hobbing, where teeth are cut simultaneously, gear milling cuts each tooth individually. This makes it a more flexible but slower method of gear production.

Process Breakdown: Cutting Teeth Individually with a Multi-Edge Cutter

In gear milling, the cutter, known as a form cutter, rotates around the gear blank. After each tooth is cut, the gear blank is rotated slightly before the cutter moves in to cut the next tooth. This process continues until all the teeth are created. The form cutter used in gear milling has a tooth profile that matches the desired shape of the gear teeth, ensuring high precision in every cut.

Types of Gears Produced by Gear Milling

Gear milling is versatile and can produce a wide range of gears, such as:

  • Spur gears: Commonly used in applications where gears mesh directly in parallel.

  • Helical gears: Often chosen for their smooth and quiet operation.

  • Bevel gears: Used to transfer motion at right angles, typically in different machine setups.

  • Worm gears: Typically used for large reductions in speed.

Tools Used in Gear Milling

The primary tool used in gear milling is the form cutter. This cutting tool has a shape that corresponds directly to the gear tooth profile, allowing it to carve precise teeth. Unlike hobbing, where the hob continuously cuts the teeth, the form cutter is indexed to create each tooth individually.

Key Advantages of Gear Milling

  • High precision for custom gears: Gear milling allows for highly accurate cuts, making it ideal for custom gear designs.

  • Flexibility in gear design: This process offers more flexibility for designing gears of different types and sizes, including custom profiles.

  • Cost-effective for low-volume production: Because it doesn’t require specialized high-volume tools, gear milling is more affordable for smaller, custom gear runs.

Limitations of Gear Milling

  • Slower process compared to hobbing: Gear milling is generally slower, as each tooth is cut separately, requiring more time per gear.

  • Requires specific tooling for different gear profiles: Different gear types require different cutters, leading to additional costs and setup time for each unique gear profile.


Gear Hobbing vs Gear Milling: A Detailed Comparison

When it comes to choosing between gear hobbing and gear milling, understanding their differences is key to selecting the right process for your manufacturing needs. Let’s break down these two methods in terms of cutting process, efficiency, tooling, applications, and cost.

Cutting Process

The primary difference between gear hobbing and gear milling lies in how the teeth are cut. In gear hobbing, the gear hobbing machine uses a rotating helical cutter, or hob, to cut multiple teeth simultaneously. This continuous cutting action allows for the production of several teeth at once, making the process efficient for mass production.

On the other hand, gear milling machine cuts one tooth at a time using a form cutter. After each tooth is cut, the gear blank is indexed before the cutter moves back to cut the next tooth. This individual tooth cutting is slower but offers more precision and design flexibility.

Efficiency

Gear hobbing is the go-to method for large production runs due to its speed. The hob cuts several teeth in a single pass, which makes it faster than gear milling, especially for high-volume production.

Gear milling, however, is slower because each tooth is cut individually. This makes it less efficient for mass production but more adaptable for custom or low-volume orders, where precise control over each tooth profile is needed.

Tooling

In gear hobbing, the cutting tool is a helical hob, which is designed to progressively cut the teeth as both the hob and the gear blank rotate together. This method is highly efficient for standard gear profiles and large production runs.

Gear milling, in contrast, uses a form cutter, which is specifically shaped to match the gear tooth profile. The cutter must retract and reposition after each tooth is cut, which can make the process slower and more complex but allows for greater customization in gear design.

Applications

Gear hobbing is perfect for mass production, especially when you need to produce the same type of gear in large quantities. It works well for gears like spur, helical, and worm gears, where uniform teeth are required.

Gear milling, on the other hand, excels when you need custom gears or low-volume production runs. It’s ideal for making gears with specialized profiles or for producing unique sizes that may not be feasible with gear hobbing.

Cost

Gear milling tends to be more cost-effective for smaller, custom orders. It does not require as much investment in high-volume tooling, making it a better choice for low-volume, one-off jobs.

Gear hobbing, while efficient for high-volume production, typically involves a higher initial setup cost due to the need for a gear hobbing machine and specialized tooling for large-scale runs. However, the overall cost per unit tends to be lower when producing large quantities.

When to Choose Gear Hobbing

  • High-volume production: Gear hobbing is more efficient for producing large quantities of identical gears.

  • Production of smooth, quiet gears: The continuous cutting action results in smooth teeth, which reduces noise.

  • When time efficiency is critical: Gear hobbing’s speed makes it the best choice for tight production timelines.

When to Choose Gear Milling

  • Custom gear production: Gear milling is ideal for making unique or specialized gear profiles.

  • Low-volume or one-off gear runs: If you need small quantities of custom gears, milling is a cost-effective choice.

  • When flexibility in design is needed: Gear milling allows for more design freedom and the ability to create complex gear profiles.


Common Applications of Gear Hobbing and Gear Milling

Both gear hobbing and gear milling are essential in gear manufacturing, but they are typically suited for different industries and applications. Each process has its own strengths, making it the preferred choice for certain gear types and production volumes.

Industries That Use Gear Hobbing

Gear hobbing is widely used in industries where high-volume production is necessary. These include:

  • Automotive: Gear hobbing is used extensively to manufacture gears for vehicles, including gears for transmissions and engines.

  • Aerospace: In the aerospace industry, gear hobbing is used to create gears for aircraft engines and landing gear systems, where precision and reliability are critical.

  • Industrial Machinery: Gear hobbing is ideal for producing gears used in heavy-duty industrial equipment, such as conveyor systems and robotics.

These industries benefit from gear hobbing’s speed and ability to produce large quantities of gears with smooth, precise tooth profiles.

Industries That Use Gear Milling

Gear milling is more commonly used in industries where custom gear production is required or where low-volume production is typical. These include:

  • Custom Gear Manufacturing: When unique or specialized gears are needed, gear milling provides the flexibility to produce custom profiles and sizes.

  • Research and Development: In R&D environments, gear milling is often used to create prototype gears for testing and experimentation, as it allows for precise adjustments to the design.

  • Specialty Machinery: Manufacturers of specialized machines, such as custom robotics or test equipment, often rely on gear milling for producing custom gears that are not found in mass production.

Examples of Gear Types Suitable for Each Process

  • Gear Hobbing:

    • Spur Gears: Often used in applications where gears need to operate at high speeds with minimal noise.

    • Helical Gears: Commonly used in automotive and industrial machinery for their smoother, quieter operation.

    • Worm Gears: Ideal for applications requiring a high torque output in compact spaces.

  • Gear Milling:

    • Bevel Gears: Often used for right-angle drives in custom machinery.

    • Custom Gears: Gear milling is perfect for creating specialized gears that require unique profiles or custom specifications.

    • Face Gears: Used in unique mechanical systems where non-standard gear arrangements are needed.

Each of these processes shines in different contexts, offering significant advantages depending on the gear requirements and production scale.


Conclusion

Gear hobbing and gear milling differ in cutting processes, efficiency, tooling, and applications. Hobbing is faster for large runs, while milling is more flexible for custom gears. Choose hobbing for high-volume production and milling for low-volume, custom orders. Consider production volume, gear complexity, and cost when deciding which method suits your needs.


FAQs

1. What is the main difference between gear hobbing and gear milling?

  • The main difference lies in the cutting process—gear hobbing cuts multiple teeth simultaneously, while gear milling cuts one tooth at a time.

2. Which process is more cost-effective for high-volume production?

  • Gear hobbing is more cost-effective for high-volume production due to its continuous cutting action.

3. Can gear milling produce custom gears?

  • Yes, gear milling is ideal for producing custom gears due to its flexibility in design.

4. What industries typically use gear hobbing?

  • Gear hobbing is commonly used in industries like automotive, aerospace, and industrial machinery.

5. Which method is best for low-volume production runs?

  • Gear milling is more suitable for low-volume production runs or when custom gears are required.
